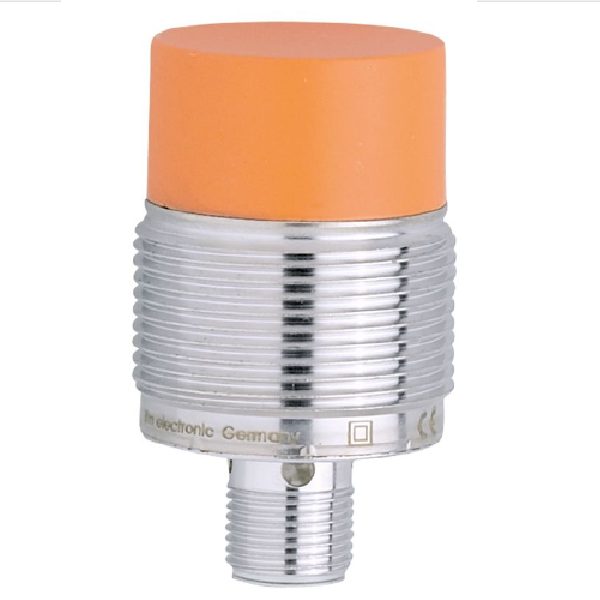

Cảm biến tiệm cận IFM IIS205

Cảm biến tiệm cận IFM IIS205
– Phạm vi hoạt động 22 mm. Non-flush
– Điện áp hoạt động 10…30 VDC
– 3 dây. Ngõ ra PNP, NO
– Đầu nối M12; coding: A

Cảm biến tiệm cận IFM IIS205

Cảm biến tiệm cận IFM IIS205 - detail

  • Điện áp làm việc: 10…30 VDC
  • 3 dây. Ngõ ra PNP, NO
  • Đầu nối M12; coding: A
  • Vật liệu: đồng thau; đai ốc khóa: đồng thau
  • 4 x LED màu vàng hiển thị trạng thái

Thông số kỹ thuật – Cảm biến tiệm cận IFM IIS205

Product characteristics

Electrical design PNP
Output function normally open
Sensing range[mm] 22
Housing threaded type
Dimensions[mm] M30 x 1.5 / L = 50

Application

Special feature Gold-plated contacts; Increased sensing range
Application Industrial applications / factory automation

Electrical data

Operating voltage[V] 10…30 DC
Current consumption[mA] < 10
Protection class II
Reverse polarity protection yes

Outputs

Electrical design PNP
Output function normally open
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 100
Switching frequency DC[Hz] 100
Short-circuit protection yes
Overload protection yes

Detection zone

Sensing range[mm] 22
Real sensing range Sr[mm] 22 ± 10 %
Operating distance[mm] 0…17.82
Increased sensing range yes

Accuracy / deviations

Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr] 3…15
Switch point drift[% of Sr] -10…10

Operating conditions

Ambient temperature[°C] -25…70
Protection IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 class B


MTTF[years] 1134
Embedded software included no
UL approval

Ta 0…40 °C
Enclosure type Type 1
power supply Limited Voltage/Current
UL Approval no. A001
File number UL E174191



Mechanical data

Weight[g] 98.2
Housing threaded type
Mounting non-flush mountable
Dimensions[mm] M30 x 1.5 / L = 50
Thread designation M30 x 1.5
Materials housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated

Displays / operating elements

Display

switching status 4 x LED, yellow



Accessories

Items supplied

lock nuts: 2



Remarks

Pack quantity 1 pcs.

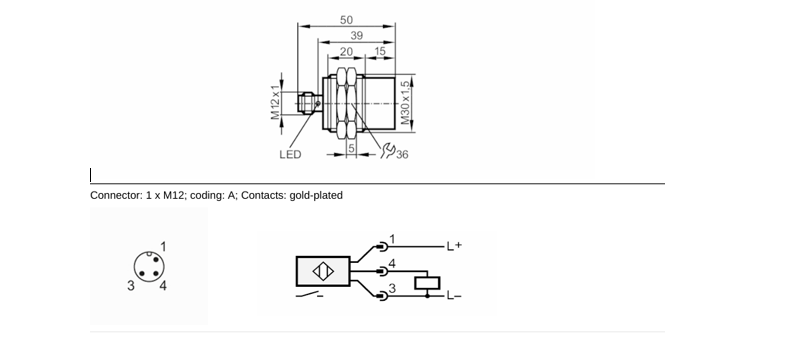

Electrical connection – plug

Connection Connector: 1 x M12; coding: A; Contacts: gold-plated

Datasheet Cảm biến tiệm cận IFM IIS205
