  9. Cảm biến tiệm cận IFM II5921

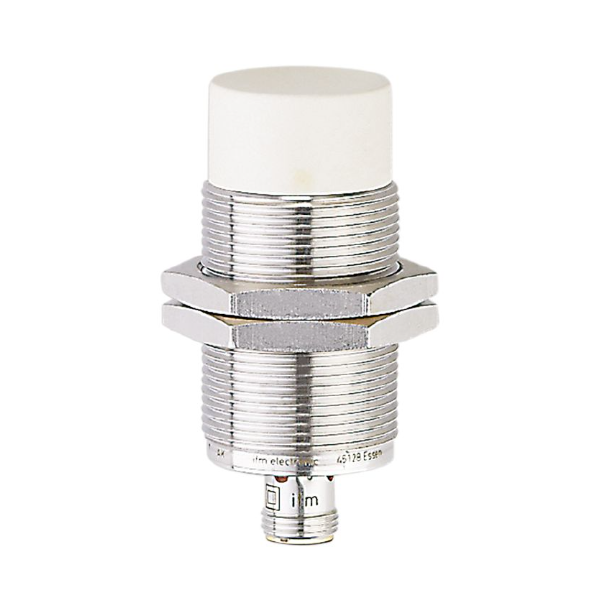

Cảm biến tiệm cận IFM II5921 - header

Cảm biến tiệm cận IFM II5921

Cảm biến tiệm cận IFM II5921

– Phạm vi hoạt động 22 mm. Non-flush
– Điện áp hoạt động 10…36 VDC
– Ngõ ra 2 dây/ 3 dây. PNP/NPN, NO
– Đầu nối M12. Coding: A

Cảm biến tiệm cận IFM II5921

Cảm biến tiệm cận IFM II5921 - detail

– Điện áp làm việc: 10…36 V AC/DC
– 2 dây. Ngõ ra PNP/NPN, NO
– Đầu nối M12. Coding: A
– 4 x 90° LED màu vàng hiển thị trạng thái
– Vật liệu: vỏ: thép không gỉ (316L/1.4404); Mặt cảm biến: LCP trắng; Cửa sổ LED: PEI; đai ốc khóa: đồng thau tráng đồng trắng
– Nhiệt độ môi trường: -40…85°C

Thông số kỹ thuật – Cảm biến tiệm cận IFM II5921

Product characteristics

Electrical design PNP/NPN
Output function normally open
Sensing range[mm] 22
Housing threaded type
Dimensions[mm] M30 x 1.5 / L = 70

Application

Special feature Gold-plated contacts; Increased sensing range
Application Use in mobile and harsh applications

Electrical data

Operating voltage[V] 10…36 DC
Current consumption[mA] < 10
Protection class II
Reverse polarity protection yes

Outputs

Electrical design PNP/NPN
Output function normally open
Max. voltage drop switching output DC[V] 2.5
Minimum load current[mA] 2; (only in 2-wire operation)
Max. leakage current[mA] 0.5; (only in 2-wire operation)
Permanent current rating of switching output DC[mA] 100
Switching frequency DC[Hz] 100
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes

Detection zone

Sensing range[mm] 22
Real sensing range Sr[mm] 22 ± 10 %
Operating distance[mm] 0…17.82
Increased sensing range yes

Accuracy / deviations

Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr] 1…20
Switch point drift[% of Sr] -10…10

Operating conditions

Ambient temperature[°C] -40…85
Protection IP 67; IP 69K

Tests / approvals

EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-5 Surge 0,5 kV mains line to line
EN 61000-4-6 HF conducted 10 V
EN 55011 class B


Vibration resistance
EN 60068-2-6 Fc 20 g (10…3000 Hz) / -20…50 °C
50 sweep cycles, 1 octave per minute, in 3 axes


Shock resistance
EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -40…85 °C


Continuous shock resistance
EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes / -20…50 °C


Salt spray test
EN 60068-2-52 Kb severity level 5 (4 test cycles)


MTTF[years] 1253
UL approval
Ta -25…70 °C
Enclosure type Type 1
power supply Limited Voltage/Current
UL Approval no. A052
File number UL E174191



Mechanical data

Weight[g] 125.4
Housing threaded type
Mounting non-flush mountable
Dimensions[mm] M30 x 1.5 / L = 70
Thread designation M30 x 1.5
Materials housing: stainless steel (316L/1.4404); Sensing face: LCP white; LED window: PEI; lock nuts: brass white bronze coated
Tightening torque[Nm] 80

Displays / operating elements

Display
switching status 4 x 90° LED, yellow



Accessories

Items supplied
lock nuts: 2



Remarks

Pack quantity 1 pcs.

Electrical connection – plug

Connection Connector: 1 x M12; coding: A; Contacts: gold-plated

Datasheet Cảm biến tiệm cận IFM II5921
