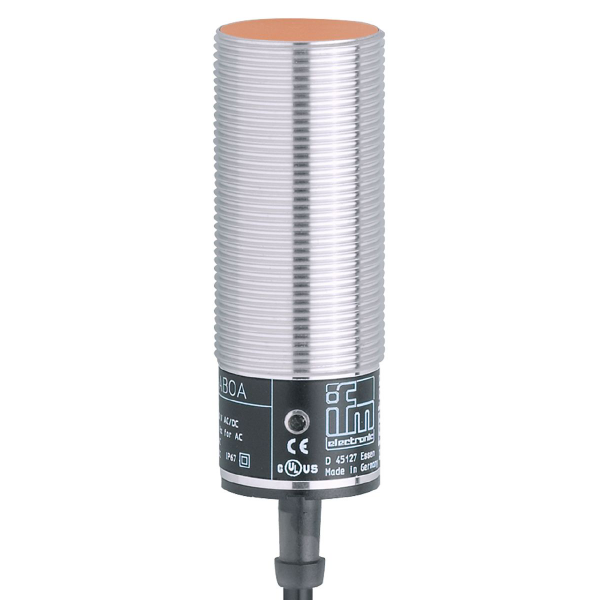

Cảm biến tiệm cận IFM II0011

Cảm biến tiệm cận IFM II0011

– Phạm vi hoạt động 10 mm. Flush
– Điện áp hoạt động 20…250V AC/DC
– 2 wire. Cáp PVC 2 m

Cảm biến tiệm cận IFM II0011

Cảm biến tiệm cận IFM II0011 - detail

– Điện áp làm việc: 20…250V AC/DC
– 2 wire. Cáp PVC 2 m
– Vật liệu: đồng thau tráng đồng trắng; mặt cảm biến: PBT
– 1 x LED màu vàng hiển thị trạng thái chuyển đổi
– Nhiệt độ môi trường: -25…80 °C

Thông số kỹ thuật – Cảm biến tiệm cận IFM II0011

Product characteristics

Output function	normally open
Sensing range[mm]	10
Housing	threaded type
Dimensions[mm]	M30 x 1.5 / L = 81

Electrical data

Operating voltage[V]	20…250 AC/DC
Protection class	II
Reverse polarity protection	no

Outputs

Output function	normally open
Max. voltage drop switching output DC[V]	6
Max. voltage drop switching output AC[V]	6.5
Minimum load current[mA]	5
Max. leakage current[mA]	2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC[mA]	250; (350 (…50 °C))
Permanent current rating of switching output DC[mA]	100
Short-time current rating of switching output[mA]	2200; (20 ms / 0,5 Hz)
Switching frequency AC[Hz]	25
Switching frequency DC[Hz]	50
Short-circuit proof	no
Overload protection	no

Detection zone

Sensing range[mm]	10
Real sensing range Sr[mm]	10 ± 10 %
Operating distance[mm]	0…8.1

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis[% of Sr]	1…15
Switch point drift[% of Sr]	-10…10

Operating conditions

Ambient temperature[°C]	-25…80
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2
EN 55011	class B

MTTF[years]

607

UL approval

Ta	0…40 °C
Enclosure type	Type 1
power supply	Hazardous voltage
File number UL	E174191

Mechanical data

Weight[g]	250
Housing	threaded type
Mounting	flush mountable
Dimensions[mm]	M30 x 1.5 / L = 81
Thread designation	M30 x 1.5
Materials	brass white bronze coated; sensing face: PBT

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Required protection

miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories

Items supplied

lock nuts: 2

Remarks

Remarks

Recommendation: Check the safe functioning of the unit after a short circuit.

Pack quantity

1 pcs.

Datasheet Cảm biến tiệm cận IFM II0011
