  9. Cảm biến tiệm cận IFM IGT205

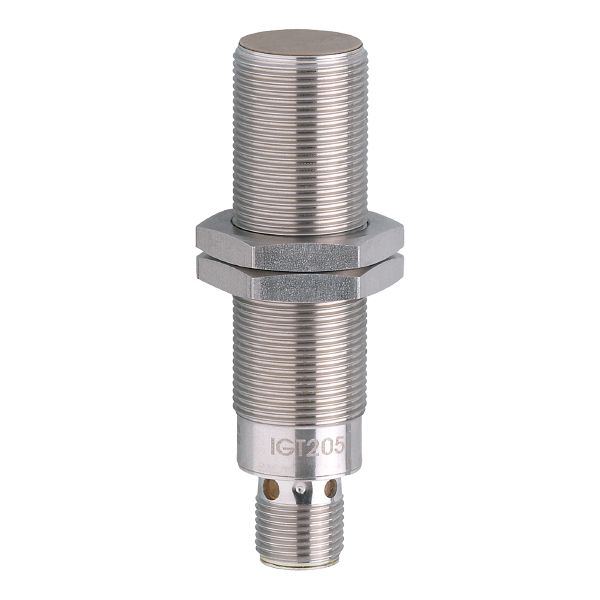

Cảm biến tiệm cận IFM IGT205

Cảm biến tiệm cận IFM IGT205

– Phạm vi hoạt động 8 mm. Flush
– Điện áp hoạt động 10…36 VDC
– 2 dây; 3 dây. Ngõ ra PNP/NPN, NO
– Đầu nối M12, coding: A

Cảm biến tiệm cận IFM IGT205

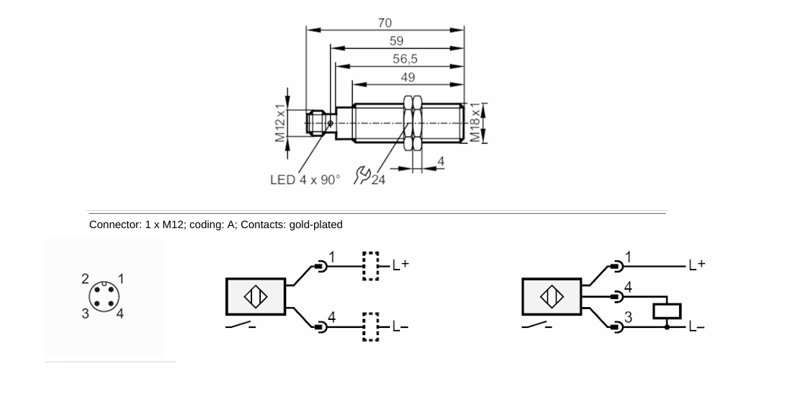

Cảm biến tiệm cận IFM IGT205 - detail

  • Điện áp làm việc: 10…36 VDC
  • 2 dây; 3 dây.Ngõ ra PNP/NPN, NO
  • Đầu nối M12, coding: A
  • Vật liệu: thép không gỉ (316L/1.4404); bề mặt cảm biến: PEEK; đai ốc: thép không gỉ
  • 4 x LED 90° màu vàng hiển thị trạng thái; hỗ trợ cài đặt: 1 x LED màu đỏ
  • Nhiệt độ môi trường: 0…100 °C

Thông số kỹ thuật – Cảm biến tiệm cận IFM IGT205

Product characteristics

  • Electrical design: PNP/NPN
  • Output function: normally open
  • Sensing range[mm]: 8
  • Housing: threaded type
  • Dimensions[mm]: M18 x 1 / L = 70

Application

  • Special feature: Gold-plated contacts; Increased sensing range; Optical setting aid
  • Application: regular cleaning processes

Electrical data

  • Operating voltage[V]: 10…36 VDC
  • Protection class: II
  • Reverse polarity protection: yes

Outputs

  • Electrical design: PNP/NPN
  • Output function: normally open
  • voltage drop switching output DC[V]: 2.8
  • Minimum load current[mA]: 2; (only in 2-wire operation)
  • leakage current[mA]: 0.5; (only in 2-wire operation)
  • Permanent current rating of switching output DC[mA]: 100
  • Switching frequency DC[Hz]: 400
  • Short-circuit protection: yes
  • Type of short-circuit protection: pulsed
  • Overload protection: yes

Detection zone

  • Sensing range[mm]: 8
  • Operating distance[mm]: 0…6.48
  • Increased sensing range: yes

Accuracy / deviations

  • Correction factor: steel: 1 / stainless steel: 0.8 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
  • Hysteresis[% of Sr]: 1…20

Operating conditions

  • Ambient temperature[°C]:0…100
  • Protection:IP 68; IP 69K; (“COP”)

Tests / approvals

EMC

  • EN 61000-4-2 ESD: 4 kV CD / 8 kV AD
  • EN 61000-4-3 HF radiated: 10 V/m
  • EN 61000-4-4 Burst: 2 kV
  • EN 61000-4-5 Surge: 0,5 kV line to line, Ri: 2 Ohm
  • EN 61000-4-6 HF conducted: 10 V
  • EN 55011: class B

MTTF[years]: 1418

UL approval

  • Ta: 0…40 °C
  • Enclosure type: Type 1
  • power supply: Limited Voltage/Current
  • File number UL: E174191

Mechanical data

  • Weight[g]: 54.8
  • Housing: threaded type
  • Mounting: flush mountable
  • Dimensions[mm]: M18 x 1 / L = 70
  • Thread designation: M18 x 1
  • Materials: threaded sleeve: stainless steel (316L/1.4404); sensing face: PEEK; lock nuts: stainless steel
  • Tightening torque[Nm]: 50

Displays / operating elements

Display

  • switching status: 4 x 90° LED, yellow
  • setting aid: 1 x LED, red

Optical setting aid: yes

Accessories

  • Items supplied: lock nuts:2

Remarks

  • Pack quantity: 1 pcs.

Electrical connection – plug

Connector: 1 x M12; coding: A; Contacts: gold-plated

Datasheet Cảm biến tiệm cận IFM IGT205
