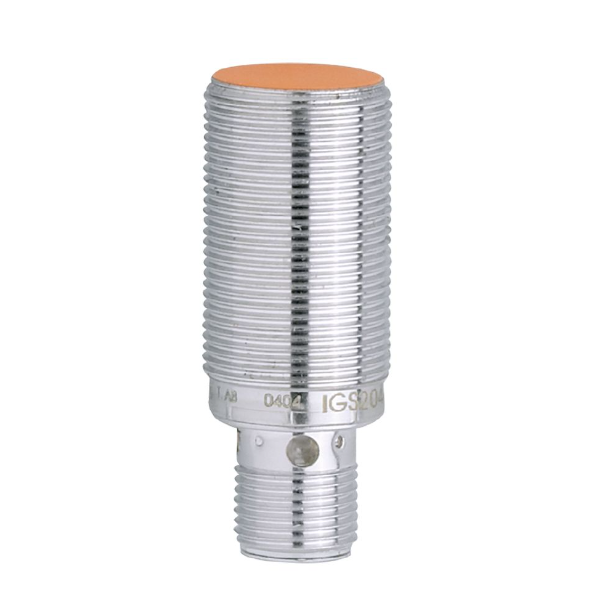

Cảm biến tiệm cận IFM IGS204

Cảm biến tiệm cận IFM IGS204

– Phạm vi hoạt động 8 mm. Kiểu flush
– Điện áp hoạt động 10…30 VDC
– 3 dây. Ngõ ra PNP, NO
– Đầu nối M12; coding: A

Cảm biến tiệm cận IFM IGS204

Cảm biến tiệm cận IFM IGS204 - detail

– Điện áp làm việc: 10…30 VDC
– 3 dây. Ngõ ra PNP, NO
– Đầu nối M12; coding: A
– Vật liệu: vỏ: đồng thau tráng đồng trắng; mặt cảm biến: cam PBT; Cửa sổ LED: PEI; đai ốc khóa: đồng thau tráng đồng trắng
– 4 X LED màu vàng hiển thị trạng thái chuyển đổi
– Nhiệt độ môi trường: -25…80 °C

Thông số kỹ thuật – Cảm biến tiệm cận IFM IGS204

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range[mm]	8
Housing	threaded type
Dimensions[mm]	M18 x 1 / L = 45

Application

Special feature	Gold-plated contacts; Increased sensing range
Application	Industrial applications / factory automation

Electrical data

Operating voltage[V]	10…30 DC
Current consumption[mA]	< 10
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC[V]	2.5
Permanent current rating of switching output DC[mA]	100
Switching frequency DC[Hz]	400
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range[mm]	8
Real sensing range Sr[mm]	8 ± 10 %
Operating distance[mm]	0…6.48
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr]	3…15
Switch point drift[% of Sr]	-10…10

Operating conditions

Ambient temperature[°C]	-25…70
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF[years]

1134

Embedded software included

UL approval

Ta	0…40 °C
Enclosure type	Type 1
power supply	Hazardous voltage
UL Approval no.	A003
File number UL	E174191

Mechanical data

Weight[g]	42.7
Housing	threaded type
Mounting	flush mountable
Dimensions[mm]	M18 x 1 / L = 45
Thread designation	M18 x 1
Materials	housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated

Displays / operating elements

Display

switching status

4 x LED, yellow

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity

1 pcs.

Electrical connection – plug

Connection

Connector: 1 x M12; coding: A; Contacts: gold-plated

Datasheet Cảm biến tiệm cận IFM IGS204
