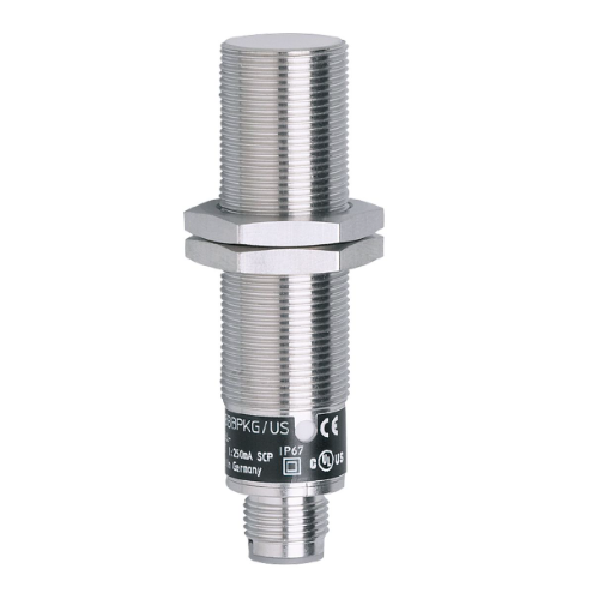

Cảm biến tiệm cận IFM IG5788
– Phạm vi cảm biến 8 mm. Flush
– Điện áp hoạt động:..30 VDC
– 3 dây. Ngõ ra PNP, NO
– Đầu nối M12, coding: A
– 4 x LED 90° màu vàng hiển thị trạng thái
Cảm biến tiệm cận IFM IG5788
Thông số kỹ thuật – Cảm biến tiệm cận IFM IG5788
| Electrical design | PNP |
| Output function | normally open |
| Sensing range[mm] | 8 |
| Housing | threaded type |

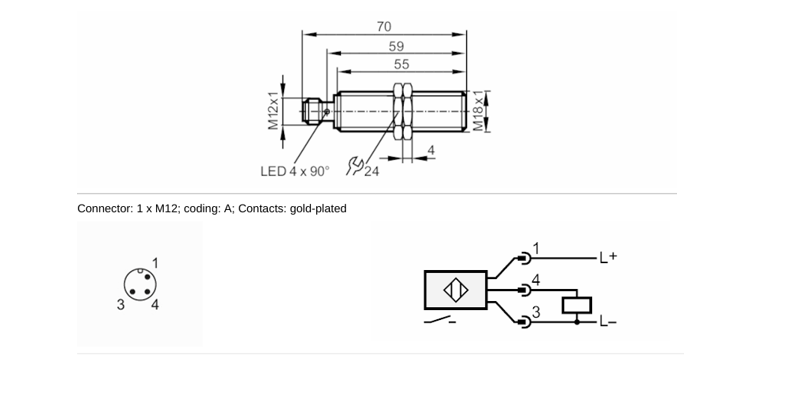

| Dimensions[mm] | M18 x 1 / L = 70 |
| Special feature | Gold-plated contacts; Increased sensing range |
| Operating voltage[V] | 10…30 DC |
| Current consumption[mA] | 10 |
| Protection class | II |
| Reverse polarity protection | yes |
| Electrical design | PNP |
| Output function | normally open |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 400 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Sensing range[mm] | 8 |
| Real sensing range Sr[mm] | 8 ± 10 % |
| Operating distance[mm] | 0…6.48 |
| Increased sensing range | yes |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 3…15 |
| Switch point drift[% of Sr] | -10…10 |
| Ambient temperature[°C] | -25…70 |
| Protection | IP 67; (“Coolant”) |
| EMC |
|
||||||||||
| MTTF[years] | 1083 | ||||||||||
| Embedded software included | no | ||||||||||
| UL approval |
|
| Weight[g] | 51.9 |
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] | M18 x 1 / L = 70 |
| Thread designation | M18 x 1 |
| Materials | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Display |
|
| Items supplied |
|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
