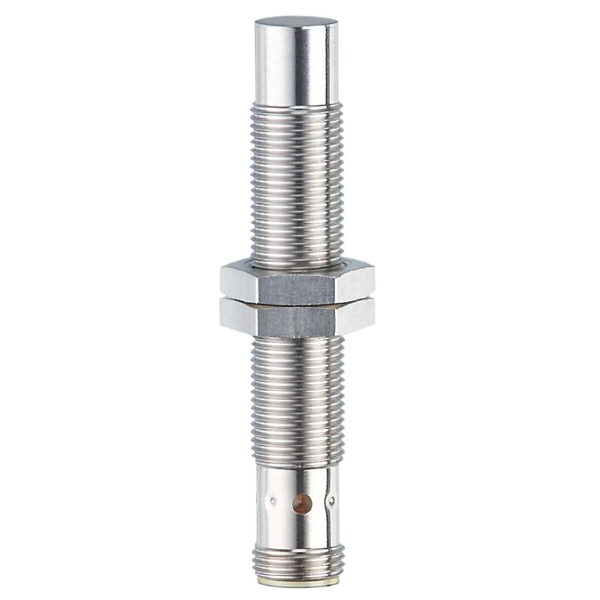

Cảm biến tiệm cận IFM IFT245
– Phạm vi hoạt động 6 mm. Non-flush
– Điện áp: 10…30 VDC
– 3 dây. Ngõ ra PNP, NO
– Đầu nối M12; coding: A
Cảm biến tiệm cận IFM IFT245
– Điện áp làm việc: 10…30 VDC
– 3 dây. Ngõ ra PNP, NO
– Đầu nối M12; coding: A
– Phạm vi hoạt động 6 mm. Non-flush
– Vật liệu: thép không gỉ (316L/1.4404)
– 4 x 90° LED màu vàng hiển thị trạng thái
– Nhiệt độ môi trường: 0…100 °C
Thông số kỹ thuật – Cảm biến tiệm cận IFM IFT245
Product characteristics
| Electrical design | PNP |
| Output function | normally open |
| Sensing range[mm] | 6 |
| Housing | threaded type |
| Dimensions[mm] | M12 x 1 / L = 70 |
Application
| Special feature | Gold-plated contacts; Increased sensing range; Full-metal housing | |
| Application | constant cleaning with aggressive cleaning agents; regular cleaning processes | |
| Pressure rating[bar] | 100 | |
| Note on pressure rating |
|
Electrical data
| Operating voltage[V] | 10…30 DC |
| Current consumption[mA] | < 25 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
| Output function | normally open |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | 250 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] | 6 |
| Real sensing range Sr[mm] | 6 ± 10 % |
| Operating distance[mm] | 0…4.9 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 1 / brass: 0.9 / aluminium: 0.8 / copper: 0.6 |
| Hysteresis[% of Sr] | 1…20 |
| Switch point drift[% of Sr] | -10…10 |
Operating conditions
| Ambient temperature[°C] | 0…100 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
|
||||||||||
| Impact resistance |
|
||||||||||
| MTTF[years] | 1265 | ||||||||||
| Embedded software included | yes | ||||||||||
| UL approval |
|
Mechanical data
| Weight[g] | 29.75 |
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] | M12 x 1 / L = 70 |
| Thread designation | M12 x 1 |
| Materials | housing: stainless steel (316L/1.4404); sensing face: stainless steel (316L/1.4404); lock nuts: stainless steel (316L/1.4404) |
| Tightening torque[Nm] | 15 |
| Full-metal housing | yes |
Displays / operating elements
| Display |
|
Accessories
| Items supplied |
|
Remarks
| Pack quantity | 1 pcs. |

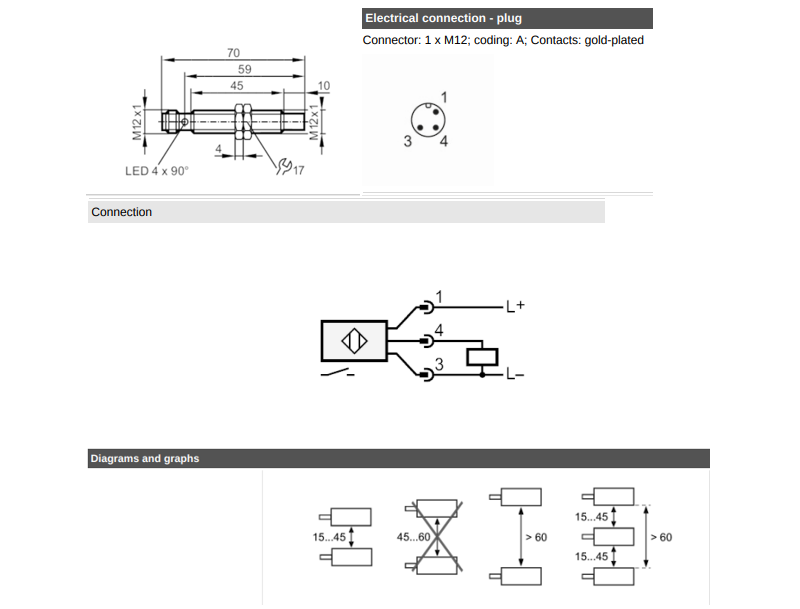

Electrical connection – plug
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
