Cảm biến tiệm cận IFM IFT205
– Phạm vi hoạt động 4 mm. Flush
– Điện áp hoạt động 10… 36 VDC
– 2 dây; 3 dây. Ngõ ra PNP/NPN, NO
– Đầu nối M12; coding: A
Cảm biến tiệm cận IFM IFT205
– Phạm vi hoạt động 4 mm. Flush
– Điện áp làm việc: 10…36 VDC
– 2 dây; 3 dây. Ngõ ra PNP/NPN, NO
– Đầu nối M12; coding: A
– Vật liệu: thép không gỉ (316L/1.4404); mặt cảm biến: PEEK
– 4 x 90° LED màu vàng hiển thị trạng thái chuyển đổi: 1 x LED màu đỏ hỗ trợ cài đặt
– Nhiệt độ môi trường: 0…100 °C
Thông số kỹ thuật – Cảm biến tiệm cận IFM IFT205
Product characteristics
| Electrical design | PNP/NPN |
| Output function | normally open |
| Sensing range[mm] | 4 |
| Housing | threaded type |
| Dimensions[mm] | M12 x 1 / L = 70 |
Application
| Special feature | Gold-plated contacts; Increased sensing range; Optical setting aid |
| Application | regular cleaning processes |
Electrical data
| Operating voltage[V] | 10…36 DC |
| Current consumption[mA] | < 10 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
| Output function | normally open |
| Max. voltage drop switching output DC[V] | 2.5 |
| Minimum load current[mA] | 2; (only in 2-wire operation) |
| Max. leakage current[mA] | 0.5; (only in 2-wire operation) |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] | 4 |
| Operating distance[mm] | 0…3.24 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 1…20 |
Operating conditions
| Ambient temperature[°C] | 0…100 |
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC |
|
||||||||||
| MTTF[years] | 1500 | ||||||||||
| UL approval |
|
Mechanical data
| Weight[g] | 29.9 |
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] | M12 x 1 / L = 70 |
| Thread designation | M12 x 1 |
| Materials | stainless steel (316L/1.4404); sensing face: PEEK |
| Tightening torque[Nm] | 15 |
Displays / operating elements
| Display |
|
||||
| Optical setting aid | yes |
Accessories
| Items supplied |
|
Remarks
| Remarks |
|
|
| Pack quantity | 1 pcs. |

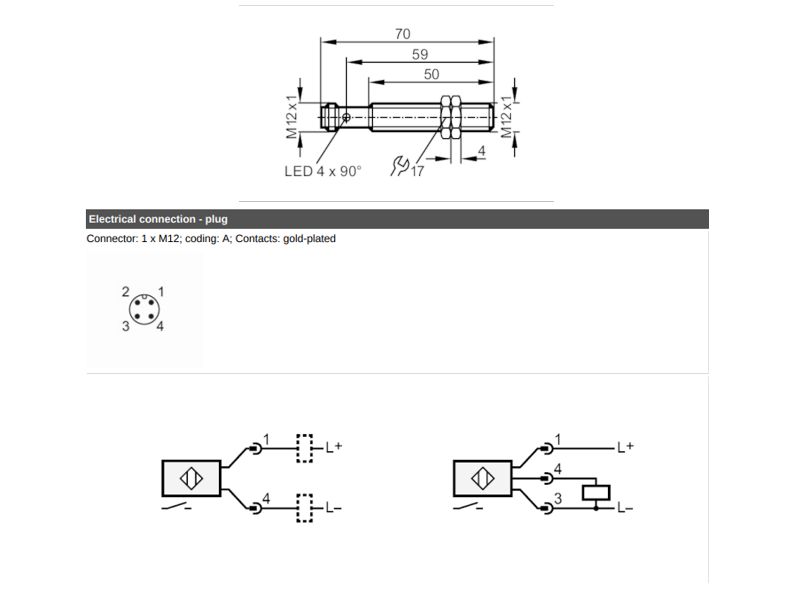

Electrical connection – plug
| Connector: 1 x M12; coding: A; Contacts: gold-plated |
