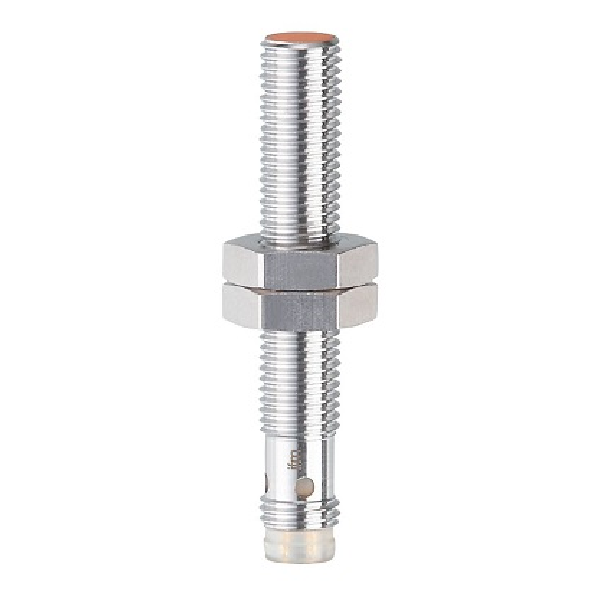

Cảm biến tiệm cận IFM IE5287

Cảm biến tiệm cận IFM IE5287

– Phạm vi hoạt động 2 mm. Flush
– Điện áp hoạt động 10…30 VDC
– 3 dây. Ngõ ra PNP, NO
– Đầu nối M8; coding: A

Cảm biến tiệm cận IFM IE5287

Cảm biến tiệm cận IFM IE5287 - detail

  • Điện áp làm việc: 10…30 VDC
  • 3 dây. Ngõ ra PNP, NO
  • Đầu nối M8; coding: A
  • Phạm vi hoạt động 2 mm. Flush
  • Vật liệu: đồng thau; bề mặt cảm biến: LCP
  • 4 x LED màu vàng hiển thị trạng thái
  • Nhiệt độ môi trường: -25…70 °C

Thông số kỹ thuật – Cảm biến tiệm cận IFM IE5287

Product characteristics

Electrical design PNP
Output function normally open
Sensing range[mm] 2
Housing threaded type
Dimensions[mm] M8 x 1 / L = 50

Application

Special feature Increased sensing range

Electrical data

Operating voltage[V] 10…30 DC
Current consumption[mA] < 10
Protection class III
Reverse polarity protection yes

Outputs

Electrical design PNP
Output function normally open
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 100
Switching frequency DC[Hz] 1300
Short-circuit protection yes
Overload protection yes

Detection zone

Sensing range[mm] 2
Real sensing range Sr[mm] 2 ± 10 %
Operating distance[mm] 0…1.6
Increased sensing range yes

Accuracy / deviations

Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr] 1…20
Switch point drift[mm] -10…10

Operating conditions

Ambient temperature[°C] -25…70
Protection IP 65; IP 67; (with ifm socket duly screwed on)

Tests / approvals

EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 class B


MTTF[years] 1379
Embedded software included yes
UL approval
Ta -25…70 °C
Enclosure type Type 1
power supply Limited Voltage/Current
UL Approval no. A017
File number UL E174191



Mechanical data

Weight[g] 16
Housing threaded type
Mounting flush mountable
Dimensions[mm] M8 x 1 / L = 50
Thread designation M8 x 1
Materials brass white bronze coated; sensing face: LCP orange; LED window: PPSU; lock nuts: brass white bronze coated
Tightening torque[Nm] A = 5 mm: 1,5 Nm; B = 2 Nm

Displays / operating elements

Display
switching status 4 LED, yellow



Accessories

Items supplied
lock nuts: 2



Remarks

Pack quantity 1 pcs.

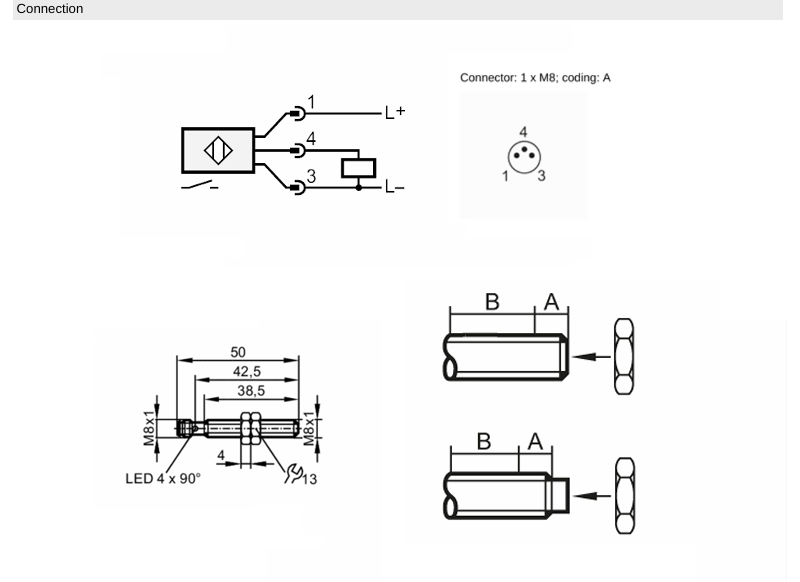

Electrical connection – plug

Connection Connector: 1 x M8; coding: A

Datasheet Cảm biến tiệm cận IFM IE5287
