Cảm biến sợi quang E3X-ZD11 2M của Omron
– L-ON/D-ON indicator, Teach mode indicator, Operation mode indicator
– Ngõ ra NPN 50 mA max.; light on/ dark on pushbutton switch
– Nguồn cấp 12-24 VDC +/-10%
– Nguồn sáng: Red AIGALNN LED (620nm)
– IP50
Cảm biến sợi quang E3X-ZD11 2M của Omron
– L-ON/D-ON indicator, Teach mode indicator, Operation mode indicator
– Ngõ ra NPN 50 mA max.; light on/ dark on pushbutton switch

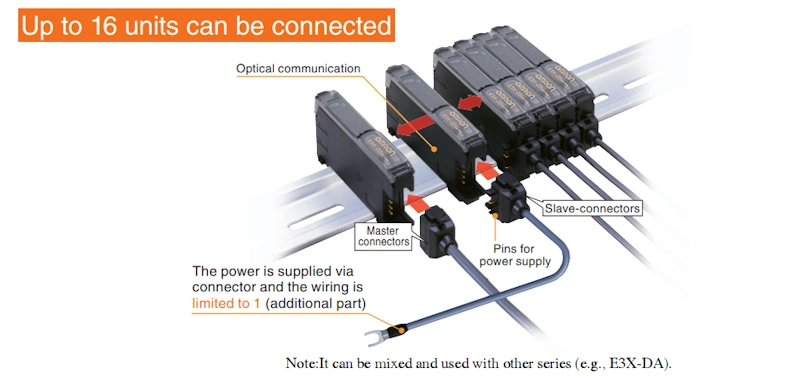

– Có thể ghép liên kết đến 16 unit trên 1 chuổi
– Nguồn cấp 12-24 VDC +/-10%

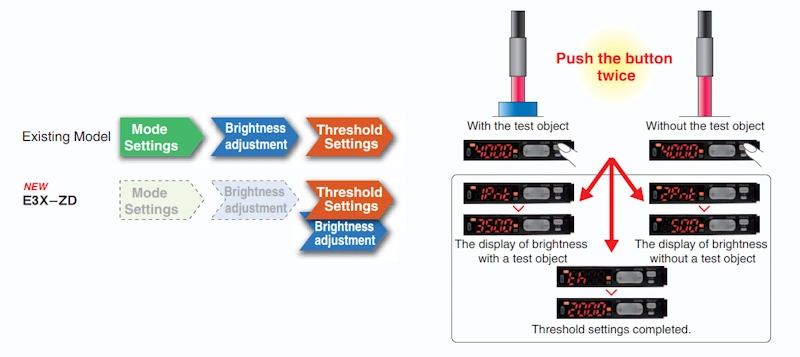

– Cài đặt dễ dàng

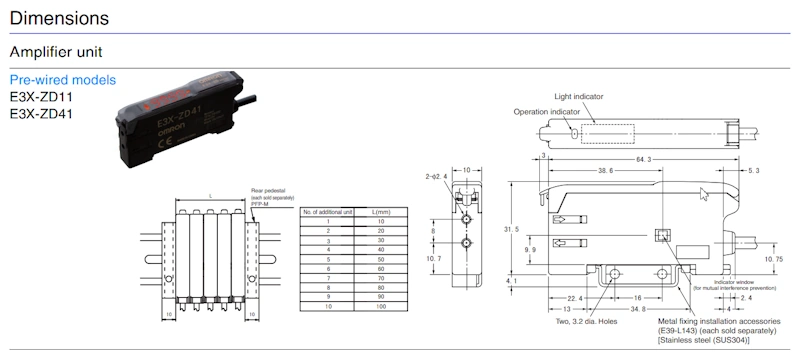

Kích thước
Thông số kỹ thuật – Cảm biến sợi quang E3X-ZD11 2M của Omron
| Item /Model | E3X-ZD[] | |
| Light source (emitted wavelength) |
Red AIGALNN LED (620nm) | |
| Power supply voltage | DC12 to 24V±10% Ripple (P-P) 10% max. | |
| Power consumption (current consumption) |
960mW max. (supply voltage 24V with current consumption 40mA max.) | |
| Control output | Open collector output (NPN or PNP) Load current 50mA max. (Residual voltage 1.5V max.) L-ON and D-ON pushbutton switch |
|
| Response time | Action•Reset: 200μs maximum for each | |
| Sensitivity adjustment | Teaching (With or without workpiece/Automatic) or manual adjustment | |
| Protection circuit | Power reverse protect, output short-circuit protection, reverse output polarity protection | |
| Digital display | Light power/Threshold 0 to 9999 | |
| Indicator (Orange) | L-ON/D-ON indicator, Teach mode indicator, Operation mode indicator | |
| Mutual interference prevention |
Light parallel (5 sets)* | |
| Vibration resistance(destruction) |
10 to 55Hz, 1.5mm double amplitude for 2h each in X, Y, and Z directions | |
| Shock resistance(destruction) |
500m/s2 for 3 times each in X, Y, and Z directions | |
| Ambient illumination | Incandescent lamp: 10,000lx max., Sunlight: 20,000lx max. | |
| Ambient temperature | Operation: Group of 1 to 3 Amplifiers: -25 to +55℃ (with no condensation) Group of 4 to 11 Amplifiers: -25 to +50℃ (with no condensation) Group of 12 to 16 Amplifiers: -25 to +45℃ (with no condensation) Storage: -30 to +70℃(with no condensation) |
|
| Ambient humidity | Operation and storage: 35 to 85%RH(with no condensation) | |
| Insulation resistance | 20MΩ minimum (DC500V) | |
| Dielectric strength | AC 1,000V 50/60Hz 1min | |
| Degree of protection | IEC60529 IP50 (with the protective cover) | |
| Weight (packaged state) | Pre-wired models: Approx. 100g, Simplified wiring plug-in models: Approx. 40g | |
| Materials | Case | Polybutylene phthalate (PBT) |
| cover | Polycarbonate (PC) | |
| Accessories | User Manual | |
