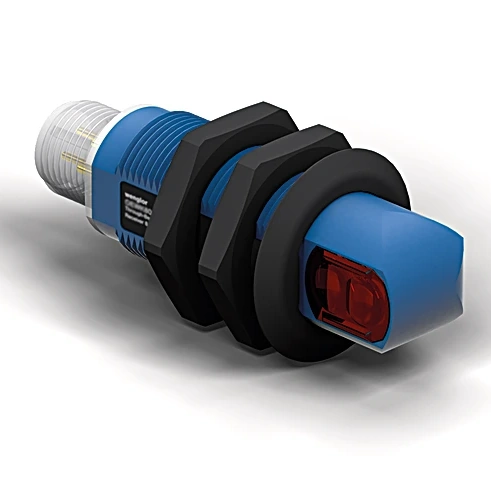

Cảm biến phản xạ gương OLWK503A0002 của Wenglor
– Ngõ ra PNP/ NPN/ Push-pull; NC/ NO selectable
– Tần số làm việc: 700 Hz
– Nguồn cấp 24 VDC
– Ánh sáng đỏ
– Khoảng cách làm việc: 5000 mm
– Connector M12, 4 chân
– IP67

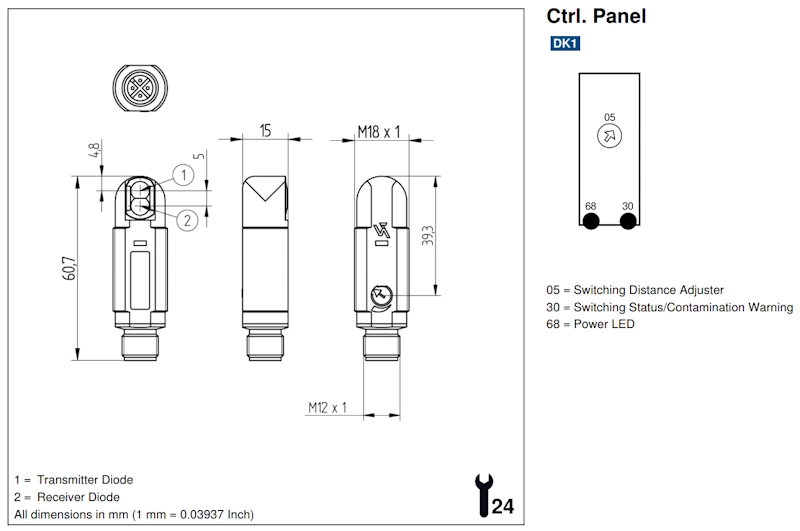

Kích thước
Optical Data |
|
|---|---|
| Range | 5,000 mm |
| Reference Reflector/Reflector Foil | RQ100BA |
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 5 ° |
| Light Spot Diameter | see Table 1 |
| Two-Lens Optic | yes |
Electrical Data |
|
|---|---|
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 700 Hz |
| Switching frequency (speed mode) | 900 Hz |
| Response Time | 0.7 ms |
| Response time (speed mode) | 0.6 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Interface | IO-Link V1.1 |
| Protection Class | III |
Mechanical Data |
|

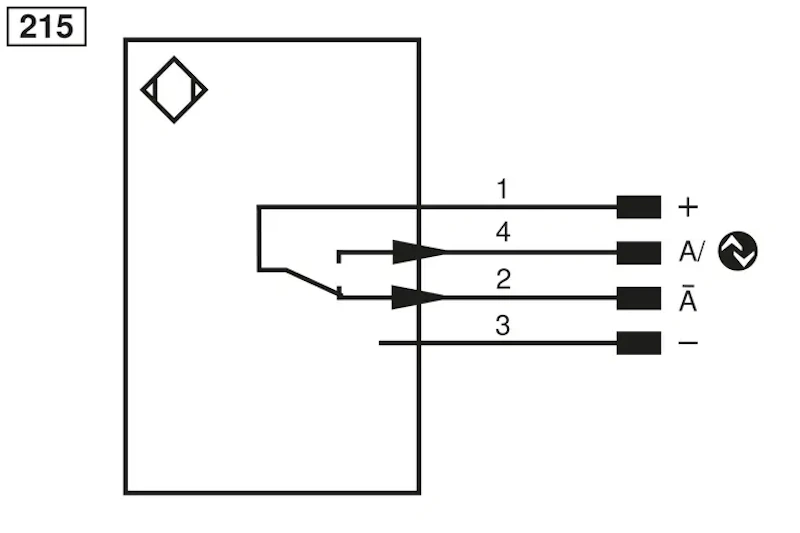

|---|---|
| Setting Method | Potentiometer |
| Housing Material | Plastic, ABS/GF |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 16 g |
Safety-relevant Data |
|
|---|---|
| MTTFd (EN ISO 13849-1) | 2,953.75 a |
General Data |
|
|---|---|
| Scope of delivery | 1 × mounting console |
| Packaging unit | 1 Piece |
Output |
|
|---|---|
| IO-Link | yes |
| PNP NC, PNP NO | yes |
Adjustable parameters |
|
|---|---|
| Output | Push-pull NPN PNP |
| Circuit | NC NC+NO NO |
| Other parameters | Off-delay On-delay Mode of operation Error output Switching hysteresis Emitted light |
