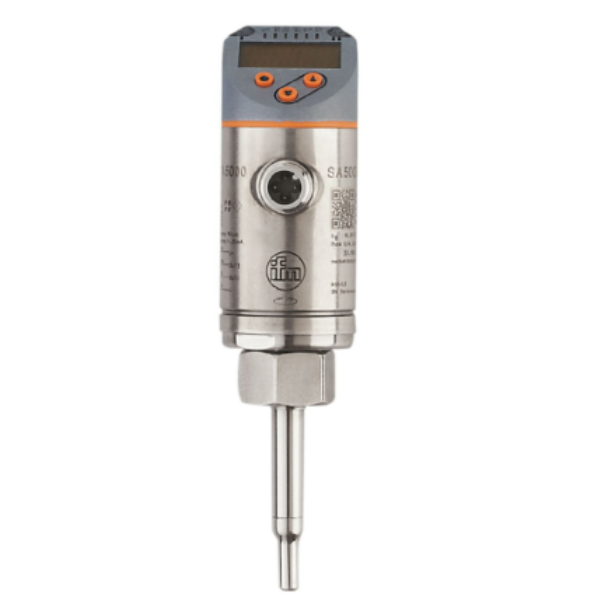

Cảm biến đo lưu lượng IFM SA5000 - header

Cảm biến đo lưu lượng IFM SA5000

Cảm biến đo lưu lượng IFM SA5000

– Kết nối process: kết nối ren M18 x 1.5 ren trong.
– Operating voltage: 18…30 VDC.
– Ngõ ra: Electrical design PNP/NPN.
– Ngõ ra tín hiệu Analogue: 4…20 mA (scalable).
– IO-Link interface.
– Phạm vi hoạt động: 0.04…3 m/s (chất lỏng) và 0…100 m/s (chất khí).
– Output function: NO / NC; (parameterisable).
– Kích thước [mm]: Ø 34 / L = 142.
– Vật liệu: thép không gỉ (316L/1.4404); thép không gỉ (301/1.4310); PBT-GF20; PBT-GF30. Gioăng đệm: FKM.

Cảm biến đo lưu lượng IFM SA5000 là một thiết bị đo lưu lượng chất lỏng hoặc khí, chủ yếu được sử dụng trong các hệ thống công nghiệp để kiểm soát và giám sát dòng chảy

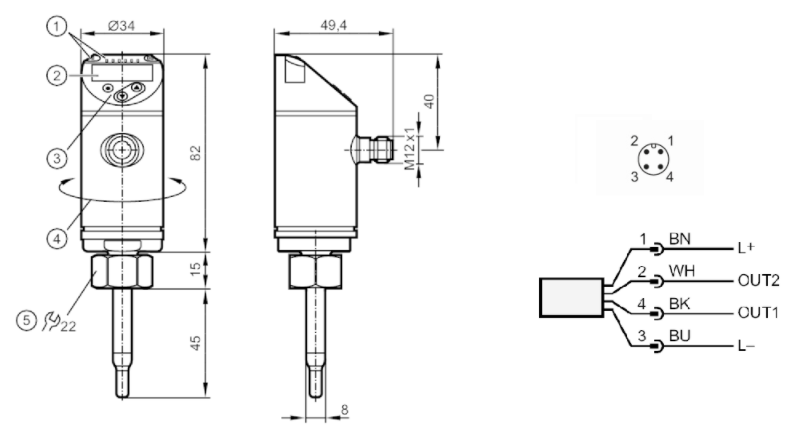

Cảm biến đo lưu lượng IFM SA5000 - detail

  • Connection Connector: 1 x M12
  • Kích thước [mm]: Ø 34 / L = 142.
  • Operating voltage: 18…30 VDC.
  • Vỏ thép không gỉ chắc chắn, sử dụng trong môi trường công nghiệp khắc nghiệt.

Thông số kỹ thuật – Cảm biến đo lưu lượng IFM SA5000

Product characteristics

Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
Process connection threaded connection M18 x 1,5 internal thread

Application

Special feature Gold-plated contacts
Media water; glycol solutions; air; oils
Note on media
low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C)
high-viscosity oils with viscosity: > 40 mm²/s (40 °C)


Medium temperature[°C] -20…90
Pressure rating[bar] 100
Pressure rating[MPa] 10
MAWP (for applications according to CRN)[bar] 100

Electrical data

Operating voltage[V] 18…30 DC
Current consumption[mA] < 100
Protection class III
Reverse polarity protection yes
Power-on delay time[s] 10
Measuring principle calorimetric

Inputs / outputs

Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs 2
Output signal switching signal; analogue signal; frequency signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 250
Number of analogue outputs 1
Analogue current output[mA] 4…20; (scalable)
Max. load[Ω] 350
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Frequency of the output[Hz] 0…1000

Measuring/setting range

Probe length L[mm] 45
Operating mode relative; absolutely liquid; absolutely gaseous; (absolute: reference measurement recommended; Factory setting: relative)



Temperature monitoring
Measuring range[°C] -20…90
Resolution[°C] 0.2



Liquid media – absolute operating mode
Setting range[m/s] 0.04…3
Greatest sensitivity[m/s] 0.04…3



Liquid media – relative operating mode
Setting range[m/s] 0.04…6
Greatest sensitivity[m/s] 0.04…3



Gases – operating mode “absolute”
Setting range[m/s] 0…100
Greatest sensitivity[m/s] 30…100



Gases – operating mode “relative”
Setting range[m/s] 0…200
Greatest sensitivity[m/s] 30…100

Accuracy / deviations

Temperature drift[cm/s x 1/K] 0,003 m/s x 1/K (< 20 °C; > 70 °C)
Temperature gradient[K/min] 100



Absolute operating mode
Repeatability 0,05 m/s; (water; flow velocity: 0,05…3 m/s)



Relative operating mode
Accuracy ± (7 % MW + 2 % MEW); (for relative mode in the range of maximum sensitivity under the following conditions:; water: 20…70 °C; inlet length: 1.5 m; DN25 (DIN 2448); mounting position according to instructions; Accuracy can differ for other media and mounting positions.)
Repeatability 0,05 m/s; (water; flow velocity: 0,05…3 m/s)



Temperature monitoring
Temperature drift ± 0,005 K/°C
Accuracy[K] ± 0,3 / ± 1; (water; flow velocity: 0,3…3 m/s / air; flow velocity: > 10 m/s)

Response times

Response time[s] 0.5; (T09; water; glycol: 0,8 s; air: 7 s; oil: 1,8 s; each T09)



Temperature monitoring
Dynamic response T05 / T09[s] 1,5 (T09); (water; flow velocity: 0,3…3 m/s)

Software / programming

Parameter setting options hysteresis / window; normally open / normally closed; switching logic; current/frequency output; medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour

Interfaces

Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode yes
Required master port type A
Process data analogue 2
Process data binary 2
Min. process cycle time[ms] 3
Supported DeviceIDs
Type of operation DeviceID
Factory setting / ModE = (REL) 533
ModE = (GAS) 547
ModE = (LIQU) 540



Operating conditions

Ambient temperature[°C] -40…80
Storage temperature[°C] -40…100
Protection IP 65; IP 67

Tests / approvals

EMC
DIN EN 60947-5-9


Shock resistance
DIN EN 60068-2-27 50 g (11 ms)


Vibration resistance
DIN EN 60068-2-6 20 g (10…2000 Hz)


MTTF[years] 132
UL approval
UL Approval no. I003
File number UL E174189



Mechanical data

Weight[g] 257
Housing cylindrical
Dimensions[mm] Ø 34 / L = 142
Materials stainless steel (316L/1.4404); stainless steel (301/1.4310); PBT-GF20; PBT-GF30
Materials (wetted parts) stainless steel (316L/1.4404); Gasket: FKM
Process connection threaded connection M18 x 1,5 internal thread
Probe diameter[mm] 8
Installation length EL[mm] 45

Displays / operating elements

Display
Display unit 6 x LED, green (%, m/s, l/min, m³/h, °C, 10³)
switching status 2 x LED, yellow
measured values alphanumeric display, red/green 4-digit



Remarks

Remarks
MW = measured value
MEW = Final value of the measuring range


Pack quantity 1 pcs.

Electrical connection

Connection Connector: 1 x M12; coding: A; Contacts: gold-plated

Datasheet Cảm biến đo lưu lượng IFM SA5000
