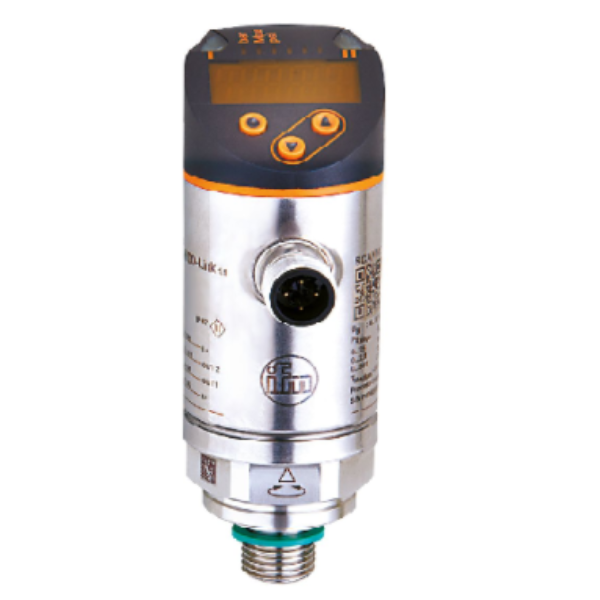

Cảm biến áp suất IFM PN7594 - header

Cảm biến áp suất IFM PN7594

Cảm biến áp suất IFM PN7594

– Kết nối Process: kết nối ren G 1/4 ren ngoài ren trong, M5.
– Operating voltage: 18…30 VDC; (to SELV/PELV).
– Ngõ ra: Electrical design PNP/NPN.
– Output function: NO / NC; (parameterisable).
– Phạm vi đo: -1…10 bar.
– IP65; IP67.
– Vật liệu: thép không gỉ (316L/1.4404); gốm sứ ceramic; FKM; PBT+PC-GF30; PBT-GF20
– Connector: 1 x M12

Cảm biến áp suất IFM PN7594 là một thiết bị chuyên dụng dùng để đo áp suất trong các ứng dụng công nghiệp

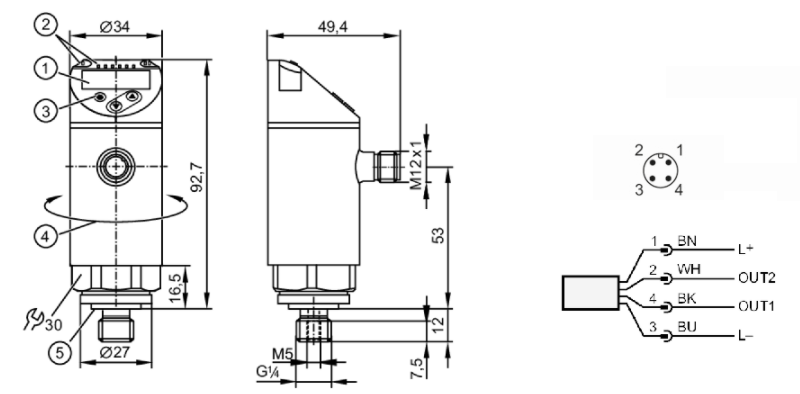

Cảm biến áp suất IFM PN7594 - detail

  • Giao diện giao tiếp: IO-Link.
  • Operating voltage: 18…30 VDC; (to SELV/PELV).
  • Phạm vi đo lường: -1…10 bar.
  • Connection Connector: 1 x M12

Thông số kỹ thuật – Cảm biến áp suất IFM PN7594

Product characteristics

Number of inputs and outputs Number of digital outputs: 2
Measuring range
-1…10 bar -14.5…145 psi -100…1000 kPa -0.1…1 MPa


Process connection threaded connection G 1/4 external thread internal thread:M5

Application

Special feature Gold-plated contacts
Measuring element ceramic-capacitive pressure measuring cell
Application for industrial applications
Media liquids and gases
Medium temperature[°C] -25…80
Min. bursting pressure
150 bar 2175 psi 15 MPa


Pressure rating
75 bar 1087 psi 7.5 MPa


Vacuum resistance[mbar] -1000
Type of pressure relative pressure; vacuum

Electrical data

Operating voltage[V] 18…30 DC; (to SELV/PELV)
Current consumption[mA] < 35
Min. insulation resistance[MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Power-on delay time[s] < 0.3
Integrated watchdog yes

Inputs / outputs

Number of inputs and outputs Number of digital outputs: 2

Outputs

Total number of outputs 2
Output signal switching signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 150; (200 (…60 °C) 250 (…40 °C))
Switching frequency DC[Hz] < 170
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes

Measuring/setting range

Measuring range
-1…10 bar -14.5…145 psi -100…1000 kPa -0.1…1 MPa





Factory setting / CMPT = 2
Set point SP
-0.9…10 bar -13.5…145 psi -0.09…1 MPa


Reset point rP
-0.95…9.95 bar -14…144.5 psi -0.095…0.995 MPa


Min. difference between SP and rP
0.05 bar 1 psi 0.005 MPa


In steps of
0.05 bar 0.5 psi 0.005 MPa





Status_B High Resolution / CMPT = 3
Set point SP
-0.92…10 bar -13.3…145 psi -0.092…1 MPa


Reset point rP
-0.97…9.95 bar -14…144.3 psi -0.097…0.995 MPa


Min. difference between SP and rP
0.05 bar 0.8 psi 0.005 MPa


In steps of
0.01 bar 0.1 psi 0.001 MPa



Accuracy / deviations

Switch point accuracy[% of the span] < ± 0,5
Repeatability[% of the span] < ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation[% of the span] < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation[% of the span] < ± 0,25
Long-term stability[% of the span] < ± 0,05; (per 6 months)
Temperature coefficient zero point[% of the span / 10 K] < ± 0,2; (-0…80 °C)
Temperature coefficient span[% of the span / 10 K] < ± 0,2; (-0…80 °C)

Response times

Response time[ms] < 3
Delay time programmable dS, dr[s] 0…50

Software / programming

Parameter setting options hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit

Interfaces

Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
SIO mode yes
Required master port type A; (when pin 2 not connected: B)
Process data analogue 1
Process data binary 2
Supported DeviceIDs
Type of operation DeviceID
Factory setting / CMPT = 2 403
PN7004 311
Status_B High Resolution / CMPT = 3 601


Note
For further information please see the IODD PDF file under “Downloads”





Factory setting / CMPT = 2
Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
Min. process cycle time[ms] 2.3
IO-Link resolution pressure[bar] 0.01
IO-Link resolution pressure[MPa] 0.001
IO-Link process data (cyclical)
function bit length
pressure 14
binary switching information 2


IO-Link functions (acyclical) application specific tag



Status_B High Resolution / CMPT = 3
Profiles Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
Min. process cycle time[ms] 3
IO-Link resolution pressure[bar] 0.005
IO-Link resolution pressure[MPa] 0.0005
IO-Link process data (cyclical)
function bit length
pressure 16
device status 4
binary switching information 2


IO-Link functions (acyclical) application specific tag

Operating conditions

Ambient temperature[°C] -25…80
Storage temperature[°C] -40…100
Protection IP 65; IP 67

Tests / approvals

EMC
DIN EN 61000-6-2
DIN EN 61000-6-3


Shock resistance
DIN EN 60068-2-27 50 g (11 ms)


Vibration resistance
DIN EN 60068-2-6 20 g (10…2000 Hz)


MTTF[years] 260
UL approval
UL Approval no. J001


Pressure Equipment Directive Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] 260.5
Materials stainless steel (316L/1.4404); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts) stainless steel (316L/1.4404); ceramics; FKM
Min. pressure cycles 100 million
Tightening torque[Nm] 25…35; (recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection threaded connection G 1/4 external thread internal thread:M5
Restrictor element integrated no (can be retrofitted)

Displays / operating elements

Display
Display unit 3 x LED, green (bar, psi, MPa)
switching status 2 x LED, yellow
measured values alphanumeric display, red/green 4-digit



Remarks

Pack quantity 1 pcs.

Electrical connection

Connection Connector: 1 x M12; coding: A; Contacts: gold-plated

Datasheet Cảm biến áp suất IFM PN7594
