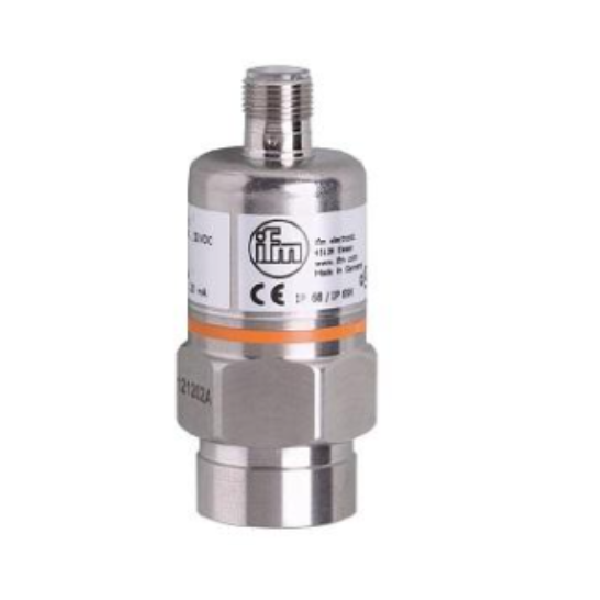

Cảm biến áp suất IFM PA3024

Cảm biến áp suất IFM PA3024

– Tín hiệu đầu ra analog 4…20 mA.
– Operating voltage: 9.6…32 VDC.
– Phạm vi đo: 0…2.5 MPa.
– Kích thước (mm): Ø 30 / L = 75.
– Vỏ thép không rỉ có thể sử dụng trong mô trường khắc nghiệt.
– Kết nối process: kết nối ren G 1/4 ren trong.
– Connector: 1 x M12; coding: A; Contacts: gold-plated.

Cảm biến áp suất IFM PA3024 là một thiết bị đo áp suất do hãng IFM sản xuất, được sử dụng để đo áp suất trong các hệ thống công nghiệp

Cảm biến áp suất IFM PA3024 - detail

– Tín hiệu đầu ra tuyến tính: 4…20 mA
– Điện áp làm việc: 9.6…32 VDC.
– Phạm vi đo: 0…2.5 MPa.
– Kích thước (mm): Ø 30 / L = 75.
– Bảo vệ quá tải.
– Vỏ thép không rỉ, có thể sử dụng trong môi trường khắc nghiệt.

Thông số kỹ thuật – Cảm biến áp suất IFM PA3024

Product characteristics

Number of inputs and outputs Number of analogue outputs: 1
Measuring range
0…10 bar 0…145 psi 0…1000 kPa 0…1 MPa


Process connection threaded connection G 1/4 internal thread

Application

Special feature Gold-plated contacts
Application for industrial applications
Media liquids and gases
Medium temperature[°C] -25…90; (on request: -40…90 °C)
Min. bursting pressure
150 bar 2175 psi 15 MPa


Pressure rating
75 bar 1088 psi 7.5 MPa


Type of pressure relative pressure

Electrical data

Operating voltage[V] 9.6…32 DC
Min. insulation resistance[MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes

Inputs / outputs

Number of inputs and outputs Number of analogue outputs: 1

Outputs

Total number of outputs 1
Output signal analogue signal
Number of analogue outputs 1
Analogue current output[mA] 4…20
Max. load[Ω] 720; (Ub = 24 V; (Ub – 9,6 V) / 20 mA)
Overload protection yes

Measuring/setting range

Measuring range
0…10 bar 0…145 psi 0…1000 kPa 0…1 MPa



Accuracy / deviations

Repeatability[% of the span] < 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation[% of the span] < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Long-term stability[% of the span] < ± 0,05; (per 6 months)
Temperature coefficient zero point[% of the span / 10 K] 0,1; (0…80 °C)
Temperature coefficient span[% of the span / 10 K] 0,2; (0…80 °C)

Response times

Step response time analogue output[ms] 3

Operating conditions

Ambient temperature[°C] -25…80
Storage temperature[°C] -40…100
Protection IP 65

Tests / approvals

EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 30 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
radiation of interference according to the automotive directive 2004/104/EC
CISPR 25
immunity according to the automotive directive 2004/104/EC
ISO 11452-2 HF radiated 100 V/m
ISO 7637-2 pulse severity level 4


Shock resistance
DIN EN 60068-2-27 50 g (11 ms)
DIN EN 61373 category 3


Vibration resistance
DIN EN 60068-2-6 20 g (10…2000 Hz)
DIN EN 61373 category 2


MTTF[years] 506
Pressure Equipment Directive Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Railway applications
DIN EN 50155 / IEC 60571 Klasse T3, C1, S1



Mechanical data

Weight[g] 226
Housing cylindrical
Dimensions[mm] Ø 30 / L = 75
Materials stainless steel (316L/1.4404); FKM; PA; EPDM/X
Materials (wetted parts) stainless steel (303/1.4305); ceramics; FKM
Min. pressure cycles 100 million
Process connection threaded connection G 1/4 internal thread
Restrictor element integrated no (can be retrofitted)

Remarks

Pack quantity 1 pcs.

Electrical connection

Connection Connector: 1 x M12; coding: A; Contacts: gold-plated

Datasheet Cảm biến áp suất IFM PA3024
