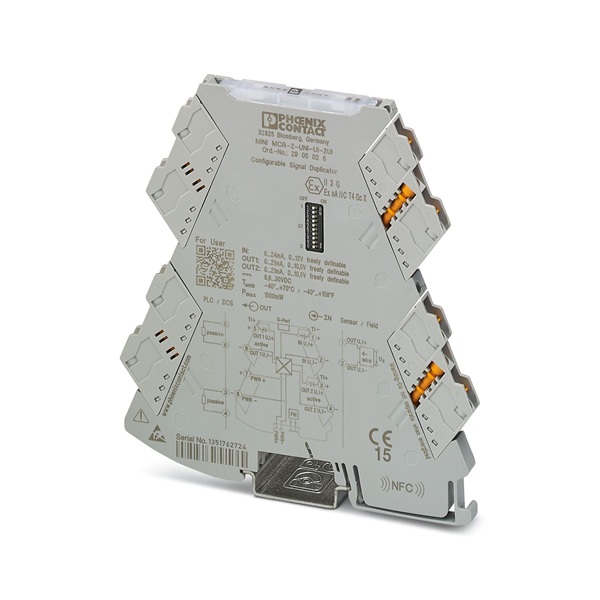

Bộ nhân đôi tín hiệu analog MINI MCR-2-UNI-UI-2UI 2905026 của Phoenix Contact
Bộ nhân đôi tín hiệu analog MINI MCR-2-UNI-UI-2UI 2905026
– Cách ly tín hiệu
– 1 ngõ vào/ 2 ngõ ra analog
– Có thể chọn kiểu ngõ vào/ ngõ ra analog nhờ vào DIP switch
Bộ nhân đôi tín hiệu analog MINI MCR-2-UNI-UI-2UI 2905026
Bộ nhân đôi tín hiệu analog MINI MCR-2-UNI-UI-2UI 2905026
– Cách ly tín hiệu
– 1 ngõ vào/ 2 ngõ ra analog
– Có thể chọn kiểu ngõ vào/ ngõ ra analog nhờ vào DIP switch
– Screw connection

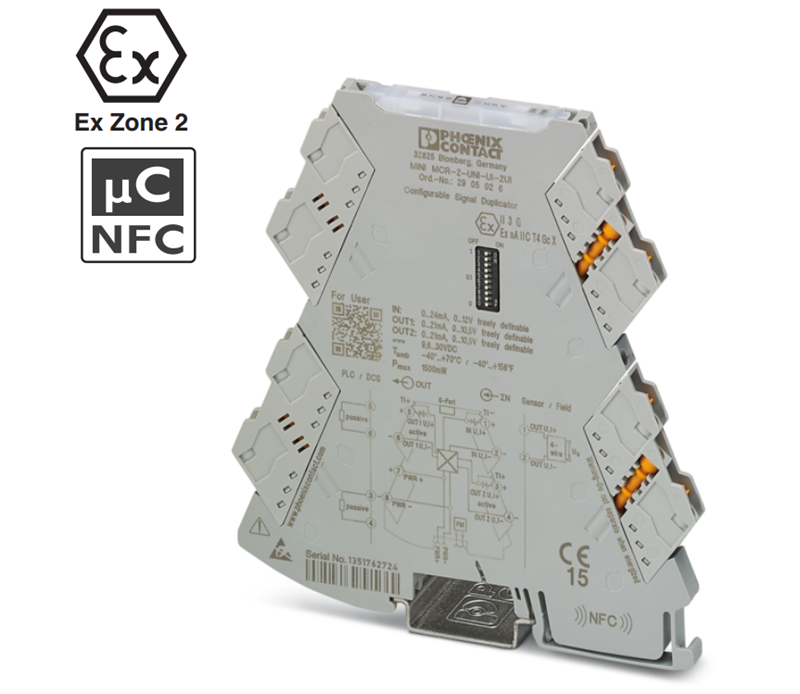

– Chống cháy nổ theo II 3 G Ex ec IIC T4 Gc
Thông số kỹ thuật – Bộ nhân đôi tín hiệu analog MINI MCR-2-UNI-UI-2UI 2905026
| Product type | Signal duplicator |
| Product family | MINI Analog Pro |
| No. of channels | 2 |
| Type | Signal conditioner |
| Configuration | DIP switches |
| Software | |
| App | |
| Insulation characteristics: GB Standard | |
| Overvoltage category | II |
| Pollution degree | 2 |
System properties
| Functionality | |
| Configuration | DIP switches |
| Software | |
| App | |
Electrical properties
| Electrical isolation | 4-way isolation |
| Step response (0–99%) | 140 ms (15 Hz sample rate) |
| 45 ms (60 Hz sample rate) | |
| 25 ms (240 Hz sample rate, can only be set via software) | |
| Maximum temperature coefficient | 0.01 %/K |
| Maximum transmission error | ≤ 0.05 % (of the maximum value of the configured output range) |
| Electrical isolation Input/output/power supply | |
| Rated insulation voltage | 300 Vrms |
| Test voltage | 3 kV AC (50 Hz, 60 s) |
| Insulation | Reinforced insulation according to IEC/EN 61010-1 |
| Supply | |
| Nominal supply voltage | 24 V DC |
| Supply voltage range | 9.6 V DC … 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Typical current consumption | 55 mA (24 V DC) |
| 110 mA (12 V DC) | |
| Power consumption (I output) | 1.5 W (at IOUT = 20 mA, 9.6 V DC, 600 Ω load) |
Input data
| Signal: Voltage/current | |
| Number of inputs | 1 |
| Configurable/programmable | Yes |
| Voltage input signal | 0 V … 10 V (via DIP switch) |
| 2 V … 10 V (via DIP switch) | |
| 0 V … 5 V (via DIP switch) | |
| 1 V … 5 V (via DIP switch) | |
| 0 V … 12 V (can be set via software) | |
| Max. voltage input signal | 12 V |
| Current input signal | 0 mA … 20 mA (via DIP switch) |
| 4 mA … 20 mA (via DIP switch) | |
| 0 mA … 10 mA (via DIP switch) | |
| 20 mA … 0 mA (via DIP switch) | |
| 0 mA … 24 mA (can be set via software) | |
| Max. current input signal | 24 mA |
| Input resistance of voltage input | > 120 kΩ |
| Input resistance current input | ~ 50 Ω (+0.7 V for test diode) |
Output data
| Signal: Voltage/current | |
| Number of outputs | 2 |
| Voltage output signal | 0 V … 10 V (via DIP switch) |
| 2 V … 10 V (via DIP switch) | |
| 0 V … 5 V (via DIP switch) | |
| 1 V … 5 V (via DIP switch) | |
| 0 V … 10.5 V (can be set via software) | |
| Max. voltage output signal | ~ 12.3 V |
| Non-load voltage | ≤ 18.5 V |
| Current output signal | 0 mA … 20 mA (via DIP switch) |
| 4 mA … 20 mA (via DIP switch) | |
| 0 mA … 10 mA (via DIP switch) | |
| 20 mA … 0 mA (via DIP switch) | |
| 0 mA … 21 mA (can be set via software) | |
| Max. current output signal | 24.6 mA |
| Short-circuit current | ≤ 25 mA |
| Load/output load voltage output | ≥ 10 kΩ |
| Load/output load current output | ≤ 600 Ω (per channel) |
| Ripple | < 20 mVPP (600 Ω) |
| < 20 mVPP (600 Ω) | |
