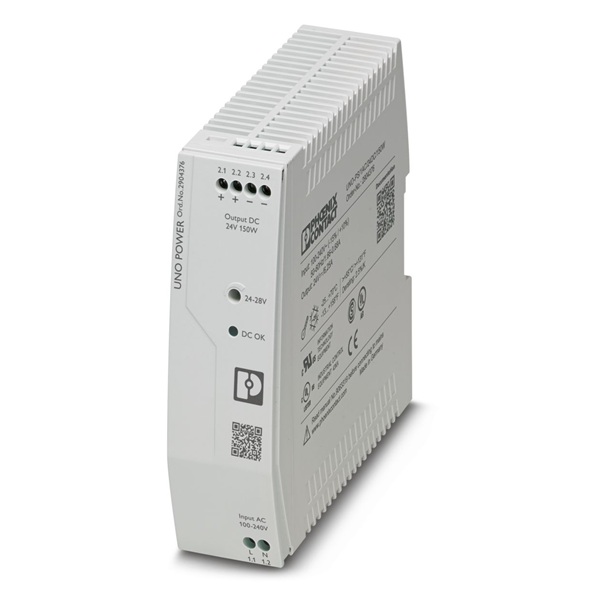

Bộ nguồn DC 24V 150W của Phoenix Contact 2904376
– Điện áp vào: 85 V AC … 264 V AC
– Đầu ra 24 V DC … 28 V DC ±1 %, 6.25 A (-25 °C … 55 °C)
– Công suất 150 W
– Kích thước:
Width 37 mm
Height 130 mm
Depth 125 mm
– IP20
Bộ nguồn DC 24V 150W của Phoenix Contact 2904376 là bộ nguồn DC 24V, điện áp vào 1 pha 220 VAC…
– Điện áp vào: 85 V AC … 264 V AC
– Đầu ra: 24 V DC … 28 V DC ±1 %, 6.25 A (-25 °C … 55 °C)
– Công suất 150 W
– Kích thước:
Width 37 mm
Height 130 mm
Depth 125 mm
– Có LED trạng thái

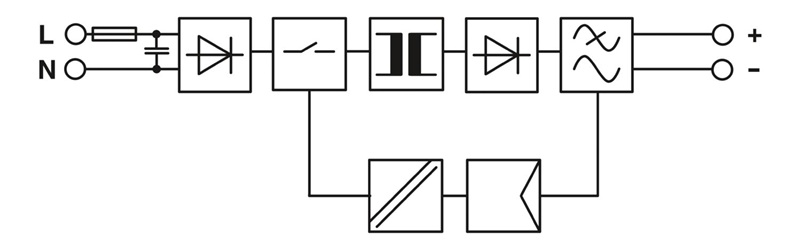

Thông số kỹ thuật – Bộ nguồn DC 24V 150W của Phoenix Contact 2904376
Input data
| AC operation | |
| Nominal input voltage range | 100 V AC … 240 V AC |
| Input voltage range | 85 V AC … 264 V AC |
| Input voltage range AC | 85 V AC … 264 V AC |
| Voltage type of supply voltage | AC |
| Inrush current | < 50 A (typ.) |
| Inrush current integral (I2t) | < 0.8 A2s (typ.) |
| AC frequency range | 50 Hz … 60 Hz |
| Frequency range (fN) | 50 Hz … 60 Hz ±10 % |
| Mains buffering time | > 20 ms (120 V AC) |
| > 20 ms (230 V AC) | |
| Current consumption | typ. 1.66 A (100 V AC) |
| typ. 0.68 A (240 V AC) | |
| Nominal power consumption | 164.7 VA |
| Protective circuit | Transient surge protection; Varistor |
| Power factor (cos phi) | 0.97 |
| Typical response time | < 1 s |
| Input fuse | 2.5 A (slow-blow, internal) |
| Recommended breaker for input protection | 6 A … 16 A (Characteristics B, C, D, K) |
Output data
| Efficiency | typ. 91 % (120 V AC) |
| typ. 94 % (230 V AC) | |
| Output characteristic | U/I |
| Nominal output voltage | 24 V DC |
| Setting range of the output voltage (USet) | 24 V DC … 28 V DC ±1 % |
| Nominal output current (IN) | 6.25 A (-25 °C … 55 °C) |
| Derating | 55 °C … 70 °C (2.5 %/K) |
| Feedback voltage resistance | < 35 V DC |
| Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
| Control deviation | < 1 % (change in load, static 10 % ... 90 %) |
| < 2 % (change in load, dynamic 10 % ... 90 %) | |
| < 0.1 % (change in input voltage ±10 %) | |
| Residual ripple | < 40 mVPP (with nominal values) |
| Short-circuit-proof | yes |
| Output power | 150 W |
| Maximum no-load power dissipation | < 1.2 W |
| Power loss nominal load max. | < 9.7 W |
| Rise time | < 0.5 s (UOUT (10 % … 90 %)) |
| Response time | < 2 ms |
| Connection in parallel | yes, for redundancy and increased capacity |
| Connection in series | no |
Connection data
Signaling
| Types of signaling | LED |
Electrical properties
| Number of phases | 1 |
| Insulation voltage input/output | 4 kV AC (type test) |
| 3 kV AC (routine test) |
Product properties
| Product type | Power supply |
| Product family | UNO POWER |
| MTBF (IEC 61709, SN 29500) | > 868000 h (40 °C) |
| Insulation characteristics | |
| Protection class | II (in closed control cabinet) |
| Degree of pollution | 2 |
Dimensions
| Width | 37 mm |
| Height | 130 mm |
| Depth | 125 mm |
