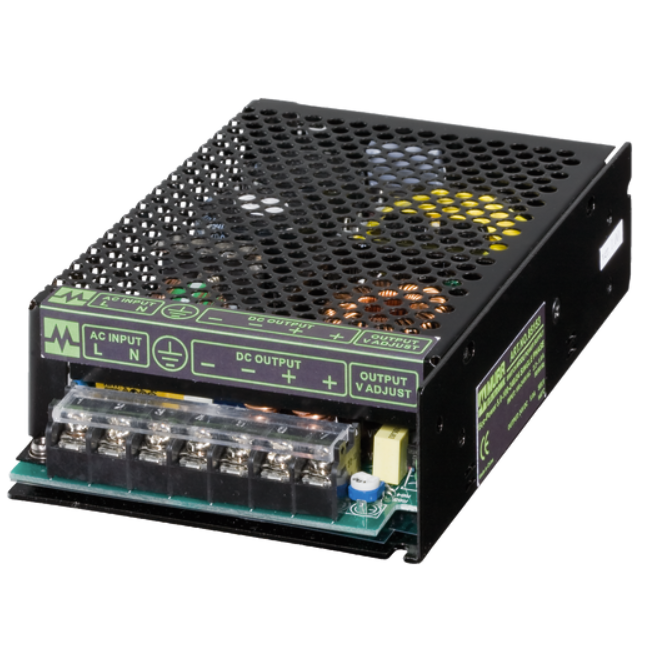

Bộ nguồn 1 pha DC 24V 1.3A Eco-power 85151 của Murrelektronik
– Điện áp ngõ vào: 90…264 V AC
– Ngõ ra: 24 V DC/ 1,3 A
– Trọng lượng: 0.24kg
– Xuất xứ: Cộng hòa Nhân dân Trung Hoa
Bộ nguồn 1 pha DC 24V 1.3A Eco-power 85151 của Murrelektronik
– Điện áp ngõ vào : 90…264 V AC
– Điện áp ngõ ra : 24 V DC ±1%
– Dòng điện: 1,3 A
– Thời gian duy trì khi mất nguồn : tối thiểu 10 ms (115 V AC) ; 90 ms (230 V AC)
– Cho phép đấu nối nối tiếp ngõ ra
– Kích thước (H x W x D): 36 x 77 x 105 mm
Bộ nguồn 1 pha DC 24V 1.3A Eco-power 85151 của Murrelektronik
– Điện áp ngõ vào: 90…264 V AC
– Ngõ ra: 24 V DC/ 1,3 A
– Trọng lượng: 0.24kg
– Xuất xứ: Cộng hòa Nhân dân Trung Hoa
Thông số kỹ thuật – Bộ nguồn 1 pha DC 24V 1.3A Eco-power 85151 của Murrelektronik
Header
Material short text | Eco-Power 1.3-100-240/24 |
Electrical data
Parallel connection | no |
Series connection | yes |
Number of devices series connection max. | 2 |
Electrical data | Supply
Power frequency | 50 … 60 Hz |
Electrical data | Input
Input voltage AC min. | 100 V |
Input voltage AC max. | 240 V |
Input voltage 1 AC | 115 V |
Input voltage 2 AC | 230 V |
Input current at input voltage 1 AC | 0.7 A |
Input current at input voltage 2 AC | 0.4 A |
Inrush current max. | 20 A |
Efficiency | 85 % @ 115 V AC 85 % @ 230 V AC |
External back-up fuse per phase max. | 16 A |
Electrical data | Output
Output voltage adjustable | no |
Output voltage DC | 24 V |
Output voltage DC min. | 23.76 V |
Output voltage DC max. | 24.24 V |
Output current | 13 A |
Spikes (s-s) max. | 100 mV |
Ripple effective max. | 20 mV |
Installation | Connection
Mounting set | M3 |
Device protection | Electrical
Overload protection output | yes |
Short-circuit protection output | yes |
