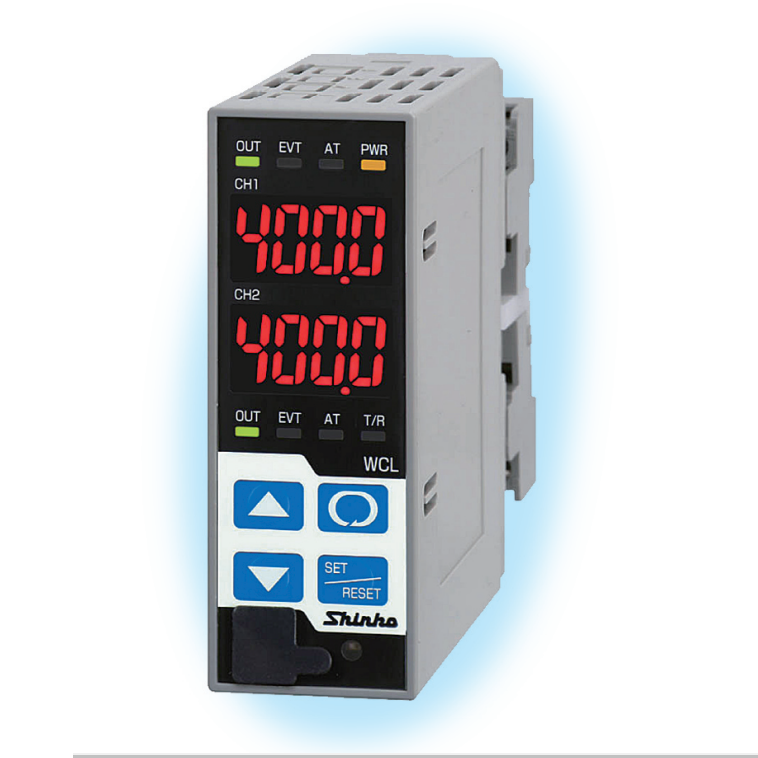

Bộ điều khiển nhiệt độ Shinko WCL_13A_RR MM, 1, C5 - header

Bộ điều khiển nhiệt độ Shinko WCL-13A-RR/MM, 1, C5

Bộ điều khiển nhiệt độ shinko WCL-13A-RR/MM, 1, C5

– Kích thước 30 x 88 x 110mm
– Điều khiển PID 2 kênh
– 2 ngõ ra relay
– Có nhiều kiểu ngõ vào: RTD, DC dòng và áp.
– Nguồn cấp 24V AC/DC
– Có truyền thông RS-485

Bộ điều khiển nhiệt độ shinko WCL-13A-RR/MM, 1, C5 là bộ điệu khiển nhiệt độ 2 kênh

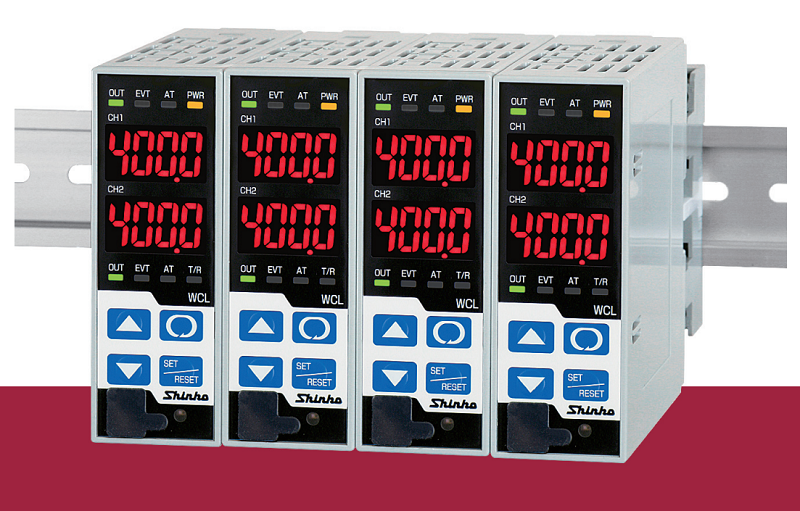

Bộ điều khiển nhiệt độ Shinko WCL_13A_RR MM, 1, C5 - diện mạo

– Điều khiển PID
– 2 kênh điều khiển heating/cooling (ngõ ra relay)
– Có nhiều kiểu đầu vào (multi-input): RTD, DC dòng và áp
– Nguồn cấp 24 V AC/DC
– Có truyền thông RS-485
– Tiết kiệm không gian với kích thước chỉ 30 x 88 x 110mm

Bộ điều khiển nhiệt độ Shinko WCL_13A_RR MM, 1, C5 - kích thước



Thông số kỹ thuật – Bộ điều khiển nhiệt độ shinko WCL-13A

Rating



Measurement range Multi-range input

Input Range
M K -200 to 1370 -320 to 2500
-199.9 to 400.0 -199.9 to 750.0
J -200 to 1000 -320 to 1800
R 0 to 1760 0 to 3200
S 0 to 1760 0 to 3200
B 0 to 1820 0 to 3300
E -200 to 800 -320 to 1500
T -199.9 to 400.0 -199.9 to 750.0
N -200 to 1300 -320 to 2300
PL-II 0 to 1390 0 to 2500
C(W/Re5-26) 0 to 2315 0 to 4200
Pt100 -199.9 to 850.0 -199.9 to 999.9
-200 to 850 -300 to 1500
JPt100 -199.9 to 500.0 -199.9 to 900.0
-200 to 500 -300 to 900
4 to 20mA (*1) -1999 to 9999 (*2)
0 to 20mA (*1)
0 to 1V
0 to 5V
1 to 5V
0 to 10V

(*1): 50 shunt resistor (sold separately) should be connected externally.
(*2): Scaling and decimal point place change are possible.

Infrared thermocouple input

Input Range
I RD-300 series
or RD-401		 -50 to 500 -58 to 932


Input

Thermocouple K, J, R, S, B, E, T, N, PL-II, C(W/Re5-26)
External resistance 100 or less
(However, B input: 40 or less)
RTD Pt100, JPt100, 3-wire system
Allowable input lead wire resistance (10 or less per wire
Direct current 0 to 20mA, 4 to 20mA DC
Input impedance: 50
Allowable input current: 50mA or less
DC voltage 0 to 1V DC
Input impedance: 1M or more
Allowable input voltage: 5V DC or less
Allowable signal source resistance: 2k or less
0 to 5V, 1 to 5V, 0 to 10V DC
Input impedance: 100k or more
Allowable input voltage: 15V DC or less
Allowable signal source resistance: 100 or less
Infrared thermocouple RD-300 series, RD-401


Supply voltage 100 to 240V AC 50/60Hz, 24V AC/DC 50/60Hz
Allowable fluctuation range 85 to 264V AC, 20 to 28V AC/DC




General structure



Dimensions 30x88x110mm (WxHxD, including the socket)
Mounting DIN rail
Material Case: Flame-resistant resin
Color Light gray
Front panel Membrane sheet


Indication structure

PV/SV display CH1 7-segment Red LED display 4-digit
Character size, 10×4.6mm (HxW)
CH2 7-segment Red LED display 4-digit
Character size, 10×4.6mm (HxW)
Action indicators OUT(Green) Lights when control output is ON. (CH1, CH2 individually)
For DC current output type, flashes corresponding to the MV in 125ms cycles.
With Timer spec, the CH2 OUT indicator lights when timer output is ON.
EVT(Red) Lights when any alarm is ON from Alarm, Loop break alarm (LA), Heater burnout alarm (HB).
(CH1, CH2 individually)
AT(Yellow) Flashes while auto-tuning (AT) or auto-reset is performing.
(CH1, CH2 individually)
T/R (Yellow) Lights during Serial communication (TX output).
PWR (Yellow) Lights when power is turned on.






Indication performance



Indication accuracy

Thermocouple Within 0.2% of each input span1digit or 2 (4), whichever is greater
R, S input: 0 to 200 (0 to 400): Within 6 (12)
B input: 0 to 300 (0 to 600): Accuracy is not guaranteed.
K, J, E, T, N input, Less than 0 (32): Within 0.4% of each input span 1digit
RTD Within 0.1% of each input span1digit, or 1 (2), whichever is greater
DC voltage
DC current		 Within 0.2% of each input span1digit
Infrared thermocouple Within 0.2% of each input span1digit or 2 (4), whichever is greater
PV varies as infrared emissivity value is changed.
Setting range: 0.100 to 1.000 (Default value: 0.900)


Cold junction temperature compensation accuracy Within 1 at 0 to 50
Input sampling period 25ms, 125ms, 250ms. Selectable by keypad (Default value: 125ms)
Potentiometer input setting accuracy

Total resistance 1k to 10k
Reference voltage 1V DC
Accuracy Same as the setting accuracy
Temperature coefficient 0.05%/
Potentiometer input sampling Depends on Input sampling period selection.

Potentiometer input high and low limit depend on the External setting input high and low limit.




Timer specification



Time accuracy Within 0.5% of setting time




Control performance



Setting accuracy Same as the indication accuracy
Control action PID control (with auto-tuning)
PI control: When derivative time is set to 0.
PD control (with auto-reset function): When integral time is set to 0
P control (with auto-reset function): When integral and derivative times are set to 0.
ON/OFF control: When the proportional band is set to 0 or 0.0.

Proportional band (P) 0 to 9999 (), 0.0 to 999.9 () (DC current, voltage input: 0.0 to 999.9%)
Integral time (I) 0 to 3600 sec
Derivative time (D) 0 to 3600 sec
Proportional cycle 1 to 120 sec
ARW 0 to 100%
Reset 100.0 ()
(DC current, voltage input: 1000)
ON/OFF hysteresis 0.1 to 100.0 ()
(DC current, voltage input: 1 to 1000)
Output high limit, low limit 0 to 100%
(DC current output: -5 to 105%)
Output rate-of -change 0 to 100%


Control output

Relay contact 1a Control capacity: 3A 250V AC (resistive load), 1A 250V AC (inductive load cos =0.4)
Electrical life: 100,000 cycles
Non-contact voltage (for SSR drive) 12V DC15% Max 40mA DC (short circuit protected)
DC current 4 to 20mA DC, Load resistance: Max 550






Standard functions



Alarm Alarm type can be selected by keypad
-High limit alarm
-Low limit alarm
-High/Low limits alarm
-High/Low limit range alarm
-Process high alarm
-Process low alarm
-High limit alarm with standby
-Low limit alarm with standby
-High/Low limits alarm with standby

Setting accuracy Same as indication accuracy
Action ON/OFF action
Hysteresis Thermocouple, RTD input: 0.1 to 100.0 ()
DC current, voltage input: 1 to 1000
Output No output (Read with the status flag in Serial communication.)
Alarm delay timer 0 to 9999 sec


Loop break alarm Detects heater burnout, sensor burnout, actuator trouble.

Loop break alarm time 0 to 200 minute
Loop break alarm span Thermocouple, RTD input: 0 to 150 () or 0.0 to 150.0 ()
DC current, voltage input: 0 to 1500
Output No output (Read with the status flag in Serial communication.)


SV ramp function When the SV is adjusted, it approaches the new SV by the preset rate-of-change (/min, /min)
When the power is turned on, the control starts from the PV and approaches the SV by the rate-of-change.
Auto/Manual control switching Auto/Manual control can be switched by keypad.
If control action is switched from automatic to manual and vice versa, balanceless-bumpless function works to prevent sudden MV change.
If control action is switched to manual, the manual MV is indicated on the display. (CHx display flashes.)
When power is turned on, control action starts from its previous controller status (last shutdown).
Timer spec Selects either Control timer or Delay timer function.
–Control timer:
Timer starts when CH1 input exceeds Control timer start temperature.
After Control timer setting time has elapsed, control (for DC current output, output low limit) and alarm action will stop.
–Delay timer:
When DI input is ON (Closed), the timer starts.
Timer output turns ON after ON delay timer time has passed.
Timer output turns OFF after OFF delay timer time has passed.
Cascade control
(Block function)		 To control one process, 2 inputs [CH2 as a master (1st-order controller), and CH1 as a slave (2nd-order controller)] are used for more advanced control.
MV is calculated from PV and SV of the master (CH2), and is used as SV of the slave (CH1), with which CH1 control computation is carried out, then outputs from CH1 control output.
[CH2 control output will be OFF (0mA for DC current output) or OUT2 (Cooling output) for Heating/Cooling control.] MV (0 to 100%) of the master (CH2) corresponds to the SV (External setting low limit to External setting high limit) of the slave (CH1).
Heating/Cooling control output (Block function) This is 1ch Heating/Cooling control output spec. CH1 will be Heating output (OUT1) and CH2 will be Cooling output (OUT2), followed by control performance.

OUT2 proportional band (P) 0.0 to 10.0 times OUT1 proportional band
(ON/OFF control when set to 0.0.)
Integral time (I) Same as that of OUT1
Derivative time (D) Same as that of OUT1
OUT2 proportional cycle 1 to 120sec
ARW Same as that of OUT1
Overlap/Dead band Thermocouple, RTD input: -100.0 to 100.0 ()
DC current, voltage input: -1000 to 1000
OUT2 ON/OFF hysteresis 0.1 to 100.0 () (DC current, voltage input: 1 to 1000)
OUT2 high limit,
OUT2 low limit		 0 to 100%
(DC current output: -5 to 105%)
OUT2 action mode Air cooling (linear characteristic), Oil cooling (1.5th power of the linear characteristic), Water cooling (2nd power of the linear characteristic)

Output

Relay contact 1a Control capacity: 3A 250V AC (resistive load)
Electrical life: 100,000 cycles
Non-contact voltage (for SSR drive) 12V DC15%, Max 40mA DC (short circuit protected)
DC current 4 to 20mA DC, Load resistance: Max 600


External setting input
(Block function)		 External analog signal will become the SV.
Control desired value (SV) adds remote bias value to the External setting input value.
As a setting signal, specify any DC range during input type selection via console software.

Setting signal DC current: 4 to 20mA or 0 to 20mA DC
DC voltage: 1 to 5V or 0 to 1V DC
Allowable input DC current: 50mA DC or less
DC voltage (0 to 1V): 5V DC or less
DC voltage (1 to 5V): 10V DC or less
Input impedance DC current: 50 [Externally connect a shunt resistor (sold separately).] DC voltage: 100k
Input sampling period Depends on Input sampling period selection.


Transmission output (Block function) Converting any value (PV, SV or MV) to analog signal every input sampling period, outputs the value in current.
To use Transmission output, specify ‘Current’ for CH2 control output.

Resolution 1/10000
Current 4 to 20mA DC (load resistance Max 550)
Output accuracy Within 0.3% of Transmission output span


CH1 PV difference (CH1-CH2) input
(Block function)		 Temperature difference between CH1 and CH2 (CH1-CH2) will be the input value for CH1, and control is performed using this value.
PV = (CH1 PV – CH2 PV)
Set values such as input type, scaling and PV filter time constant can be individually set to CH1 and CH2.
However, if CH ranges differ from each other, indication and difference depend on the reference channel.
CH1 PV addition (CH1+CH2) input
(Block function)		 Addition value of CH1 and CH2 will be the input value for CH1, and control is performed using this value.
PV = (CH1 PV + CH2 PV)
Set values such as input type, scaling and PV filter time constant can be individually set to CH1 and CH2.
However, if CH ranges differ from each other, indication and addition depend on the reference channel.
CH2 PV difference (CH2-CH1) input
(Block function)		 Temperature difference between CH1 and CH2 (CH2-CH1) will be the input value for CH2, and control for CH2 is performed using this value.
PV = (CH2PV – CH1PV)
Set values such as input type, scaling and PV filter time constant can be individually set to CH1 and CH2.
However, if CH ranges differ from each other, indication and difference depend on the reference channel.
CH2 PV addition (CH1+CH2) input
(Block function)		 Addition value of CH1 and CH2 will be the input value for CH2, and control is performed using this value.
PV = (CH1 PV + CH2 PV)
Set values such as input type, scaling and PV filter time constant can be individually set to CH1 and CH2.
However, if CH ranges differ from each other, indication and addition depend on the reference channel.
Attached functions Sensor correction, set value lock, automatic cold junction temperature compensation, burnout, console communication, block selection function, power failure countermeasure, self-diagnosis, warm-up indication, display-off function, auto-light function




Optional functions



Heater burnout alarm (Sensor burnout alarm included) Monitors heater current with CT (current transformer), and detects burnout.
This option cannot be added to DC current output type.

Rated current Single-phase 20A, 3-phase 20A, Single-phase 100A, 3-phase 100A (Must be specified)
Single-phase: Detects with CT1 (CT input for CH1) and CT3 (CT input for CH2).
3-phase: Detects with CT1 & CT2 (CT input for CH1), and CT3 & CT4 (CT input for CH2).
Setting range 0.0 to 20.0A (For 20A. Disabled when set to 0.0.)
0.0 to 100.0A (For 100A. Disabled when set to 0.0)
Setting accuracy 5% of the rated current
Action point Set value
Action ON/OFF action
Output No output (Read with the status flag in Serial communication.)


Serial communication The following operations can be carried out from an external computer.
(1) Reading and setting of the SV, PID values and various set values
(2) Reading of the PV and action status
(3) Function change

Communication line EIA RS-485
Communication method Half-duplex communication
Synchronization method Start-stop synchronization
Communication speed 9600, 19200, 38400bps, Selectable by keypad
Data bit/Parity Data bit: 7 or 8
Parity: Even, Odd, No parity, Selectable by keypad
Stop bit 1 or 2, Selectable by keypad
Data format

Communication protocol Shinko Modbus ASCII Modbus RTU
Start bit 1 1 1
Data bit 7 7 or 8 8
Parity Yes (Even) Yes (Even, Odd), No parity Yes (Even, Odd), No parity
Stop bit 1 1 or 2 1 or 2


Communication protocol Shinko protocol, Modbus (ASCII mode or RTU mode), Selectable by keypad






Insulation, dielectric strength



Insulation resistance 10M or more, at 500V DC
Dielectric strength 1.5kV AC for 1 minute
Between power terminal and ground
Between input terminal and ground
Between input terminal and power terminal




Other



Power consumption Approx. 9VA
Ambient temperature 0 to 50
Ambient humidity 35 to 85%RH (Non-condensing)
Weight Approx. 200g (including the socket)
Accessories included Instruction manual, 1 copy
Accessories
sold separately

Socket ASK-001-1 (Finger-safe, Ring terminals unusable)
ASK-002-1 (Ring terminals usable)
Shunt resistor 50 (for DC current input)
CT CTL-6S (for Heater burnout alarm 20A) (*1)
CTL-12-S36-10L1U (for Heater burnout alarm 100A) (*1)
Connector harness 3m (for Heater burnout alarm) (*2)
Communication cable CMB-001 [For console software SWS-WCL01M)]

(*1) For 3-phase, 2 pieces are needed for each channel.
(*2) For 3-phase, 2 lengths are needed for each channel.



Catalog Bộ điều khiển nhiệt độ shinko WCL-13A
