Bộ điều khiển nhiệt độ 96x96mm ngõ ra 4-20mA ACD-13A-A- M, 1, A3, TA1 header

Bộ điều khiển nhiệt độ 96x96mm ngõ ra 4-20mA ACD-13A-A/M, 1, A3, TA

Bộ điều khiển nhiệt độ 96x96mm ngõ ra 4-20mA ACD-13A-A/M, 1, A3, TA

– Nguồn cấp: 24 V AC/ DC
– Nhỏ gọn. IP66
– Multi-input. Ngõ ra điều khiển 4-20mA
– Có ra cảnh báo (alarm)
– Kích thước: 96x96x110mm (W x H x D)
– Màn hình hiển thị sử dụng đèn LED 11 đoạn

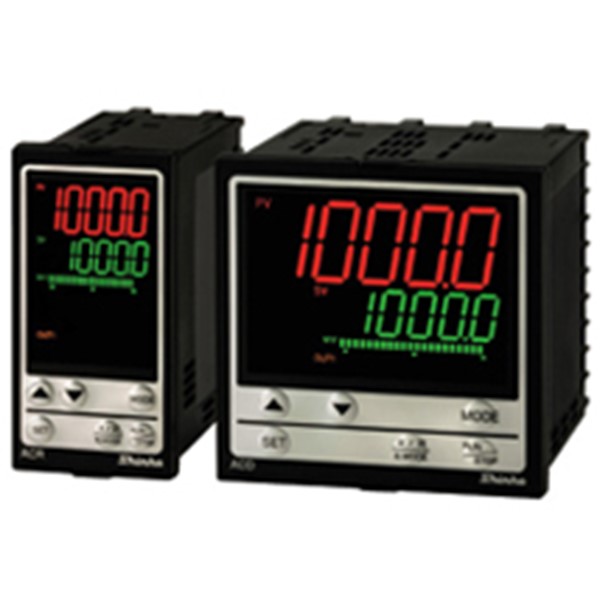

Bộ điều khiển nhiệt độ 96x96mm ngõ ra 4-20mA ACD-13A-A/M, 1, A3, TA: Bộ điều khiển nhiệt độ dạng hiển thị số (digital temperature controller) có kích thước 96×96 mm, dùng để đo và điều khiển nhiệt độ trong các hệ thống công nghiệp. Thiết bị có ngõ ra tín hiệu analog 4–20 mA, cho phép điều khiển thiết bị gia nhiệt, van điều khiển

– Nguồn cấp: 24 V AC/ DC
– Nhỏ gọn. IP66
– Multi-input. Ngõ ra điều khiển 4-20mA
– Có ra cảnh báo (alarm)
– Kích thước: 96x96x110mm (W x H x D)
– Màn hình hiển thị sử dụng đèn LED 11 đoạn

Bộ điều khiển nhiệt độ 96x96mm ngõ ra 4-20mA ACD-13A-A/M, 1, A3, TA1 detail

Sản phẩm khác

THÔNG SỐ KỸ THUẬT – Bộ điều khiển nhiệt độ 96x96mm ngõ ra 4-20mA ACD-13A-A/M, 1, A3, TA

Spec



Rating
Rated scale
Input Scale range Resolution
K -200to1370 -328to2498 1()
K -200.0to400.0 -328.0to752.0 0.1()
J -200to1000 -328to1832 1()
R 0to1760 32to3200 1()
S 0to1760 32to3200 1()
B 0to1820 32to3308 1()
E -200to800 -328to1472 1()
T -200.0to400.0 -328.0to752.0 0.1()
N -200to1300 -328to2372 1()
PL-II 0to1390 32to2534 1()
C(W/Re5-26) 0to2315 32to4199 1()
Pt100 -200.0to850.0 -328.0to1562.0 0.1()
-100.0to100.0 -148.0to212.0 0.1()
-100.0to500.0 -148.0to932.0 0.1()
-200to850 -328to1562 1()
JPt100 -200.0to500.0 -328.0to932.0 0.1()
-200to500 -328to932 1()
4to20mA -2000to10000 1
0to20mA -2000to10000 1
0to10mV -2000to10000 1
-10to10mV -2000to10000 1
0to50mV -2000to10000 1
0to100mV -2000to10000 1
0to1V -2000to10000 1
0to5V -2000to10000 1
1to5V -2000to10000 1
0to10V -2000to10000 1
Input
Thermocouple K, J, R, S, B, E, T, N, PL-II, C(W/Re5-26)
External resistance: 100
RTD Pt100, JPt100 3-wire system
Allowable input lead wire resistance: 10 or less per wire
DC current 0-20mA DC, 4-20mA DC
Input impedance: 50, Allowable input current: 50mA or less
DC voltage 0-10mV DC, -10-10mV DC, 0-50mV DC, 0-100mV DC, 0-1V DC
Input impedance: 1M or more, Allowable input voltage: 5V DC or less
Allowable signal source resistance: 2k or less
0-5V DC, 1-5V DC, 0-10V DC
Input impedance: 100k or more, Allowable input voltage: 15V DC or less
Allowable signal source resistance: 100 or less
Supply voltage 100to240V AC 50/60Hz, 24V AC/DC 50/60Hz
Allowable fluctuation range 85to264V AC, 20to28V AC/DC
General structure
External dimensions ACD-13A, ACD-15A: 96x96x110mm (WxHxD)
ACR-13A, ACR-15A: 48x96x110mm (WxHxD)
Mounting Flush
Display
ACD-13A
ACD-15A		 PV display: 24.0×11.0mm (HxW)
SV/MV/TIME display: 14.0×7.0mm (HxW)
ACR-13A
ACR-15A		 PV display: 14.0×5.4mm(HxW)
SV/MV/TIME display: 10.0×4.6mm (HxW)
Indication performance
Basic accuracy
Thermocouple Within 0.2% of each input span1digit
However, R, S input -50 to 200(-58 to 392): Within 6 (12)
B input, 0 to 300 (0 to 572): Accuracy is not guaranteed
K, J, E, T, N input, Less than 0 (32): Within 0.4% of each input span1digit
RTD Within 0.1% of each input span1digit
DC current,
DC voltage		 Within 0.2% of each input span1digit
External setting input accuracy Within 0.2% of each input span
Cold junction temperature compensation accuracy Within 1 at 0 to 50
Input sampling
period		 125ms (When External setting input option is added: 250ms)
Time accuracy Within 1.0% of the setting time
Control performance
Setting accuracy Based on the Basic accuracy and Cold junction temperature compensation accuracy
Control action PID action (With Auto-tuning)
PI action: When derivative time is set to 0
PD action (With Auto, Manual reset function): When integral time is set to 0
P action (With Auto, Manual reset function): When integral and derivative time is set to 0
ON/OFF action: When proportional band is set to 0
Proportional band (P): 0 to Input span or  (DC current, voltage input: 0.0 to 1000.0%)
Integral time (I): 0 to 3600sec
Derivative time (D): 0 to 1800sec
Proportional cycle: 1 to 120sec
ARW: 0 to 100%
ON/OFF action hysteresis: 0.1 to 1000.0 ()
Output high limit, low limit: 0 to 100% (DC current output: -5 to 105%)
Control output ACD-13A, ACR-13A
-Relay contact, 1a1b
-Non-contact voltage (for SSR drive)
-DC currentACD-15A, ACR-15A
-Relay contact, 1a x 2
Standard functions
Event output 2 points of Event output
Selectable during Event output allocation by keypad
-Alarm output; High limit
-Alarm output; Low limit
-Alarm output; High/Low limits
-Alarm output; High/Low limits independent
-Alarm output; High/Low limit range
-Alarm output; High/Low limit range independent
-Alarm output; Process high
-Alarm output; Process low
-Alarm output; High limit with standby
-Alarm output; Low limit with standby
-Alarm output; High/Low limits with standby
-Alarm output; High/Low limits with standby independent
-Timer output
-Timer output (Control ON while timer ouput is ON)
-Heater burnout alarm output (When W option is added)
-Loop break alarm output
-Time signal output
-Output during AT
-Pattern end output

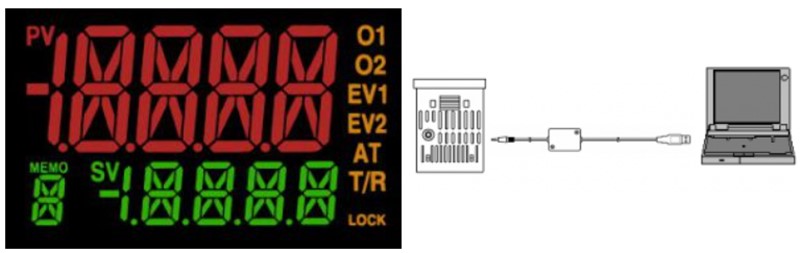

Console communication By connecting the USB communication cable (CMB-001) to the Console connector of the instrument, the following operations can be conducted from the external computer using the Console software SWS-AC001M.
Console communication and Serial communication cannot be used together.
-Reading and setting of the SV, PID values and various set values
-Reading of the PV and action status
-Function changeCommunication specifications
-Communication protocol: Shinko protocol
-Communication interface: C-MOS level
-Communication method: Half-duplex communication
-Synchronization method: Start-stop synchronization
-Communication speed: 9600bps
-Data bit: 7
-Parity: Even
-Stop bit: 1
-Exclusive cable
Attached functions Sensor correction, Set value lock, Auto/Manual switching, Program control, Set value ramp, Power failure countermeasure, Self-diagnosis, Automatic cold junction temperature compensation, Burnout, Input abnormality, Warm-up indication, PV color switching, Timer, Bar graph indication
Optional functions
Event input
(EI option)		 If this option and Serial communication (C, C5 option) are added together, Event input EVI3 and EVI4 cannot be used.

4 points of event input
Selectable during Event input allocation by keypad
-Set value memory function
-Control ON/OFF
-Direct/Reverse control action
-Timer function Start/Stop
-PV display; PV holding
-PV display; PV peak value holding
-Preset output
-Auto/Manual control
-Remote/Local
-Program mode; RUN/STOP
-Program mode; Holding/Not holding
-Program mode; Advance function
-Integral action holding
Event output
(EVT3 option)		 (Only for ACD-13A, ACR-13A)
If this option is added, Heating/Cooling control (DR, DS, DA option) or Insulated power output (P24 option) cannot be added together.EVT1 to EVT3 will be added using a common terminal.
Selectable by keypad during Event output allocation (the same as the standard Event output function)
Event output
(EVT5 option)		 EVT4, EVT5 can be added.
Selectable by keypad during Event output allocation (the same as the standard Event output function)
Heater burnout alarm
(W option)		 (Only for ACD-13A, ACR-13A)
Monitors heater current with CT (current transformer), and detects burnout.
Rated current: Single-phase; 20A, 100A, 3-phase; 20A, 100A
Setting range: 0.0 to 20.0A or 0.0 to 100.0A
Setting accuracy: Within 5% of the rated current
Action point: set value
Heating/Cooling control output
(Dx option)		 (Only for ACD-13A, ACR-13A)
If this option is added, Event output (EVT3 option) or Insulated power output (P24 option) cannot be added together.
If this option is added, Event output EVT2 cannot be used.An action mode is selectable by front keypad.
-Air cooling: Linear characteristic
-Oil cooling: 1.5th power of the linear characteristic
-Water cooling: 2nd power of the linear characteristicOUT2 output
-DR: Relay contact 1a1b
-DS: Non-contact voltage (for SSR drive)
-DA: DC current
Serial communication
( C, C5 option)		 If this option and Event input (EI option) are added together, Event input EVI3 and EVI4 cannot be used.

The following operations can be carried out from the external computer.
-Reading and setting of the SV, PID values and various set values
-Reading of the PV and action status
-Function change

Communication specifications
-Communication line: C(EIA RS-232C), C5(EIA RS-485)
-Communication method: Half-duplex communication
-Synchronization method: Start-stop synchronization
-Communication speed: 9600, 19200, 38400bps (Selectable by keypad)
-Data bit: 7, 8
-Parity: Even, Odd, No parity
-Stop bit: 1or 2 (Selectable by keypad)
-Communication protocol: Shinko protocol, Modbus ASCII, Modbus RTU (Selectable by keypad)

Digital external setting via Shinko programmable controllers:
Receives the digital set values from the Shinko programmable controllers (PC-900, PCD-33A with SVTC option).
External setting input
(Ex option)		 SV adds external analog signal to remote bias value.

Setting signal
-EA(4-20): DC current 4-20mA DC
-EA(0-20): DC current 0-20mA DC
-EV(1-5): DC voltage 1-5V DC
-EV(0-1): DC voltage 0-1V DC
Input sampling 0.25sec
Transmission output
(Tx option)		 Converting the value (PV, SV, MV or DV transmission) to analog signal every 0.125 seconds, outputs the value in current or voltage.

Resolution: 1/12000
Output
-TA: DC current 4 to 20mA DC (load resistance Max. 500)
-TV: DC voltage 0 to 1V DC (load resistance Min.100k)
Output accuracy: Within 0.3% of the transmission output span
Insulated power output
(P24 option)		 (Only for ACD-13A, ACR-13A)
If this option is added, Event output (EVT3 option) or Heating/Cooling control (DR, DS, DA option) cannot be added together.
If this option is added, Event output EVT2 cannot be used.Output voltage: 243V DC (when load current is 30mA DC)
Ripple voltage: Within 200mV DC (when load current is 30mA DC)
Max load current: 30mA DC
Insulation, Dielectric strength
Insulation resistance 10M or more, at 500V DC
When OUT1 and OUT2 are non-contact voltage or DC current output, OUT1 is
not insulated from OUT2.
Dielectric strength Between Power terminal – Ground: 1.5kV AC for 1minute
Between Input terminal – Ground: 1.5kV AC for 1minute
Between Input terminal – Power terminal: 1.5kV AC for 1minute
Other
Ambient temperature 0 to 50
Ambient humidity 35 to 85%RH (Non-condensing)
Drip-proof/
Dust-proof		 IP66 for the front panel



Bộ điều khiển nhiệt độ 96x96mm ngõ ra 4-20mA ACD-13A-A/M, 1, A3, TA1
