Bộ điều khiển nhiệt độ 48x48mm ngõ ra điều khiển 4-20mA

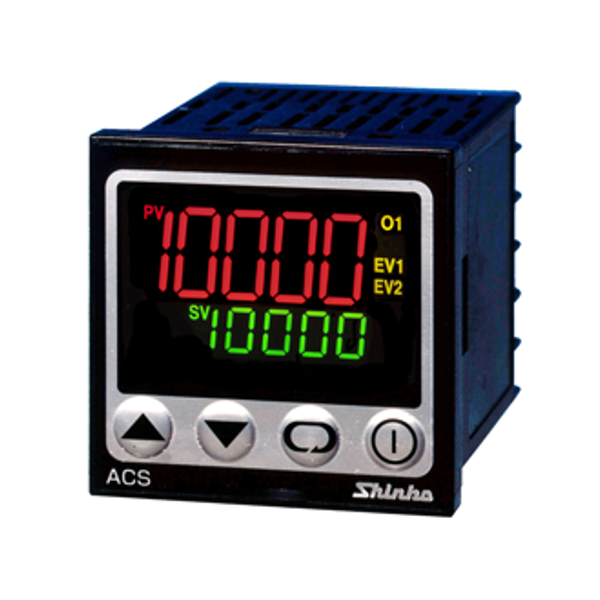

Bộ điều khiển nhiệt độ 48x48mm ngõ ra điều khiển 4-20mA ACS-13A-A/M

– Điều khiển PID
– Có nhiều lựa chọn đầu vào: T, RTD, DC dòng và áp
– Ngõ ra điều khiển: 4-20 mA
– Kích thước W×HxD (mm): 48 x 48 x 62
– Nguồn cấp 100-240 VAC
– Chống nước/ chống bụi IP66

Bộ điều khiển nhiệt độ 48x48mm ngõ ra điều khiển 4-20mA ACS-13A-A/M: là bộ điều khiển và hiển thị nhiệt độ (PID controller) dùng để đo và điều khiển nhiệt độ trong các thiết bị công nghiệp như máy ép nhựa, máy sấy, máy đóng gói, lò điện…

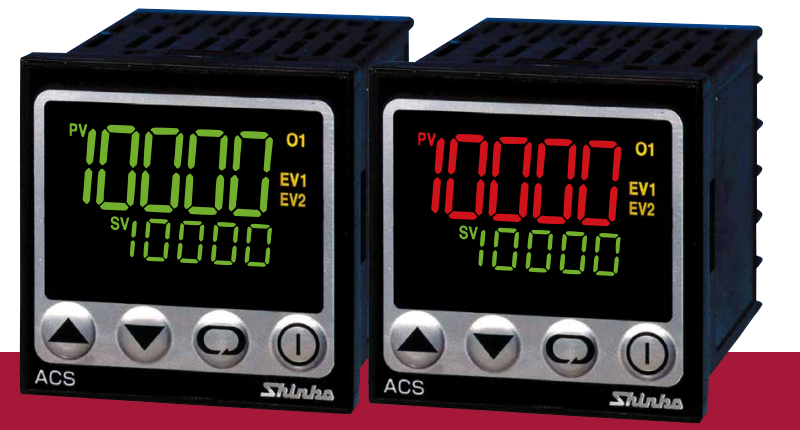

Bộ điều khiển nhiệt độ 48x48mm ngõ ra điều khiển 4-20mA ACS-13A-A/M - DETAIL 1

– Kích thước W x H x D(mm ): 48 x 48 x 62
– Màn hình hiển thị LCD 11 đoạn dễ đọc và quan sát

Bộ điều khiển nhiệt độ 48x48mm ngõ ra điều khiển 4-20mA ACS-13A-A/M - DETAIL 3

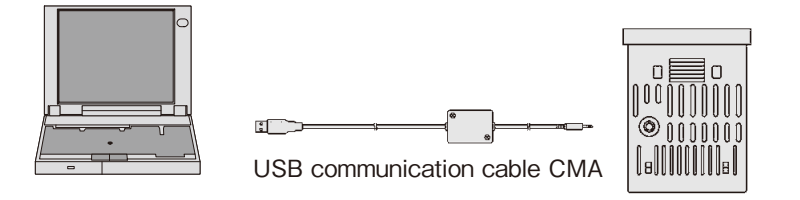

– Kết nối với máy tính qua cổng USB(CMA).
– Có thể thiết lập và giám sát các thông số bằng phần mềm giám sát (SWS-ACS01M).

Bộ điều khiển nhiệt độ 48x48mm ngõ ra điều khiển 4-20mA ACS-13A-A/M - DETAIL 2

– Ngõ ra điều khiển: 4-20 mA
– Nguồn cấp 100-240 VAC
– Chống bụi và nước theo tiêu chuẩn IP66
– Có nhiều tùy chọn đầu vào: T, RTD, DC dòng và áp

Sản phẩm tương tự

THÔNG SỐ KỸ THUẬT – Bộ điều khiển nhiệt độ 48x48mm ngõ ra điều khiển 4-20mA ACS-13A-A/M

■Standard specifications

Display	PV display———– 11-segment Backlight LCD Red/ Green /Orange, Character size, 12.0 x 5.4mm (H x W) SV display———– 11-segment Backlight LCD Green, Character size, 6.0 x 3.5mm (H x W) MEMO display—— 11-segment Backlight LCD Green, Character size, 4.8 x 2.8mm (H x W) Indicators————- Backlight Orange
Input	Thermocouple —- K, J, R, S, B, E, T, N, PL- Ⅱ, C (W/Re5-26) External resistance: 100Ω max., however, B input: 40Ω max. RTD——————- Pt100, JPt100: 3-wire type (Allowable input lead wire resistance: 10Ω max. per wire) Direct current——- 0 to 20 mA DC, 4 to 20 mA DC: Input impedance: 50Ω , Allowable input current: 50 mA DC max. DC voltage———– 0 to 1 V DC: Input impedance 1 MΩ min. Allowable input voltage: 5 V DC max. Allowable signal source resistance: 2 kΩ max. 0 to 5 V DC, 1 to 5 V DC, 0 to 10 V DC: Input impedance: 100 kΩ min. Allowable input voltage: 15 V DC max. Allowable signal source resistance: 100Ω max.
Accuracy (Setting・Indication)	Thermocouple—————- Within ±0.2% of each input span ±1digit, or within ±2℃ (4°F), whichever is greater However, R, S input, the range is 0 to 200℃ (32 to 392°F): Within ±6℃ (12°F) B input, the range is 0 to 300℃ (32 to 572°F): The accuracy is not guaranteed. K, J, E, T, N input, less than 0℃ (32°F): Within ±0.4% of input span ±1digit RTD—————————– Within ±0.1% of each input span±1digit, or within ±1℃ (2°F), whichever is greater Direct current, DC voltage — Within ±0.2% of each input span±1digit
Input sampling period	250 ms
Control output (OUT1)	Relay contact———— 1a, control capacity: 3 A 250 V AC (resistive load), 1 A 250 V AC (inductive load cosø=0.4), Electrical life: 100,000 cycles Non-contact voltage — 12 V DC ±15% Max. 40 mA DC (short circuit protected) Direct current ———– 4 to 20 mA DC Load resistance: Max. 550Ω
Control action	The following actions can be selected by keypad. (Factory default: PID) PID (with auto-tuning function), PI, PD (with auto-reset function), P (with auto-reset function), ON/OFF OUT1 proportional band (P)———- 0 to 1000℃ (2000°F), 0.0 to 1000.0℃ (1999.9°F), or 0.0 to 100.0%(ON/OFF control when set to 0 or 0.0) Integral time (I)—————————- 0 to 1000 seconds (OFF when set to 0) Derivative time (D)———————– 0 to 300 seconds (OFF when set to 0) OUT1 ON/OFF action—————— When the proportional band is set to 0 or 0.0 OUT1 proportional cycle————— 1 to 120 seconds (Not available for Direct current output type) ARW——————————————- 0 to 100% OUT1 ON/OFF action hysteresis — 0.1 to 100.0℃ (°F) or 1 to 1000 OUT1 high limit————————— 0 to 100% (Direct current: -5 to 105%) OUT1 low limit—————————– 0 to 100% (Direct current: -5 to 105%)
Alarm 1 output	Alarm types can be selected by keypad. (Factory default: No alarm action) ・No alarm action ・High limit alarm (Deviation setting) Setting range: －(Input span) to Input span ・Low limit alarm (Deviation setting) Setting range: －(Input span) to Input span ・High/Low limits alarm (Deviation setting) Setting range: 0 to Input span ・High/Low limit range alarm (Deviation setting) Setting range: 0 to Input span ・Process high alarm Setting range: Input range low limit value to Input range high limit value ・Process low alarm Setting range: Input range low limit value to Input range high limit value ・High limit with standby alarm (Deviation setting) Setting range: －(Input span) to Input span ・Low limit with standby alarm (Deviation setting) Setting range: －(Input span) to Input span ・High/Low limits with standby alarm (Deviation setting) Setting range: 0 to Input span Setting accuracy——- Same as indication accuracy Action——————— ON/OFF action Hysteresis————– 0.1 to 100.0℃ (°F) or 1 to 1000 Output——————— Relay contact 1a, Control capacity: 3 A 250 V AC (Resistive load), Electrical life: 100,000 cycles
Supply voltage	100 to 240 V AC 50/60 Hz (Allowable voltage fluctuation range: 85 to 264 V AC) 24 V AC/DC 50/60 Hz (Allowable voltage fluctuation range: 20 to 28 V AC/DC)
Power consumption	Approx. 8VA
Insulation resistance	10 MΩ min., at 500 V DC
Dielectric strength	Between Input terminal and Power terminal: 1.5 kV AC for 1 minute Between Output terminal and Power terminal: 1.5 kV AC for 1 minute
Environment	Ambient temperature: 0 to 50℃ Ambient humidity: 35 to 85 %RH (non-condensing),Drip-proof/Dust-proof IP66 (for front panel only)
Safety standards	UL: Power input rating 100-240 V AC, 24 V AC/DC File No. E159038
Case (Material, Color)	Material: Flame resistant resin Color: Black
Mounting method	Mounting frame (Mountable control panel thickness: 1 to 5 mm)
Setting method	Sheet key input
External dimensions	W48 x H48 x D62 mm (Depth of control panel interior when the gasket is used: 54.5 mm)
Weight	Approx. 120g
Attached functions	Power failure countermeasure, Self-diagnosis, Automatic cold junction temperature compensation (only for thermocouple), Burnout, Input error indication, Indication range, Control range, Warm-up indication, Auto/Manual control switching, Console communication
Accessories included	Mounting frame 1 piece, Gasket A (Front mounted to the ACS-13A) 1 piece Instruction manual (A3 unfolded, English/Japanese) 1 copy CT (Current transformer): CTL-6-S-H: 1 piece [W (20A) option], CTL-12-S36-10L1U: 1 piece [W (50A) option] CTL-6-S-H: 2 pieces [W3 (20A) option], CTL-12-S36-10L1U: 2 pieces [W3 (50A) option]
Accessories sold separately	Terminal cover (TC-ACS), USB communication cable CMA (to which the Console software SWS-ACS01M is attached)

■Optional specifications

Alarm 2 output [A2 option]

Alarm type, setting range and output type, etc. are the same as those of Alarm 1. See Alarm 1 output section. If this option is ordered, Heating/Cooling control (D□ option) cannot be ordered.

This option and Heater burnout alarm (W, W3 option) utilize common output terminals.

Heater burnout alarm [W, W3 option] (CT included)

Rating——————– Single-phase 20 A [W(20A)], Single-phase 50 A [W(50A)], 3-phase 20 A [W3(20A)], 3-phase 50 A [W3(50A)]

Must be specified.

Setting range———- Rated current 20 A [W(20A), W3(20A)]: 0.0 to 20.0 A

Rated current 50 A [W(50A), W3(50A)]: 0.0 to 50.0 A Setting accuracy—– Within ±5% of the rated value

Action——————– ON/OFF action

Output——————– Relay contact 1a, Control capacity: 3A 250V AC (resistive load), Electrical life: 100,000 cycles

If this option is ordered, Heating/Cooling control (D□ option) cannot be ordered.

Heating/Cooling control

[D□ option]

Heating control action: Same as the control output (OUT1) Cooling control action

OUT2 proportional band (P) — 0.0 to 10.0 times OUT1 proportional band (ON/OFF action when set to 0.0) OUT2 integral time (I)————- Same as that of OUT1

OUT2 derivative time (D)——– Same as that of OUT1

OUT2 proportional cycle——— 1 to 120 seconds

Overlap/Dead band—————- Thermocouple, RTD: -100.0 to 100.0℃ (°F)

Direct current, voltage: -1000 to 1000 (The placement of the decimal point follows the selection.) OUT2 hysteresis ——————- 0.1 to 100.0℃ (°F), or 1 to 1000

OUT2 cooling method————- One cooling method can be selected from Air cooling (linear characteristic), Oil cooling (1.5th power of the

linear characteristic) and Water cooling (2nd power of the linear characteristic) by keypad.

Output———————————- Relay contact 1a, Control capacity: 3A 250V AC (resistive load), Electrical life: 100,000 cycles

Non-contact voltage 12 V DC±15% Max. 40 mA DC (short circuit protected)

If this option is ordered, Alarm 2 (A2 option) and Heater burnout alarm (W, W3 option) cannot be ordered.

Serial communication [C5 option]

Various operations (such as Reading and setting of various set values, Reading of PV and action status and Function change) can be performed from an external PC.

Communication line—————— EIA RS-485

Communication method————- Half-duplex communication

Synchronization method———— Start-stop synchronization

Communication speed————— 2400/4800/9600/19200 bps (Selectable by keypad)

Data bit /Parity ———————- Data bit: 7 or 8, Parity: Even/Odd /No parity (Selectable by keypad) Stop bit———————————— 1 or 2 (Selectable by keypad)

Communication protocol———— Shinko protocol/Modbus ASCII/Modbus RTU (Selectable by keypad)

Number of connectable units—– Max. 31 units per host computer

Communication error detection — Parity, checksum, LRC (Modbus ASCII), CRC-16 (Modbus RTU) Data format

If this option is ordered, Set value memory external selection (SM option) cannot be ordered.

Set value memory external selection

[SM option]

SV1, SV2, SV3 or SV4 can be selected by the external contact. The MEMO display indicates the selected memory number.

Contact input terminal DI2 can be used for ʻSet value memory external selectionʼ or for ʻOUT/OFF external selectionʼ in [Contact input function] in Setup mode.

If ʻAuto/Manual control functionʼ is selected in [OUT/OFF key function] in Setup mode, externally Auto/Manual control can be switched. Circuit current when closed: Approx. 12 mA

If this option is ordered, Serial communication (C5 option) cannot be ordered.
