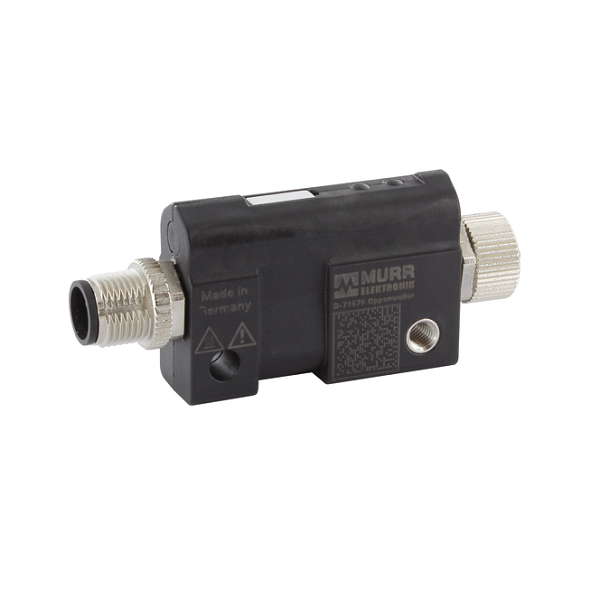

Bộ chuyển đổi IO-Link / analog 10VDC 5000-00501-2210000
– AO 16Bit, U -10…+10V, M12
– IO-Link V1.1, Class A
– IP65, IP67
Bộ chuyển đổi IO-Link / analog 10VDC 5000-00501-2210000: được sử dụng để kết nối từ IO-Link master đến actuator analog một cách dễ dàng

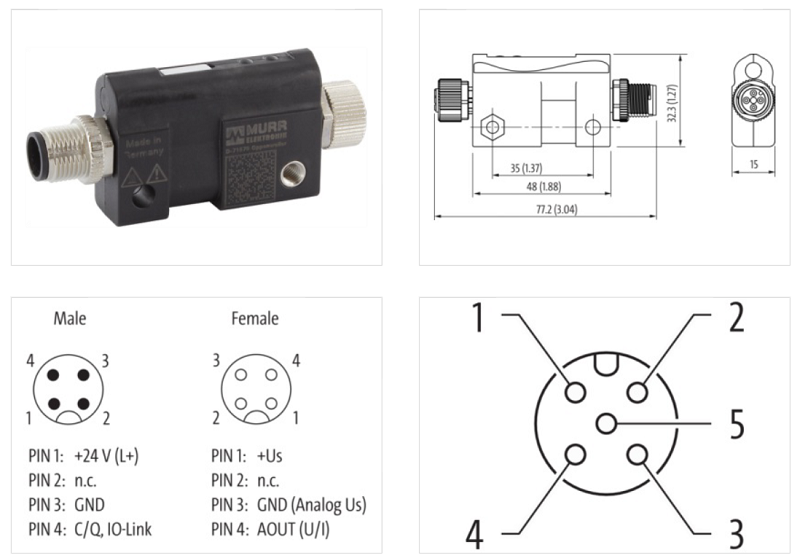

– IO-Link: connector M12 male 4 pin, A-cod.
– Analog output -10…+10V: connector M12 female 4 pin, A-code
– Cáp IO-Link không cần lớp chống nhiễu
Thông số kỹ thuật – Bộ chuyển đổi IO-Link / analog 10VDC 5000-00501-2210000
| Material short text | IOL AO-U-V2-10V-BIP |
|---|
| Norm operating voltage | IEC/EN 61131-2 |
|---|---|
| Operating voltage DC | 24 V |
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Operating voltage UA DC | 24 V |
| Current consumption max. | 19 mA |
| Type Output | 2-, 3-, 4-wire technology |
|---|---|
| Output current max. | 0,2 A |
| Parameterizable input averaging filter process data | Yes |
| Conversion time analog output max. | 5 ms |
| Port Class | A |
|---|---|
| IO-Link revision ID | V1.1 |
| IO-Link transmission rate | COM2 (38.4 kbit/s) |
| IO-Link process data length output | 2 bytes |
| IO-Link cycle time min. | 2,3 ms |
| Temperature control | Yes |
|---|---|
| Diagnostic via IO-Link | Yes |
| Diagnostic via LED | Yes |
| LED display | Ethernet connection/data traffic |
| IO-Link events | Undervoltage supply, lower limit, upper limit, Overvoltage supply, Overtemperature, Device defect |
| Degree of protection (EN IEC 60529) | IP67, IP65 |
|---|---|
| Invers-polarity protection | Yes |
| Over voltage protection | Yes |
| Short circuit protection sensor supply | Yes |
| Short-circuit protection output | Yes |
| Resistance to loads with regenerative power | Yes |
| Material housing | Plastic |
|---|
| Height | 32,3 mm |
|---|---|
| Width | 77,2 mm |
| Depth | 15 mm |
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 70 °C |
| Ambient temperature (storage, transport) | -40 °C |
