Bộ chuyển đổi giao thức Hilscher NT 100-RE-EN 1712.110
– Master cho tối đa 200 EtherCAT Slaves, 128 PROFINET IO-Devices, 64 EtherNet / IP Adapters, 511 Sercos Slave
– Thời gian chuyển đổi dữ liệu I/O ngắn nhất dưới 10 ms
– Nguồn cấp: 24 V DC ± 6 V
– Bộ nhớ: 8 MB SDRAM
– Kích thước: 100 x 52 x 70 mm
– IP20

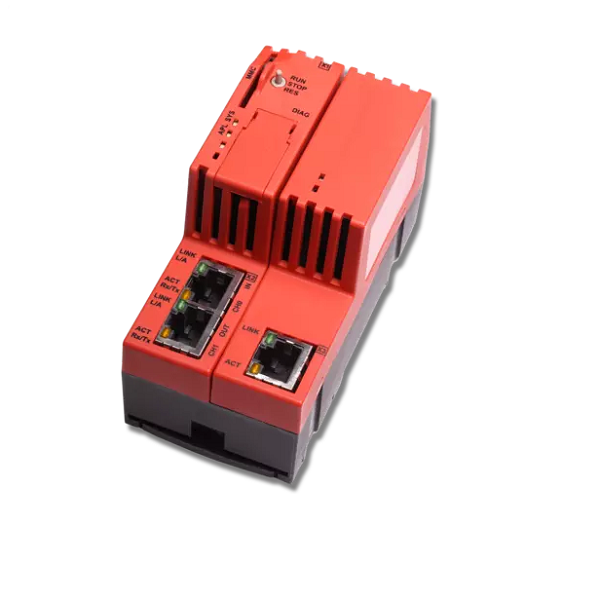

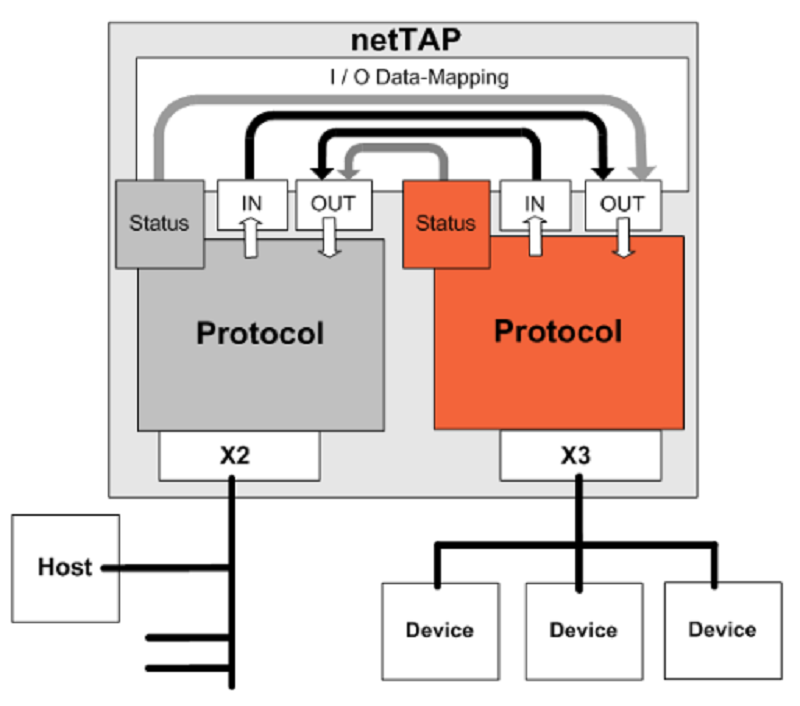

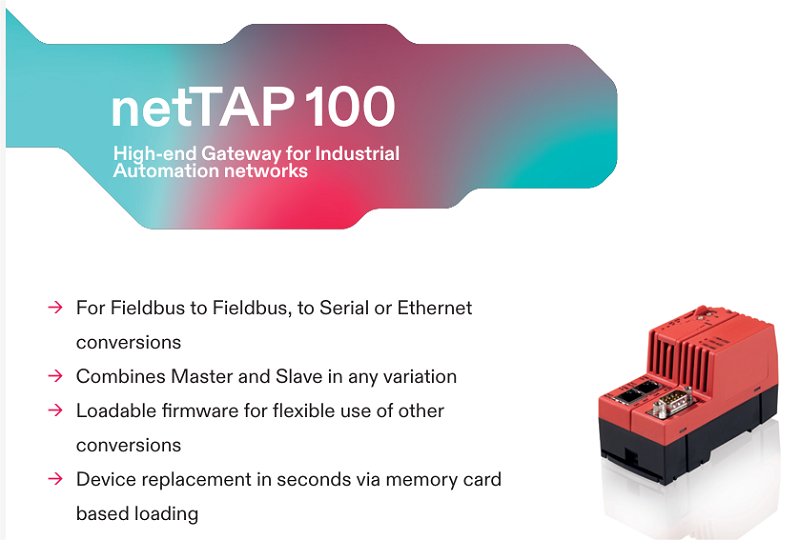

Bộ chuyển đổi giao thức Hilscher NT 100-RE-EN 1712.110 là một gateway công nghiệp được thiết kế để chuyển đổi giữa các giao thức Ethernet thời gian thực khác nhau
– Master cho tối đa 200 EtherCAT Slaves, 128 PROFINET IO-Devices, 64 EtherNet / IP Adapters, 511 Sercos Slave
– Thời gian chuyển đổi dữ liệu I/O ngắn nhất dưới 10 ms
– Nguồn: 24 V DC ± 6 V
– Bộ nhớ: 8 MB SDRAM
– Kích thước: 100 x 52 x 70 mm
Thông số kỹ thuật – Bộ chuyển đổi giao thức Hilscher NT 100-RE-EN 1712.110

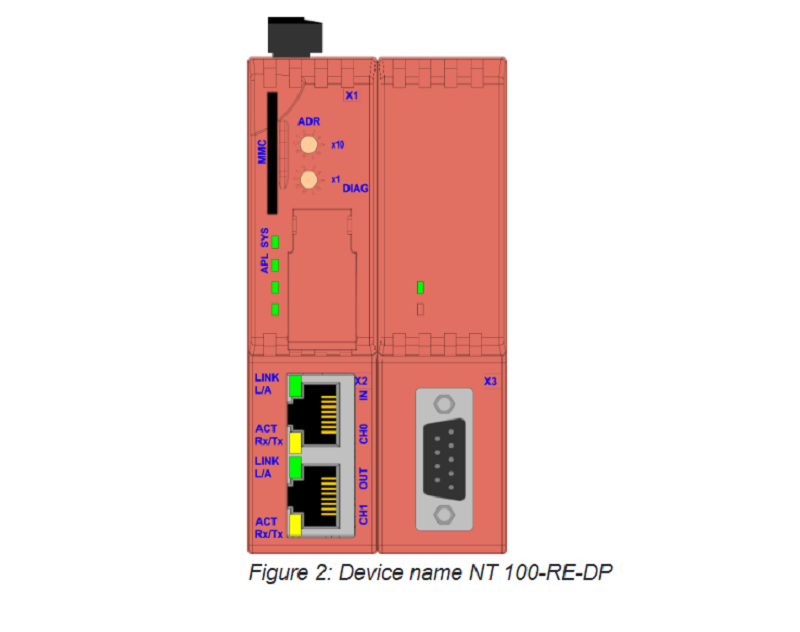

| Product | Product name | NT 100-RE-EN |
| Part number | 1712.110 | |
| Brief description | Gateway Real-Time-Ethernet to Ethernet | |
| Communication controller | netX | netX 100 |
| Integrated Memory | RAM | 8 MB SDRAM |
| FLASH | 4 MB serial Flash | |
| Memory card | Type and size | SD or MMC card, max. 2 GByte |
| Power supply | Supply voltage | 24 V DC ± 6 V |
| Maximum Current at 24 V (typically) | 130 mA | |
| Typical power consumption | 3,2 W | |
| Connector | Mini-COMBICON, 2-pin | |
| Reverse voltage protection | yes | |
| Requirement to the power supply | For UL compliant usage: Device shall be supplied by an isolated voltage source | |
| Communication interface X2 | Communication standard | Ethernet |
| Interface type | 100BASE-TX or 10BASE-T, isolated | |
| Connector | 2 * RJ45 | |
| Communication interface X3 | Communication standard | Ethernet |
| Interface type | 100BASE-TX or 10BASE-T, isolated | |
| Connector | 1 * RJ45 | |
| Diagnostic interface | Type | USB |
| Connector | Mini-USB, 5-pin | |
| Displays | LED displays | SYS System status Duo LED yellow/green |
| APL Application status Duo LED green/red | ||
| LINK Link LED green | ||
| ACT Activity LED yellow | ||
| LINK Link LED green (right) | ||
| ACT Activity LED yellow (right) | ||
| Permitted ambient conditions | Ambient temperature (operation) | 0 … + 60 °C |
| Humidity | no condensation permitted | |
| Pollution degree | For UL-compliant usage: Device must be used in a pollution degree 2 environment | |
| Altitude | 0 … 2000 m | |
| Device | Dimensions (L x W x H) | 100 x 52 x 70 mm (without connector) |
| Weight | appr. 150 g | |
| Degree of protection | IP 20 | |
| Mounting | on DIN rail EN 60715 | |
| Configuration | Configuration software | SYCON.net |
| Conformity | RoHS | Yes |
| UL certification | UL | The device is UL 508 certified |
| UL file | UL-File No E334100 | |
| Conformance with EMC directives | CE sign | Yes |
| UKCA sign | Yes | |
| Emission | CISPR 11 Class A | |
| Immunity | EN 61131-2 / BS EN 61131-2 | |
| Electrostatic discharge (ESD) according to EN 61000-4-2 / BS EN 61000-4-2 (Air discharge method) | ± 8 kV, Criterion A | |
| Electrostatic discharge (ESD) according to EN 61000-4-2 / BS EN 61000-4-2 (Contact discharge method) | ± 4 kV, Criterion A | |
| Fast transient interferences (Burst), according to EN 61000-4-4 / BS EN 61000-4-4 | ±2.5 kV Criterion A | |
| Surge voltage, according to EN 61000-4-5 / BS EN 61000-4-5 (Communication and data lines) | ±1.2 kV Criterion A |
