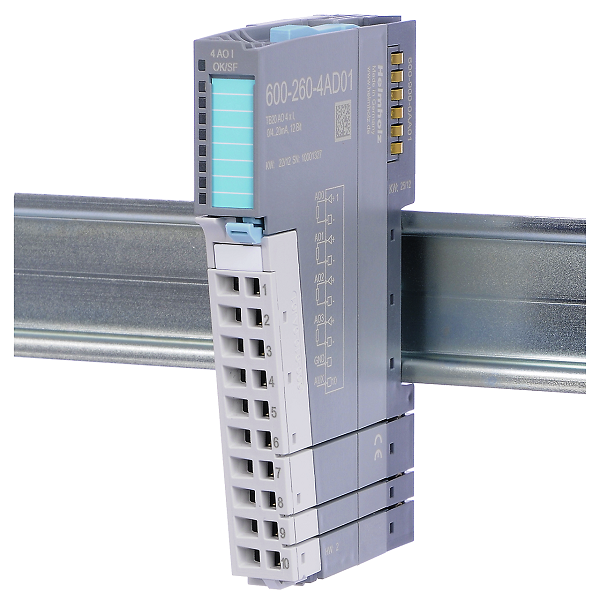

Analog Output Module 4AO 12bit 600-260-4AD01 là mô-đun ngõ ra analog 4 kênh 12bit được sử dụng cho hệ thống I/O TB20 của Helmholz
– 4 kênh ngõ ra analog: 0-20 mA/ 4-20 mA, 12 bit
– Có đèn LED cảnh báo màu đỏ
– Tháo lắp “nóng”
Analog Output Module 4AO 12bit 600-260-4AD01

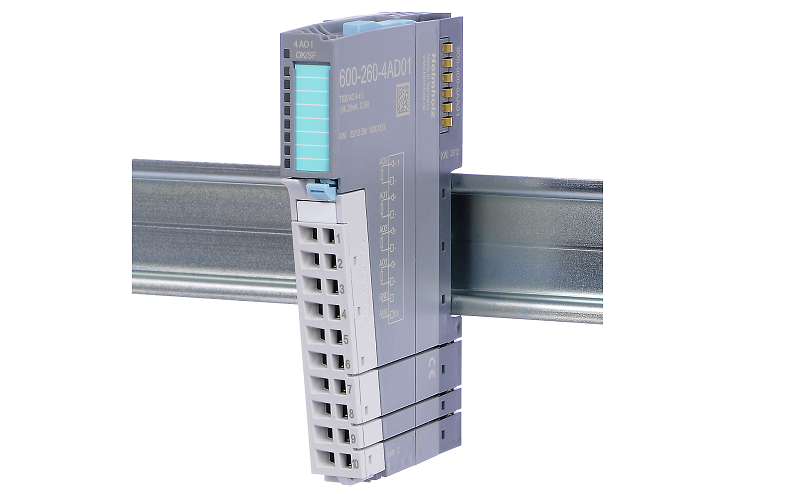

Helmholz Analog Output Module 4AO 12bit 600-260-4AD01 – mô-đun analog output 4 kênh cho TB20
– 4 kênh ngõ ra analog: 0-20 mA/ 4-20 mA, 12 bit
– Có đèn LED cảnh báo màu đỏ
– Có thể tháo lắp “nóng”
Thông số kỹ thuật Helmholz Analog Output Module 4AO 600-260-4AD01
Analoge-output-module, I, 12 Bit 4x
General information
- Order number 600-260-4AD01
- Article name AO 4x I, 0/4 … 20 mA, 12 bit
- Scope of delivery AO 4x I, 0/4 … 20 mA, 12 bit
- Dimensions (DxWxH) 110 x 14 x 73 mm
- Weight Approx. 70 g
- Number of outputs 4
- Parameter configuration length 13 bytes
- General error indicator Red LED
- Hot-swap capable Yes
- Power dissipation Max. 3 W
Output
- Output ranges
- 0 … 20 mA,
- 4 … 20 mA
- Connection for actuators 2-wire connection
- Load resistance Max. 600 ohms
- Inductive load Max. 100 mH
- No-load voltage max. 18 V
- Measurement resolution 12 bit
- Refresh time 0.2 ms
- Settling time
- 0.2 ms for resistive loads,
- 2.2 ms for capacitive loads,
- 0.5 ms for inductive loads (<=1 mH),
- 3.3 ms for inductive loads (<=3.3 mH)
- Diagnoses External reference voltage missing (L+), wire break, parameter assignment error
- Process alarms Upper and lower limit per channel
- Process alarms Upper and lower limit per channel
Electrical isolation
- from the backplane bus Yes
- Between the channels No
Current draw
- External Max. 100 mA
- Internal Max. 26 mA
Error limits
- Operational error limit in the entire temperature range ±0.5 % relative to the nominal range
- Basic error limit at 25 °C ±0.3 % relative to the nominal range
- Temperature error ±0.005 %/K relative to the nominal range
- Linearity error ±0.05 %/K relative to the nominal range
- Repeating accuracy in steady state at 25 °C ±0.05 %/K relative to the nominal range
- Repeating accuracy in steady state at 25 °C ±0.05 %/K relative to the nominal range
Ambient conditions
- Ambient temperature 0 °C … +60 °C
- Transport and storage temperature -20 °C … +80 °C
- Relative air humidity 95 % r H without condensation
- Protection rating IP 20
- Certifications CE, UL
UL
- Surrounding Air Temperature 0 °C … +60°C
- Pollution degree 2
CE
- Noise immunity DIN EN 61000-6-2 “EMC Immunity”
- Interference emission DIN EN 61000-6-4 “EMC Emission”
- Vibration and shock resistance DIN EN 60068-2-6:2008 „Vibration“, DIN EN 60068-2-27:2010 „Shock”
