Xelity – Unmanaged/Managed Switches Gigabit

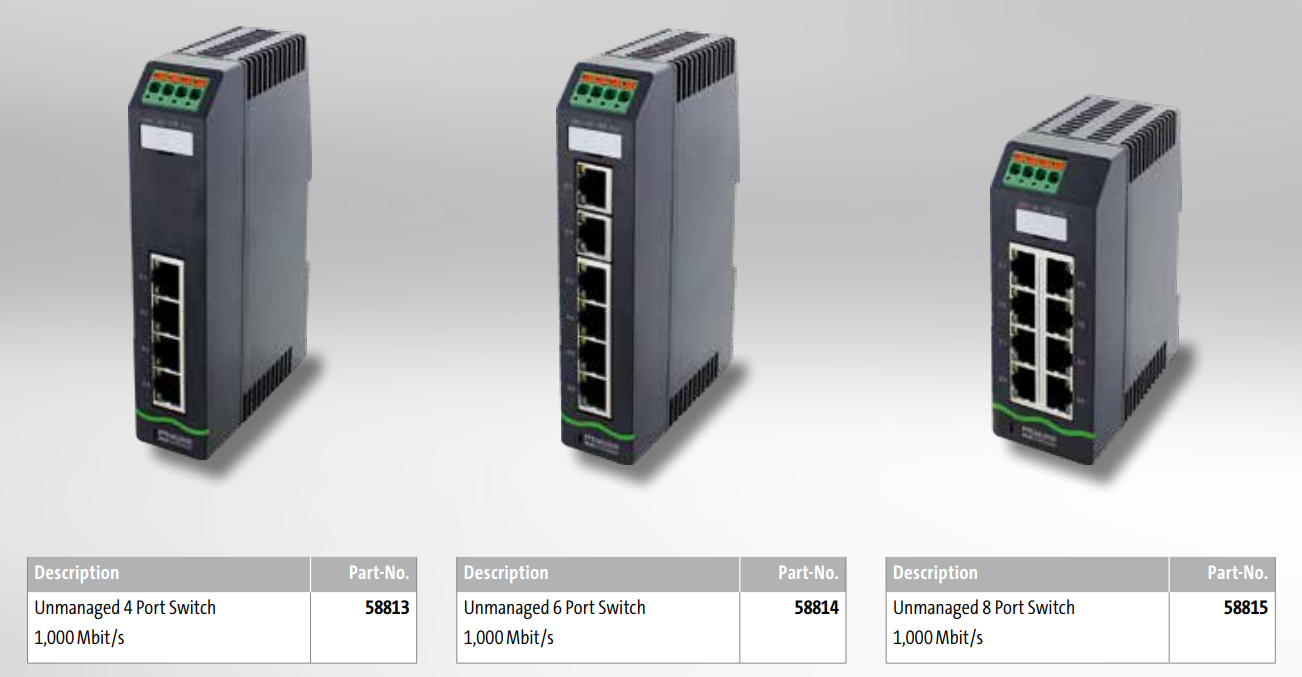

Xelity unmanaged switch

Unmanaged switches are ideal for any network where configuration or diagnostic capabilities are not important. They are quick and easy to install and available in a large variety of styles.

The new XELITY switches are produced at Murrelektronik’s headquarters in Oppenweiler. This is a guarantee for high-quality, 100% tested and technologically trend-setting products.
„ Robust plastic housing
„ Narrow design
„ Less than 150 mm high
„ DIN rail mounting

*** Features
– No programming effort or expenses
– Plug & Play – instant commissioning
– Easy device replacement
– Large variety
– Prioritization of PROFINET telegrams
– Profinet, Ethernet, Ethernet/IP
– UL approved
——————————————————————————–

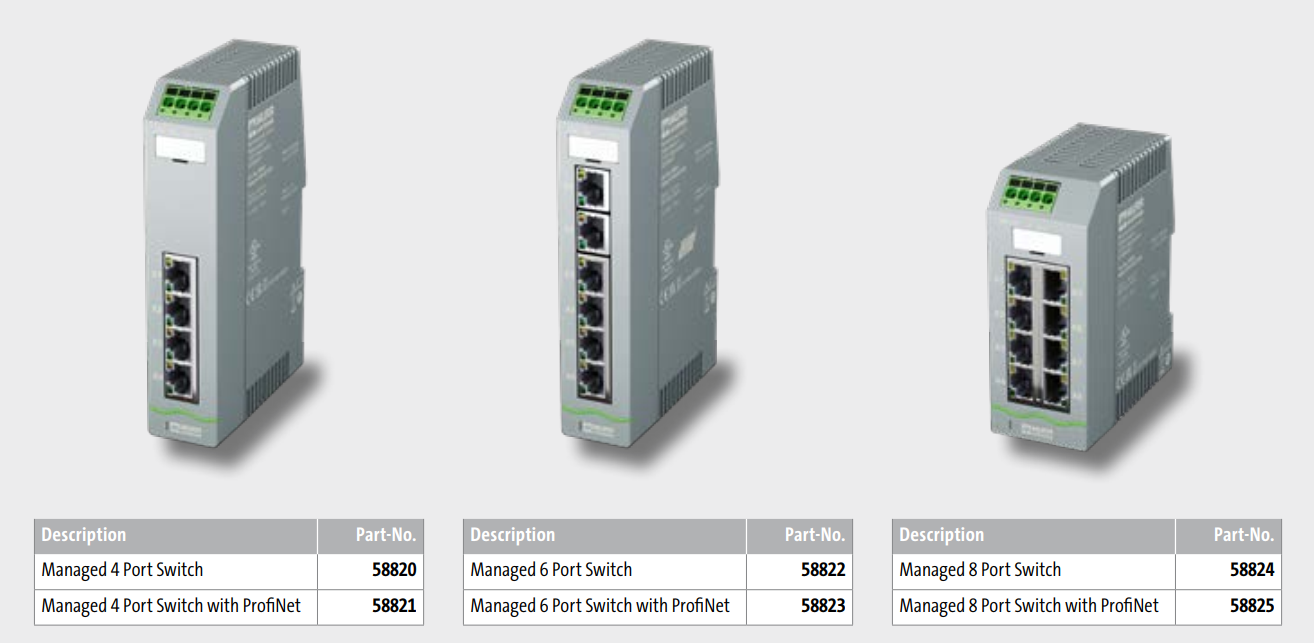

Xelity managed switch
Murrelektronik’s IP20 Managed Switches allow Ethernet devices communicate with each other via network connections. They give the network the
option of setting up different topologies, like star or tree.

In addition, the switches can perform other tasks including error analysis or network diagnostics. They optimize data transmission and provide network control through remote access.

The ProfiNet connection in the switch and configuration tool integration (TIA Portal via a GSDML file) simplify installation. Equipped with the latest Gigabit technology, your network is ready to handle future increases in data volumes.
Our IP20 Managed Switches are available with or without ProfiNet, the open Industrial Ethernet standard for automation. ProfiNet uses TCP/IP and IT standards and enables the integration of fieldbus systems.
„ VLAN management
„ SD card slot on the back, for saving the configuration
„ NAT (Network Address Translation) for Non-ProfiNet switches
„ TIA portal integration via GSDML file for ProfiNet switches
„ Fast Gigabit data transfer rate

*** Features
– Easy implementation via TIA portal using a GSDML file
– Configuration in Step7, TIA portal and PC Worx
– Complete integration of the switch as PROFINET user
– In case of device replacement, the device is integrated automatically through the PROFINET name assignment (automatic reconfiguration)
– Implementation of ring structures through MRP ring formation
– Prioritization of PROFINET telegrams
– Protocols: DHCP, SNMP (v1, v2c, v3), RSTP, STP, LLDP, NTP, RMON, SSH (CLI)
– Remote Service with OpenVPN Interface
– UL and PROFINET approved



“Made in Germany!”

Xelity – Unmanaged/Managed Switches Gigabit
