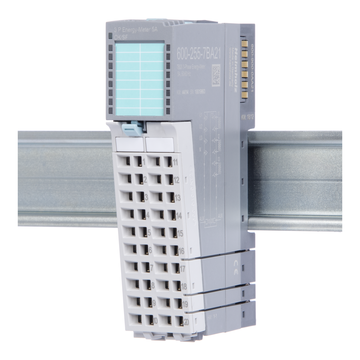

TB20 – Energy meter module
The energy meter function module can be used to measure all important current and voltage measurement values on 230 V AC networks.
The energy meter function module can be used to measure all important current and voltage measurement values on 230 V AC networks. Input voltages (3 phases + N) can be connected directly to the module.
In addition to general status information, the module’s configuration can be used to show up to 7 readings in the input image table.
In the event of a system failure, the controllable meter’s values will be stored in non-volatile memory.
Specifications:
- Measures current, voltage, power, and energy
- 1 three-phase or 3 single-phase
- 3-wire and 4-wire voltage measurements
- Measures real, reactive, and apparent power and energy
- Energy meter with gate function; values are storedin the module in a non-volatile manner
- Configurable process input image table
- Diagnostic messages
- Current measurement via 5 A current transformer (secondary current)
Detail information of TB20 Energy meter
