– 100% Die-cast Aluminium unit
– Stainless steel Detector wing
– Simple, Tough, More reliable
– Drip-proof/ Dust-proof IP66
– Small, Cost-effective, Easily mounted

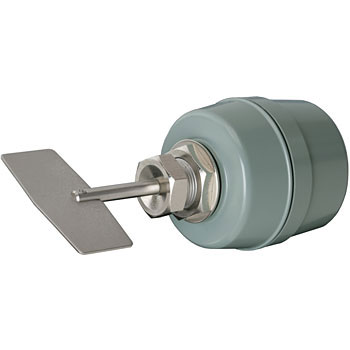

Level Switch || LV-300
– Drip-proof/ Dust-proof IP66
– Small, Cost-effective, Easily mounted
– Order code: LV-300 (85, 100, 150, 200, 250 mm)
Level Switch – LV-300

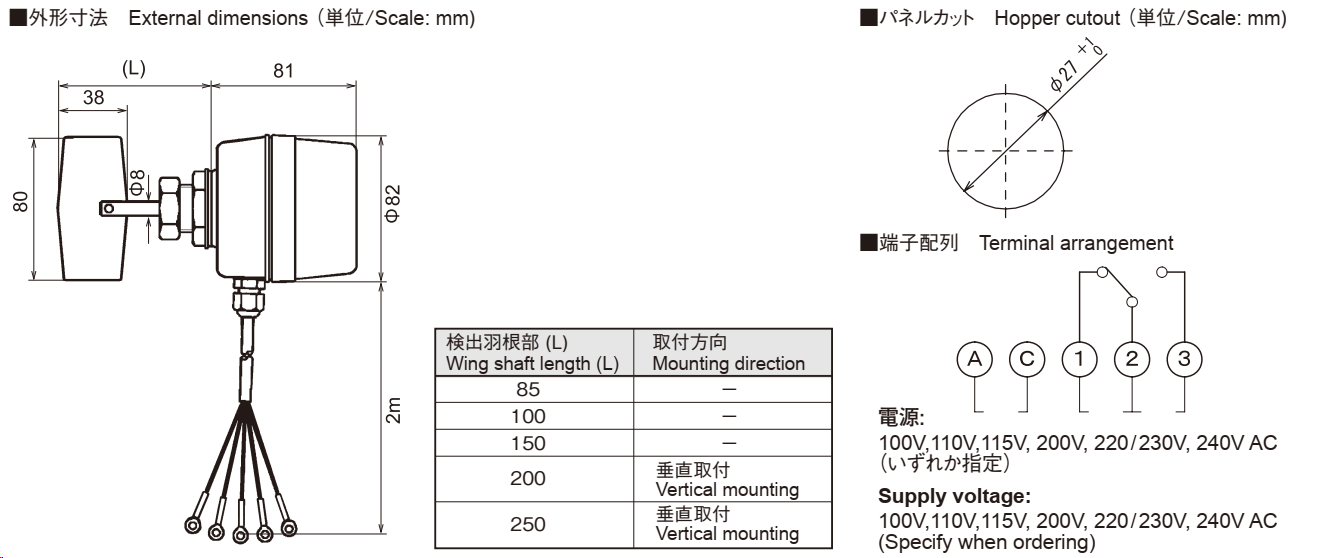

Specifications
| Detecting torque | 0.049N-m(0.5kg-m) or more (Fixed) |
| RPM | 1rpm(min-1)(60Hz) |
| Action | Detector wing revolution by motor |
| Supply voltage | 100V, 110V, 115V, 200V, 220V, 230V, 240V AC 50/60Hz Please specify. |
| Allowable voltage fluctuation | Within +/-15% of the rated voltage |
| Contact capacity | 3A 220V AC (resistive load) |
| Ambient temperature |
0 to 55 degree C |
| Wing shaft length |
(L)=85mm, 100mm, 150mm, 200mm, 250mm Please specify. |
| Mounting | Fastened by nut (panel board: Max. 7mm) |
| Material | Case: Aluminium die-cast Cover: Aluminium die-cast Nut: Stainless steel Detector shaft: Stainless steel, +/-8.0mm Detector wing: Stainless steel t1.5mm |
| Lead wire | 5-wire cabtyre cord, Length: 2m |
| Weight | (L)=85mm: Approx. 645g (L)=100mm: Approx. 650g (L)=150mm: Approx. 670g (L)=200mm: Approx. 690g (L)=250mm: Approx. 710g including 5-wire cabtire cord. |
| Color | Case, cover: 7.5BG4/2.5(Munsell scale) |
| Dust-proof/ Drip-proof |
IP66 (excluding parts from the mounting nut to detector wing) |
