KVT 80 grey, Split cable glands

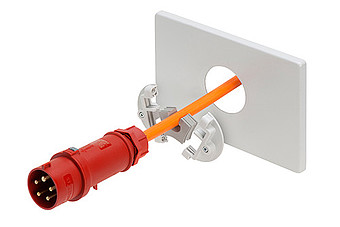

The KVT 80 split cable glands are designed for routeing and sealing pre-terminated cables
The KVT 80 can be fitted to a wall thickness from 1.5 mm to 10 mm.













KVT 80
– The KVT 80 split cable glands are designed for routeing and sealing pre-terminated cables.
– By connecting the two half shells via attached screws, the grommets provide sufficient pressure on the routed cables to obtain a high degree of    strain relief.
– With a cut-out size of 80 mm in diameter KVT 80 are especially suited for large round connectors
– The KVT 80 can be fitted to a wall thickness from 1.5 mm to 10 mm.

Specifications

  • IP rating: IP54
  • UL Type: 12
  • Material: Polycarbonate
  • Colour: grey (similar RAL 7035)
  • Flame class: UL94-V0, self-extinguishing
  • Temperature (°C): -30 – 100 °C (static)
  • Properties: Halogen free, Silicone free
  • Mounting type: Screw type mounting
