KEL-DPU 24 grey

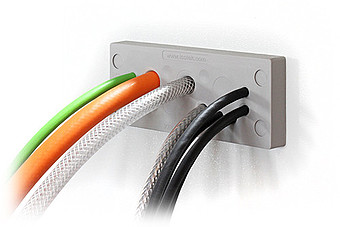

KEL-DPU 24 cable entry plates are designed to route and seal standard cables (from 3.2 mm to 20.5 mm in diameter) in limited space with protection class IP65 / IP66.
Simply put a small slit in the thin membrane and push standard cables through.









KEL-DPU 24 grey

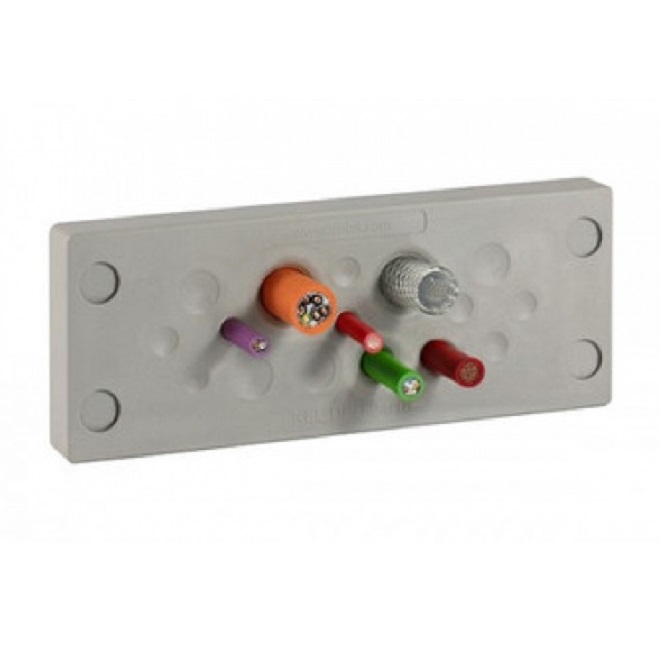

– KEL-DPU 24 cable entry plates are designed to route and seal standard cables (from 3.2 mm to 20.5 mm in diameter) in limited space with protection class IP65 / IP66.
– The KEL-DPU is particularly characterised by its reinforced frame and the increased strain relief of the routed cables.
– The KEL-DPU 24 matches exactly the cut-out dimensions of 24-pole standard industrial connectors. The assembly of the KEL-DPU 24 with cables or pneumatic hoses can be done within seconds.
– Simply put a small slit in the thin membrane and push standard cables through.
– ST-B Plugs can be used for sealing pierced membranes if cables have been remove.

Specifications

  • IP rating: IP65, IP66, IP67, IP68
  • UL Type: 4X, 12
  • Material: Elastomer
  • Material fire penetration seal: Graphite
  • Material base frame: Polypropylene
  • Colour: grey (RAL 7035)
  • Fire barrier standards (E/EI): E45, EI30
  • Properties: Intumescent (foaming), Halogen free, Silicone free
  • With strain relief
  • Test standard: EN 45545-2, EN 45545-3, EN 1363-1
