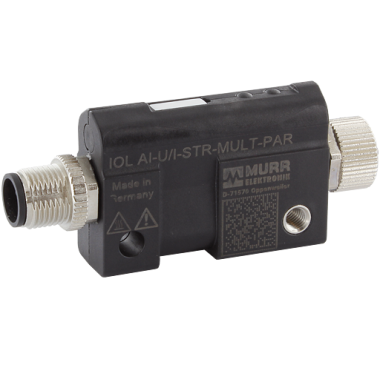

IO-Link analog output converter
Order code: 5000-00501-2300001
The IO-Link analog converter from Murrelektronik can be used to connect analog sensors and actuators easily to the IO-Link master.
IO-Link Analog Converter Features:
The quickest, easiest and most economical way to do this is by using the IO-Link analog converters from Murrelektronik. They convert the analog signal to the IO-Link protocol. This allows a wide range of types of analog devices to be connected to an IO-Link master.

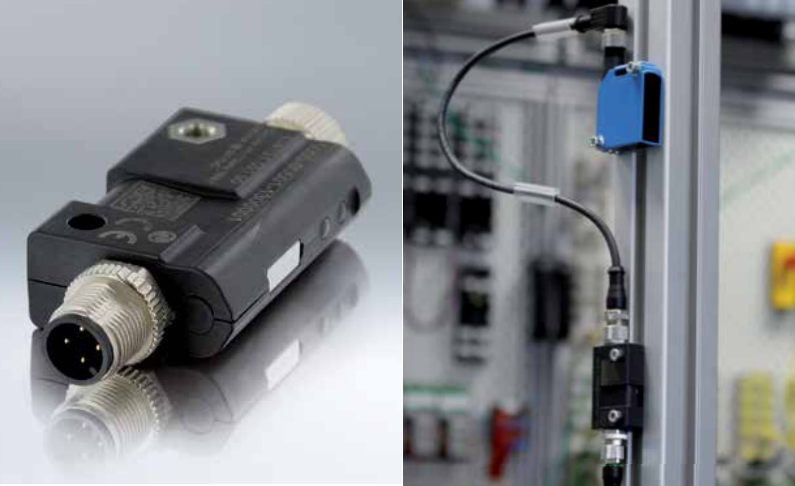

On-site installations

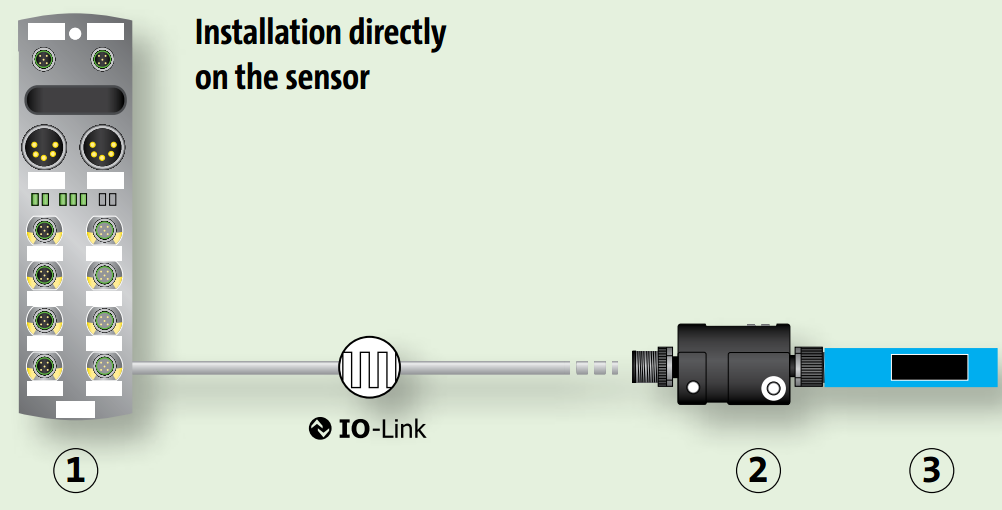

Installation directly on the sensor

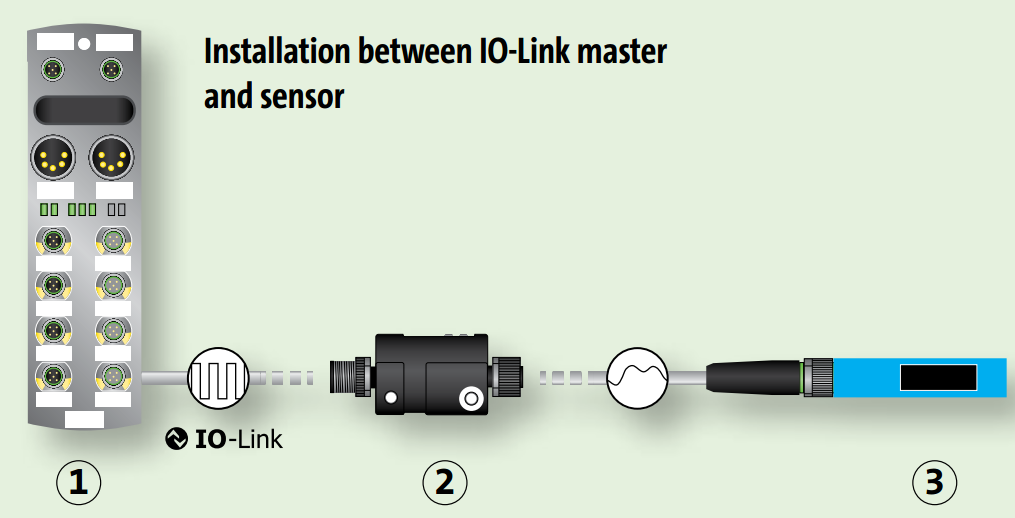

Installation between IO-Link master and sensor

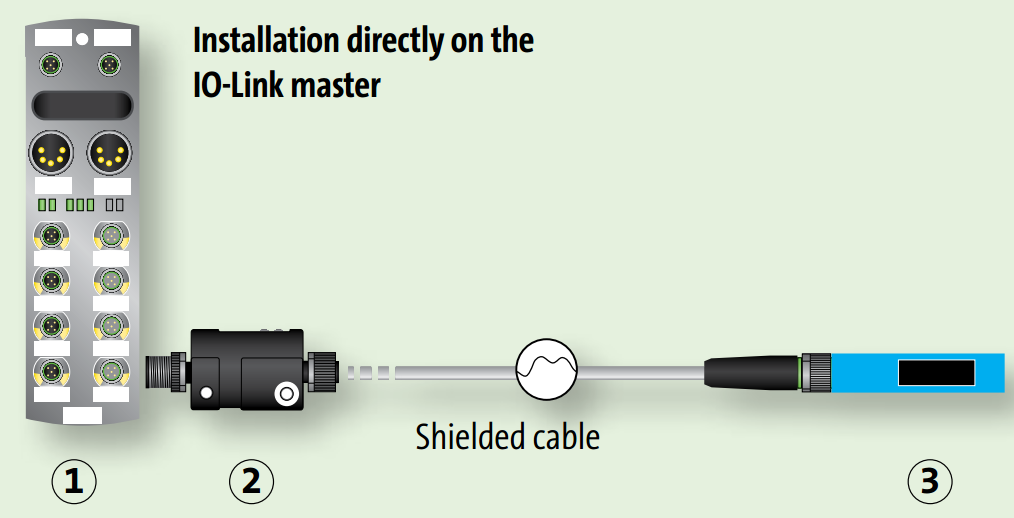

Installation directly on the IO-Link master
Website: Murr IO-Link
| IO-Link | M12 (male) 5-pole, A-coded |
|---|---|
| Analog output | M12 (female) 5-pole, A-coded, shielded |
| Operating voltage | 24 V DC (18…30 V DC) |
|---|---|
| Current consumption | max. 19 mA |
| Protection | IP65/IP67 |
|---|---|
| Material (housing) | Plastic |
| Labeling | Laser labelled |
| Temperature range | -30…+70 °C (storage temperature -40…+85 °C) |
| Dimensions H×W×D | 32.3×77.2×15 mm |
| Specification | IO-Link V1.1 |
|---|---|
| Operating modes | COM2 (38.4 kBit/s) |
| Port Class | A |
| Cycle time | min. 2.3 ms |
| Data width | 16 Bit / 2 Byte |
| Data format | Siemens S7 |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 200 mA |
|---|---|
| Input range (analog) | 0…20 mA, 4…20 mA, 0…10 V, -10…+10 V |
| Valency | 348 nA, 348 nA, 179.4 µV, 358.9 µV |
| Resolution (analog) | 15 Bit + sign |
| Type | 2-, 3-, 4-wire technology |
| Accuracy | 0.10% (25 °C) |
| Temperature drift | 45 ppm/°K |
| Conversion time (analog) | max. 5 ms |
| Output filter | yes, mean value formation, parameterizable N = 0…64 |
| Over voltage protection | 30 V DC |
| Measured value | Current/voltage |
|---|---|
| Diagnostics | lower limit, upper limit, over heated, supply over voltage, supply under voltage, defective device, sensor cable break, sensor supply over current, overrun |
| lower limit | 2 Byte |
| upper limit | 2 Byte |
| Mean value filter | 1 Byte |
| Reverse polarity protection module | yes, permanently |
|---|---|
| Short-circuit protection sensor | yes, permanently |
| feed back resistance | yes, permanently |
| Over voltage protection | 30 V DC |
| Communication status | via LED and IO-Link |
|---|---|
| Diagnostic via LED | yes |
| Diagnostic via IO-Link | yes |
| Monitoring – limit | yes |
| Monitoring – temperature | yes |
| Monitoring – over voltage | yes |
| Monitoring – under voltage | yes |
| Underride and overrun | yes |
| country of origin | DE |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879588416 |
| eClass | 27242601 |
| Packaging unit | 1 |
