Project for Medicine mixing system

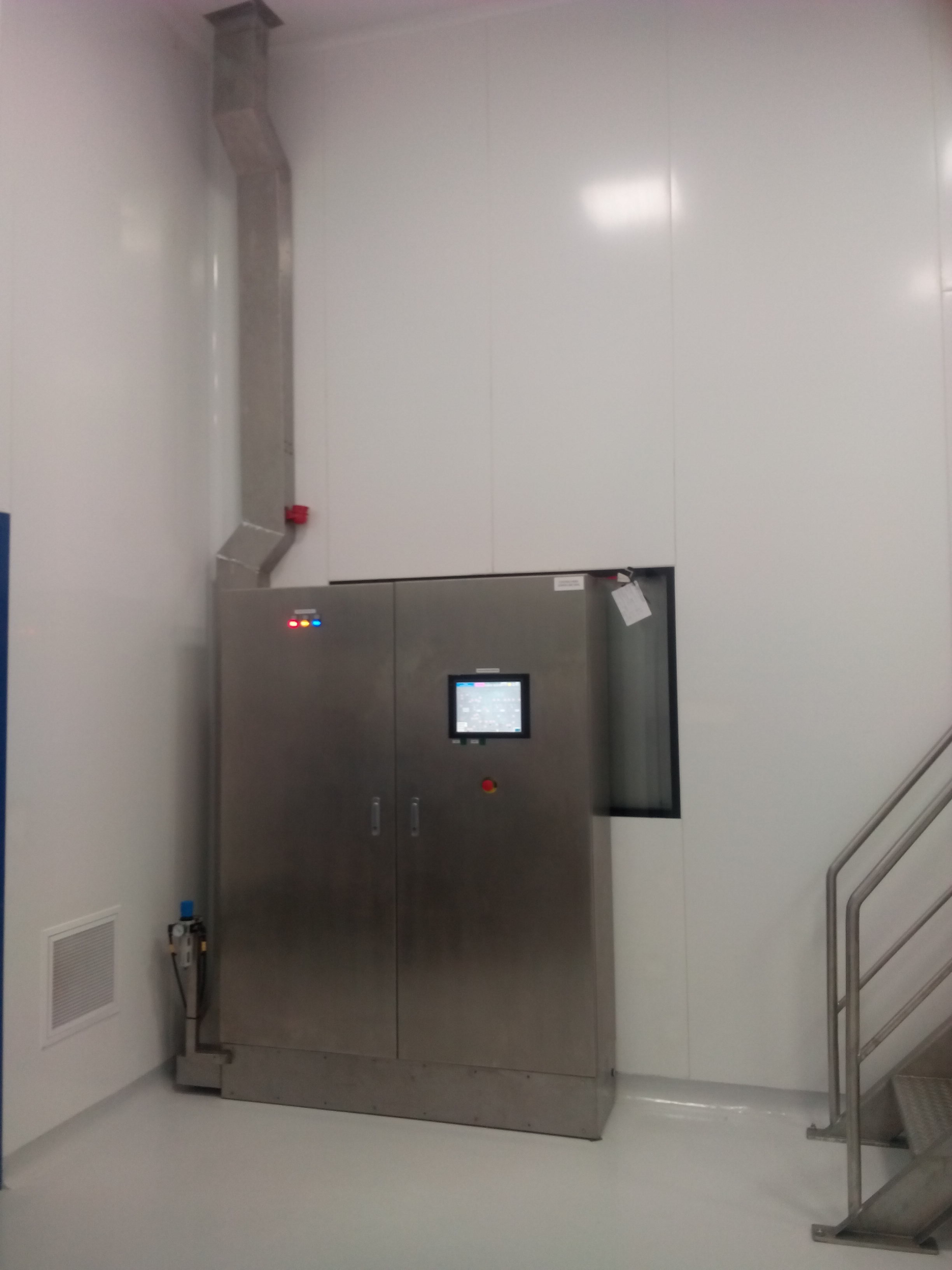

Control panel for medicine mixing system in pharmacy factory

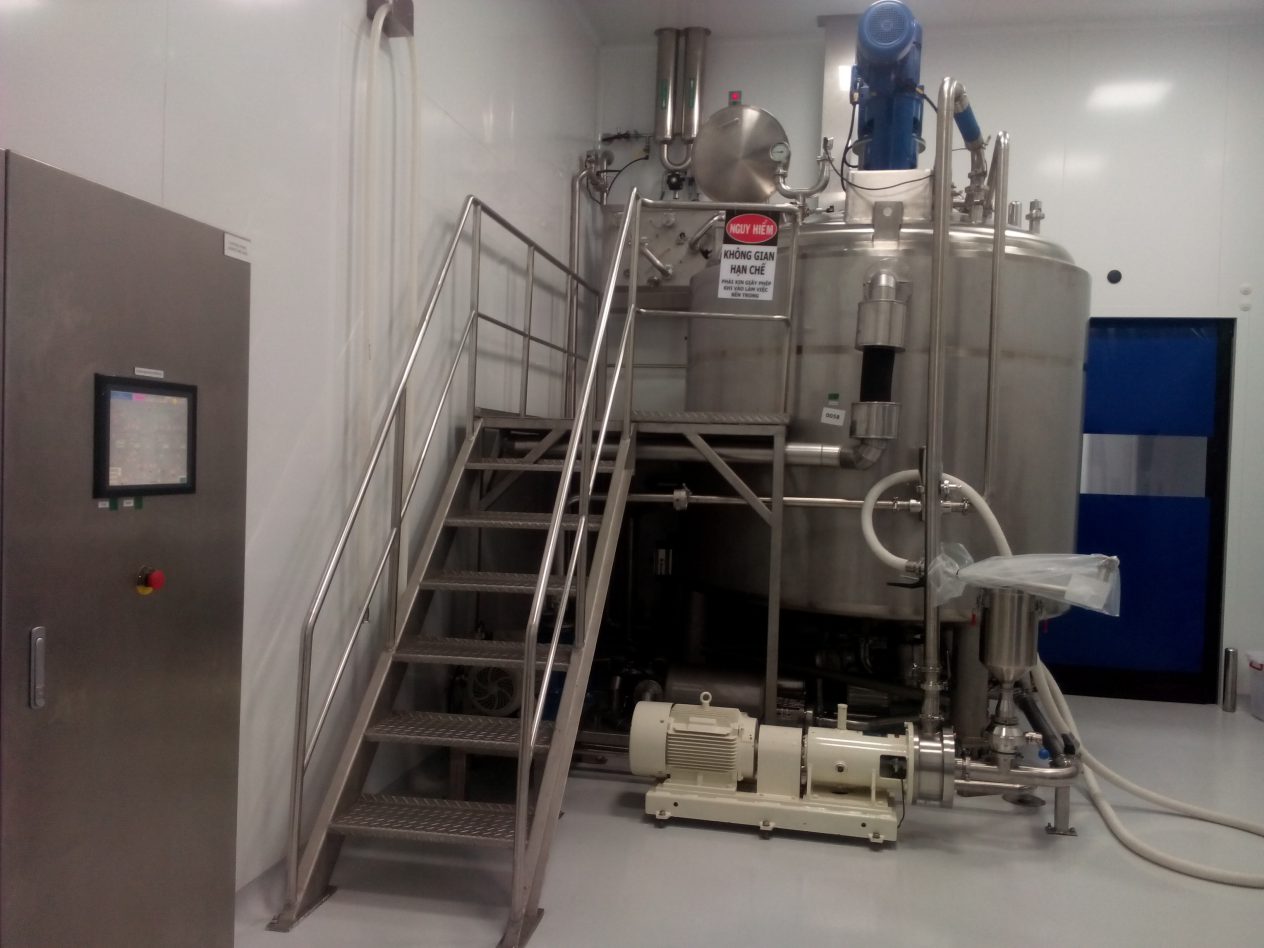

Supply 7 control panel (stainless steel) for controling 7 mixing system with tanks (use mixer motor & shear motor) and process (use pumps & valves system).

After mixing/ CIP (controlled by PLC/ HMI), data stored with designed form in SCADA PC for years. Any batch of data on SCADA can be accessed for view/ print any time.

Main devices used inside 7 control panels and 7 control boxes:

PLC & I/O (CJ2M), HMI (NS12, NS8) (Omron)
Valve modules (Festo)
PC and SCADA for 7 system (Omron)
