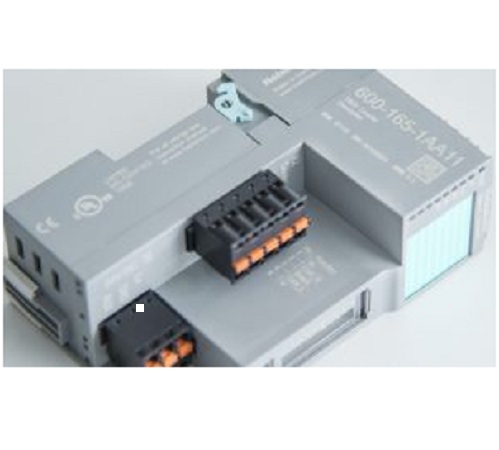

TB20 Update: DeviceNet™ bus coupler available
– With its new bus coupler for DeviceNet™ you connect your distributed periphery in a quick an easy to use way to your existing facilities.
– TB20 now supports six different fieldbus systems like PROFINET and EtherNet/IP.
– Multiple communication channels possible
– TB20 ToolBox is the main setup tool
Specifications
| General information | ||
|---|---|---|
| Order number | 600-165-1AA11 | |

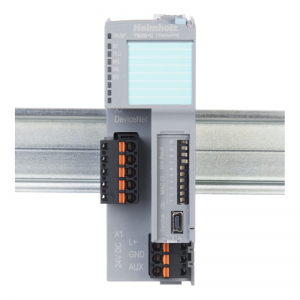

| Article name | TB20-C, DeviceNet Slave bus coupler | |
| Scope of delivery | Bus coupler DeviceNet Slave, 24 V power supply connector, bus cover element, base module | |
| Dimensions (DxWxH) | 110 x 35 x 73 mm | |
| Weight | Approx. 115 g | |
| DeviceNet interface | ||
| Number | 1 | |
| Protocol | DeviceNet | |
| Transmission rate | 125, 250, and 500 kbps | |
| I/O image size | 1024/1024 bytes | |
| Parameters per module | 120 bytes | |
| Connection | DeviceNet Open Connector | |
| USB interface | ||
| Number | 1 | |
| Protocol | Full-speed USB 1.1 device | |
| Connection | Mini-USB | |
| Isolation voltage | 1.5 kV | |
| Electrical isolation | Yes | |
| Number of modules that can be connected in series | 64 | |
| Voltage supply | 24 VDC, 18–28 VDC | |
| Current draw | ||
| Current draw without modules (internal) | 75 mA | |
| Power supply for modules | 5 V DC, max 2.5 A | |
| Power dissipation | Max. 8 W | |
| Installation position | Any | |
| Ambient conditions | ||
| Ambient temperature | 0 °C … +60 °C | |
| Transport and storage temperature | -20 °C … +80 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Protection rating | IP 20 | |
| Certifications | CE, UL pending | |
| CE | ||
| Noise immunity | DIN EN 61000-6-2 “EMC Immunity” | |
| Interference emission | DIN EN 61000-6-4 “EMC Emission” | |
| Vibration and shock resistance | DIN EN 60068-2-8:2008 “Vibration”, DIN EN 60068-27:2010 “Shock“ | |
| RoHS | Yes | |
| REACH | Yes | |
600-165-1AA11
