NETLink PRO Compact, PROFIBUS Ethernet Gateway
Security function for access by TCP / IP protocol.
PLC protection feature can be enabled and disabled.
Easy to configure via web interface

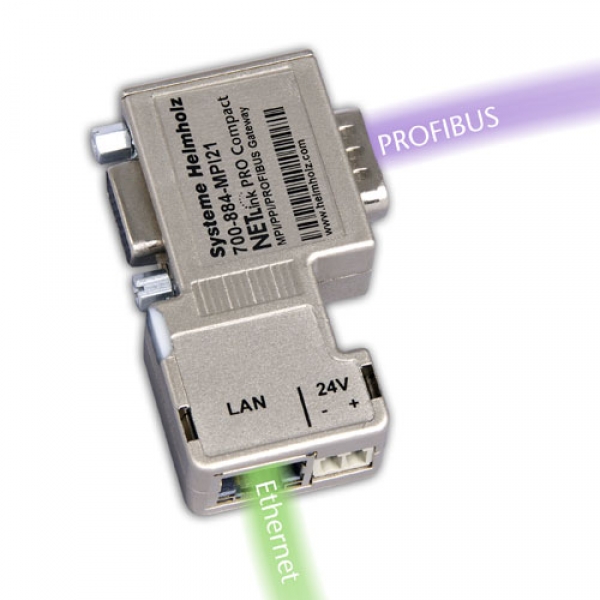

NETLink® PRO Compact, PROFIBUS Ethernet gateway
– The NETLink® PRO Compact combines flexibility with a compact design. Power is supplied to the NETLink® through the CPU of the automation device or externally with DC 24 V as an option.
The network connection can be used with any standard Cat-5 cable, making cable lengths up to 100 meters feasible without additional components.
Features:
• RFC 1006 (ISO on TCP)
• CPU-to-CPU communication (with S7-300* and S7-400*)
• Power can be supplied by the CPU or, alternatively, by an external DC 24 V supply
• Support for all common S7 engineering tools
• Dynamic address assignment using DHCP
• Security functions for securing TCP/IP access
• PLC write protection feature can be enabled and disabled
• Up to 16 TCP connections
• Up to 32 MPI/PROFIBUS connections
• Easy configuration via web interface
• Variables can be monitored on a browser window
• Support for configuring slave parameters
• Electrical isolation for MPI/PPI/PROFIBUS
• MPI/PPI/PROFIBUS from 9.6 kbps to 12 Mbps
• For S7-200*, S7-300*, S7-400*
Specifications
| General information | ||
|---|---|---|
| Order number | 700-884-MPI21 | |
| Article name | NETL ink® PRO Compact | |
| Scope of delivery | NETL ink® PRO Compact, 3m Ethernet cable, Quick Start Guide, CD with software, and manual | |
| Dimensions (DxWxH) | 64 x 40 x 17 mm | |
| Weight | Approx. 110 g | |
| Communication interface | ||
| Number | 1 | |
| Type | 10 Base-T 100 Base-TX |
|
| Transmission rate | 10/100 Mbps autom. detection | |
| Physical layer | Ethernet | |
| Protocol | FDL, RFC 1006 | |
| Connection | RJ45 | |
| MPI/PPI/PROFIBUS interface | ||
| Number | 1 | |
| Type | RS485, isolated | |
| Transmission rate | max. 12 Mbps autom. detection | |
| Connection | SUB-D male connector, 9-pin. with PG interface and repeater | |
| Status indicator | 5 LEDs, 2 of them bi-color | |
| Voltage supply | 24 V DC, 18–30 V DC | |
| Current draw | Max. 200 mA with DC 24 V | |
| Ambient conditions | ||
| Ambient temperature | 0 °C … +60°C | |
| Transport and storage temperature | -20 °C … +80 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
700-884-MPI21
