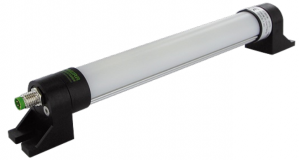

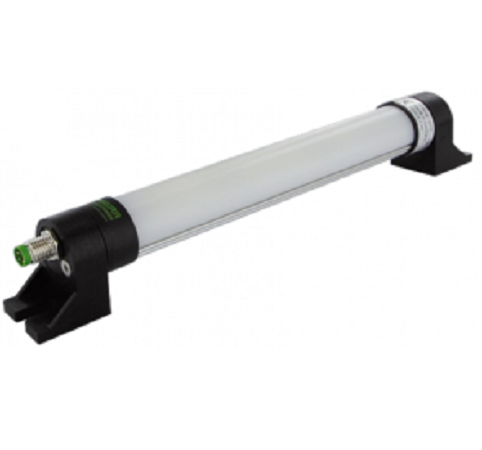

Murrelektronik || Modlight illumix Slim Line 24W
Art. No.: 4000-75800-1715024
Illumination angle> 120 °
Protection level of IP54
Modlight illumix Slim Line
24VDC operating voltage
24W type lamp capacity
Illumination angle> 120 °
Protection level of IP54

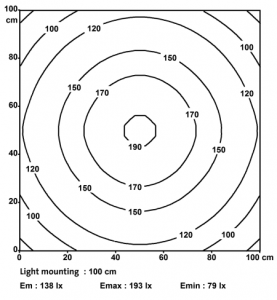

Brightness chart:
TECHNICAL DATA
| Operating voltage | 24 V DC (21.6…27.6 V DC) |
| Input current | 24 W |
| Connection | M8 (male) |
| No. of poles | 4-pole |
| Coding | A-coded |
| Light color | Daylight white, approx. 5500 K |
| Color reproduction (Ra) | > 80 |
| Luminaire light current | approx. 2520 lm |
| Luminaire light yield | approx. 105 lm/W |
| Lighting angle | > 120°
|
GENERAL DATA
| Relative humidity | 5…95% |
| Protection | IP54 |
| Safety class | III |
| Mounting method | rotatable |
| Screw head-Ø | max. 12 mm/M5 |
| Dimensions H×W×D | 34×918×24 mm (1.34×36.14×0.94 in) |
| Temperature range | -30…+50 °C |
| Material (housing) | Anodized aluminum |
| Material (light cover) | Diffuse polystyrene (PS) |
| Installation altitude | Operation up to 2 000 m |
| Vibration stress | 2…9 Hz/10 mm; 9…200 Hz/3 g |
| Shock load | 50 g, 11 ms |
