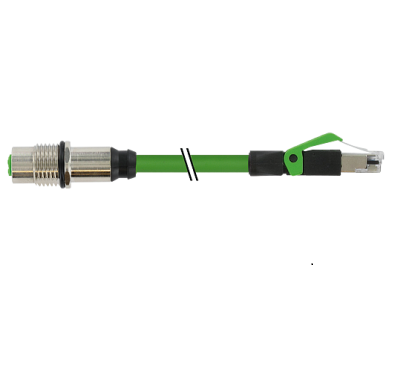

Flange M12 Female / RJ45 Male 0°
Art.No: 7000-44851-7940060
Flange female straight – male straight
M12 – RJ45, 4-pole, D-coded
Transmission up to 100 m
Ethernet CAT5
Flange female straight – male straight
M12 – RJ45, 4-pole
D-coded
shielded
8-pole partly used
Rear mounting
Transmission properties with channel transmission up to 100 m
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application.

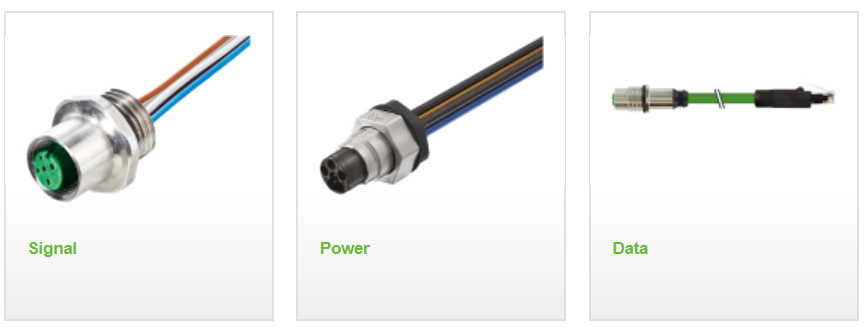

For more detail about cable signal, power and data as below:
FORM
| Form | 44851 |
CABLES
| No./diameter of wires | 2× 2× AWG22/7 (0.355) |
| Wire isolation | PE (wh, ye, bl, or) |
| Jacket Color | green |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 6.7 mm ±5% |
| Bend radius (moving) | 12× outer Ø |
| Temperature range (fixed) | -40…+80 °C |
| Temperature range (mobile) | -30…+70 °C |
| Cable identification | 794 |
| Approval (cable) | UL (AWM-Style 20233/10578), CSA; CE |
| Cable weight [g/m] | 75,87 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Construction (core) | 7× 0.254 mm |
| Diameter (core) | 2× 2× AWG22/7 (0.355) |
| AWG | similar to AWG 22 |
| Material (wire isolation) | PE |
| Wire-Ø incl. isolation | 1.55 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Shield | yes |
| min. 85% | |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.7 mm ±5% |
| Color (jacket) | green |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| thermal resistance | flame retardant |
| Nominal voltage | 300 V |
| Temperature range (fixed) | -40…+80 °C |
| Temperature range (mobile) | -30…+70 °C |
| Bend radius (fixed) | 6× outer Ø |
| Bend radius (moving) | 12× outer Ø |
TECHNICAL DATA
| Operating voltage | max. 60 V DC |
| Operating voltage (only UL listed) | max. 30 V DC |
| Rated surge voltage | 1.0 kV |
| Operating current per contact | max. 1.5 A (20 °C) |
| Material group | IEC 60664-1, category I |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Coding | M12, D-coded |
| Locking of ports | Hexagonal nut (M16×1.5 mm) |
| Compression gland | M16 (SW19) |
| Protection | IP67 (M12) – IP20 (RJ45) |
| Protection NEMA | 3, 4, 6P (UL 50E) (M12) |
| Locking material | Brass, nickel plated |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | 10 mm |
