FLEXtra® FO, PROFIBUS Optical Hub
POF cable length * 65 m
PCF cable length * 250 m
PROFIBUS transmission rate (9.6 kbps … 12 Mbps) automatically
FLEXtra® FO, PROFIBUS optical hub

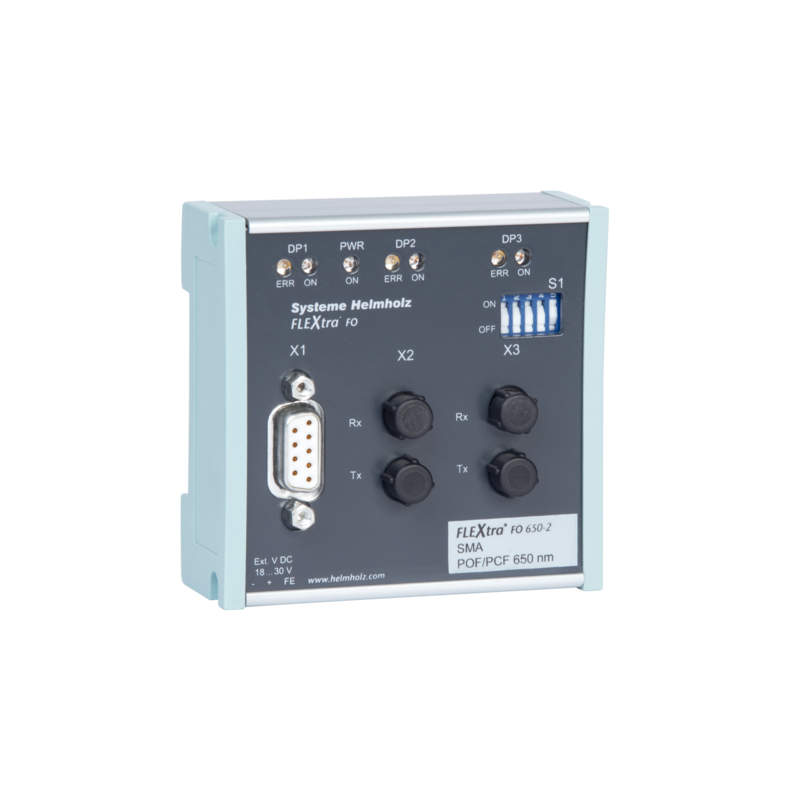

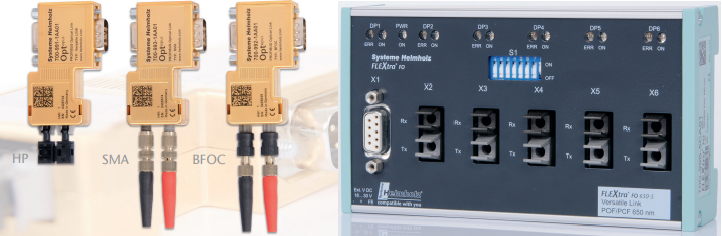

The FLEXtra® FO is a PROFIBUS repeater expanded by 2 (with the FLEXtra® FO 650-2) and 5 (with the FLEXtra® FO 650-5) optical MPI/PROFIBUS segments.
It enables conversion of electrical MPI/PROFIBUS interfaces into optical MPI/PROFIBUS interfaces.
Features
• PROFIBUS repeater with 2/5 optical MPI/PROFIBUS segments
• Perfect to combine with existing transmission systems
• PROFIBUS baud rate (9.6 kbps … 12 Mbps) automatic detection
• Switching off of individual or all segments possible
• For use in EMC-hazardous environments
• Suitable for POF* and PCF* FO
• Available with 3 different optical interfaces (SMA, BFOC**, Versatile Link***)
• Range:
– Cable length POF* 65 m
– Cable length PCF* 250 m
• Display of traffic/bus errors for each FO and PROFIBUS segment
Specifications
| General information | ||
|---|---|---|
| Order number | 700-996-5BA01 | |

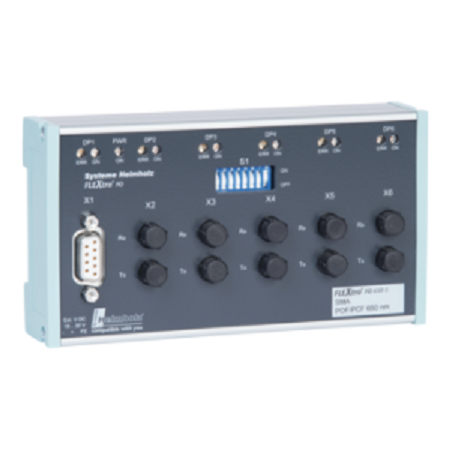

| Article name | FLEXtra® FO 650-5, PROFIBUS Optical Hub, SMA, 650 nm, POF/PCF | |
| Scope of delivery | FLEXtra® FO 650-5, instructions | |
| Dimensions (DxWxH) | 35 x 137 x 72 mm | |
| Weight | Approx. 250 g | |
| PROFIBUS interface | ||
| Number | 1 | |
| Protocol | PROFIBUS-DP | |
| Transmission rate | 9.6 |19.2 | 45.45 | 93.75 |187.5 | 500 kbps 1.5 | 3 | 6 and 12 Mbps automatic detection |
|
| Connection | SUB-D female connector, 9-pin | |
| Optical interface | ||
| Number | 5 | |
| Wavelength | 650 nm | |
| Numerical aperture of the transmitting diode | 0.50 | |
| Integrable optical power | receiver sensitivity POF¹ 980/1000 μm | -7.5 dBm/-20 dBm | |
| Integrable optical power | receiver sensitivity PCF¹ 200/230 μm | -18 dBm/-22 dBm | |
| Overdrive limit of the receiver | -3 dBm | |
| Bridgeable distance POF¹ 980/1000 µm (160 dB/km) | 0 … 65 m | |
| Bridgeable distance PCF¹ 200/230 µm (10 dB/km) | 0 … 250 m | |
| Connection | SMA | |
| Status indicator | 13 LEDs, function status | |
| Input voltage | ||
| Voltage supply | 24 V DC, 18–30 V DC | |
| Electrical isolation | 500 V | |
| Current draw incl. 5V loads | Max. 400 mA | |
| Current draw incl. 24V loads | Max. 600 mA | |
| Output voltage port X1 | ||
| Voltage 1 | 5 V, max. 150 mA | |
| Voltage 2 | +18 … +30 V DC, max. 400 mA (as with supply voltage) | |
| Electrical isolation | 500 V | |
| Ambient conditions | ||
| Ambient temperature | 0 °C … +60 °C | |
| Transport and storage temperature | -25 °C … +75 °C | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE | |
| CE | ||
| RoHS | Ja | |
| REACH | Ja | |
