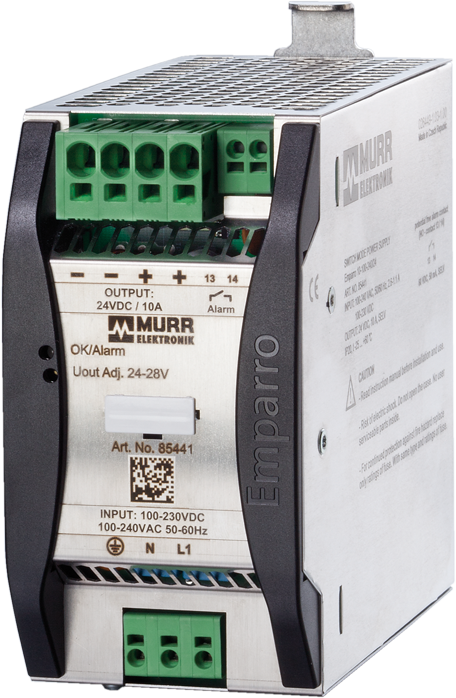

Emparro®1~ Switch Mode Power Supply – 10 A

INPUT: 85…265 V AC
OUTPUT: 24…28 V DC; 10 A
Order number: 85441

Emparro® Switch Mode Power Supply

Murrelektronik’s Emparro switch mode power supply units’ efficiency rate of up to 95% is impressive! This reduces power loss to a minimum and the low energy consumption helps save a lot of money.

Features

  • 150% Power Boost for at least 4 seconds
  • Metal housing with protective EMC characteristics
  • Derating only at 60°C
  • Slim design
  • High mains failure bridging time

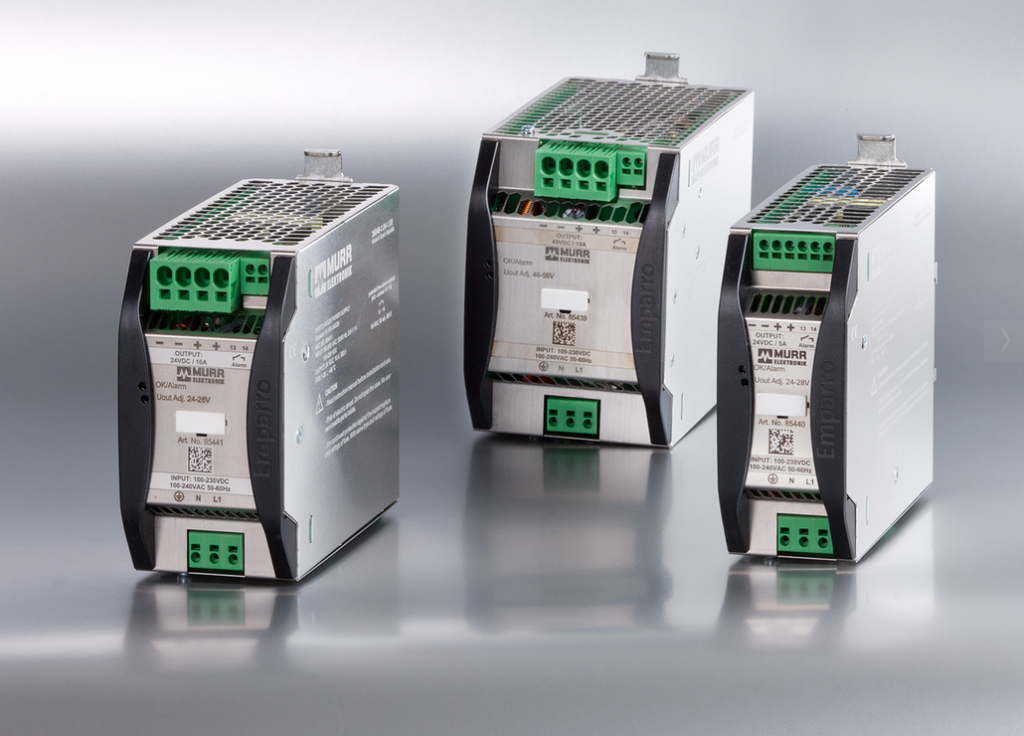

  • Seven different models provide solutions for many applications

Specifications

Input
Input voltage 85…265 V AC/90…250 V DC
Input current 2.6 A (100 V AC); 1.1 A (240 V AC)
Inrush current after 1 ms max. 13 A
Power factor 0.95 (230 V AC)
Frequency 50…60 Hz
Input fuse (internal) 6.3 A (T)
General data
Standards EN 60950-1, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
Relative humidity 5…95%, no condensation
Protection IP20
Efficiency 92.8% (110 V AC); 94.3% (230 V AC)
Dimensions H×W×D 123×65×138 mm
Connection Push-In spring clamp terminals
Mounting method DIN-rail mountable TH35 (EN 60715)
Temperature range -40…+60 °C, …+70 °C derating (storage temperature -40…+80 °C)
Output
Output voltage 24 V DC (SELV), ±1%; 24…28 V adjustable
Power Boost Iout N × 150% (min. 4 s)
Output current 10 A
Mains failure bridging time min. 30 ms (100 V AC); 10 A (24 V DC)
Ripple max. 50 mV eff/rms
Spikes max. 200 mV ss/pp
Unit protection short-circuit and overload protected
LED display LED (green): OK; LED (red): overload, overheating or short-circuit
Parallel usage/serial usage max. 5 units/max. 2 units
Commercial data
country of origin CZ
customs tariff number 85044090
EAN 4048879381499
eClass 27049002
Packaging unit 1
