New standard controllers!

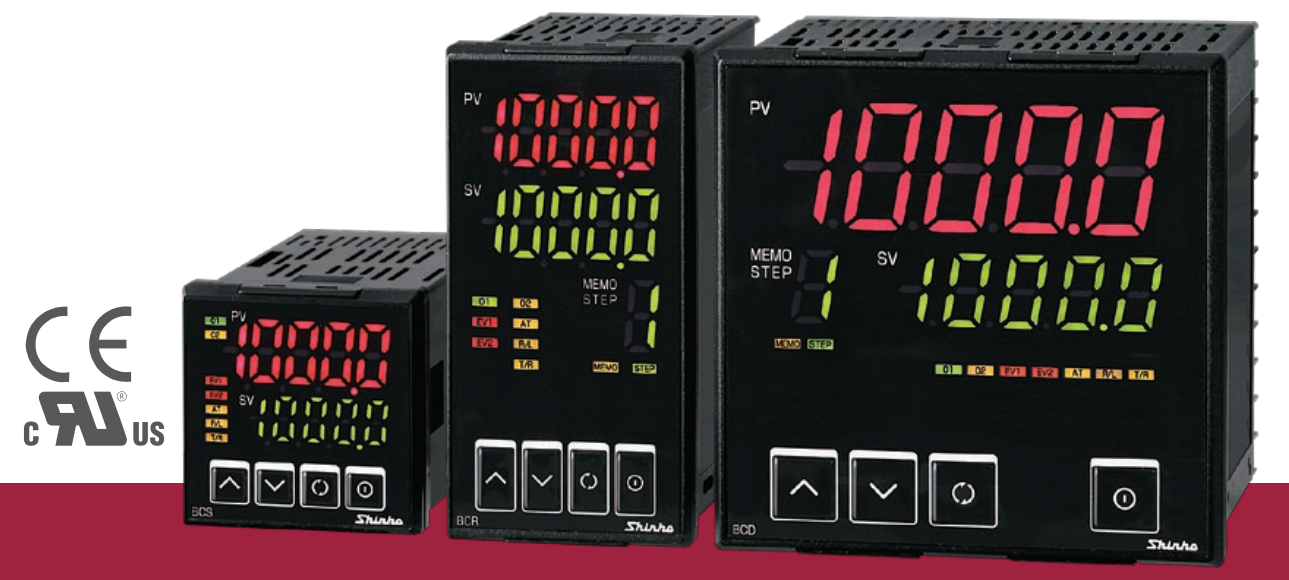

BCx2 series, Shinko’s digital indicating controllers are succession models of the JC series, with remarkable enhancement in operation, control performance, function, visibility, and compactness, etc.

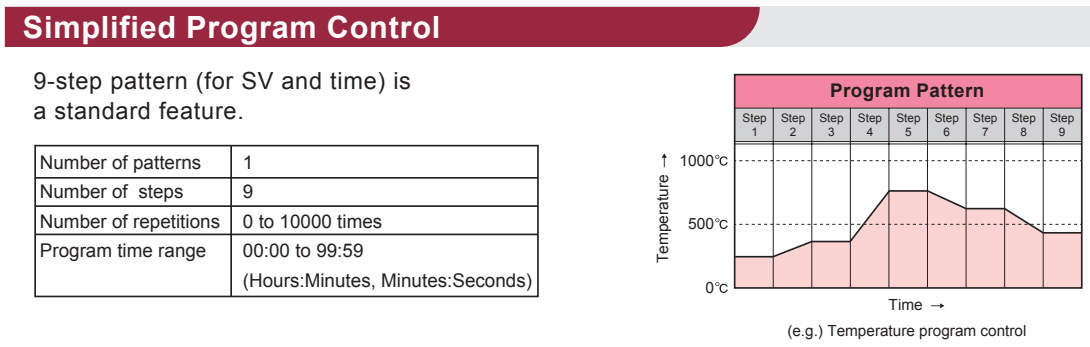

Simplified Program control!
The 9-step pattern is a standard feature.
Time signal output and Pattern end output can be selected in [Event output allocation].

– Number of patterns: 1
– Number of steps: 9

– Step SV: Scaling low limit value to Scaling high limit value
– Step time: 00:00 to 99:59 (Unit: Hours:Minutes, Minutes:Seconds)
– Wait value: 0 to Converted value of 20% of input span (or scaling span)
– Power restore action: Stop/Continue/Suspend (on hold)
– Program control start type: PV start/PVR start/SV start
– Number of repetitions: 0 to 10,000
Simplified converter function!
For DC current output type, the controller can be used as a converter.
Input signal is converted to insulated 4 to 20 mA DC, and outputted at the converted value.

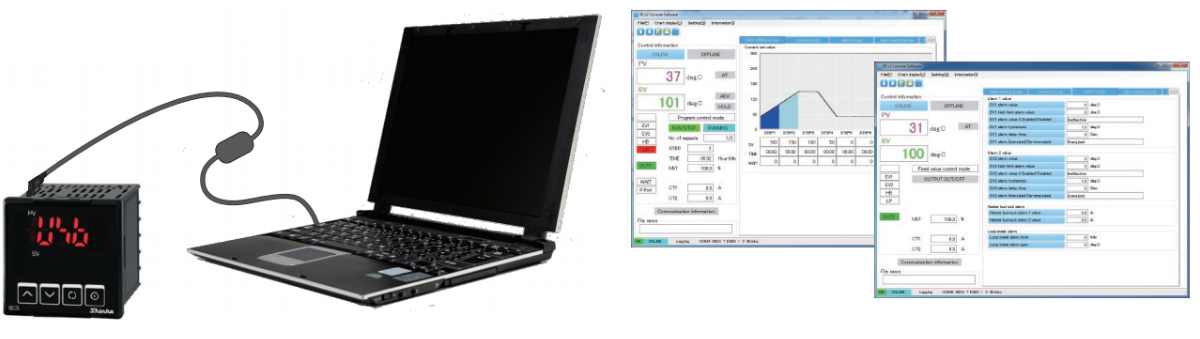

Simple settings from a PC
By connecting the BCx2 to a PC using the tool cable (sold separately), and by using dedicated software, various settings can be carried out. Wiring of BCx2 is not necessary as power to the BCx2 is supplied by PC via USB.

– A variety of Event Input/Output functions!

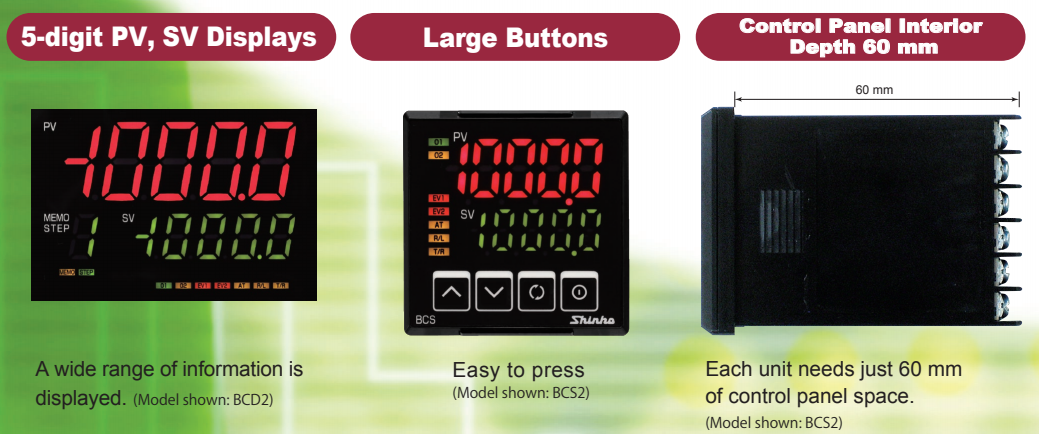

– Large, easy-to-view, 5-digit PV, SV Displays, useful for indicating a wide range of measurement ranges.
– Drip-proof/Dust-proof IP 66.
– A variety of Event Input/Output functions!
– PID function.
Compact, 60 mm-deep control panel interior!

Digital Indicating Controllers BCx2 series
