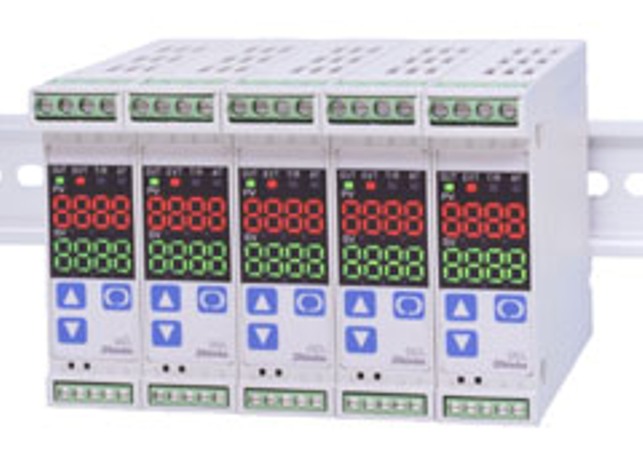

DCL-33A series, DIN Rail Mounted Indicating Controllers
Compact 22.5mm(W) x 75mm(H) x 100mm(D)
Controller can be easily installed on a DIN rail inside
the control panel.
Multi-input, High sampling speed
Total 18 types of input and 0.25 sec of high sampling
speed allow you to deal with various processes;
Thermocouple (10 types), RTD (2 types), DC current
(2 types), DC voltage (4 types)
Modbus protocol available
Shinko protocol, Modbus protocol (ASCII, RTU) are
selectable. Monitoring software is also provided.
Spec
Input Thermocouple, RTD, DC current, DC voltage
Accuracy Within 0.2% FS 1digit
Sampling period 0.25sec
Control action Auto-tuning PID, PI, PD, P, ON/OFF
Control output Relay contact, Non-contact voltage, DC current
Supply voltage 100 to 240V AC 50/60Hz, 24V AC/DC 50/60Hz
Options: Heater burnout alarm, Serial communication (RS-485)
