Cube20 | I/O control cabinet

IP20 for I/O terminals, direct connectivity to Cube67 modules.
Compact modules, up to 32 channels

Cube20 | Control Cabinet I/O

488 I/O Points in 90 Centimeters

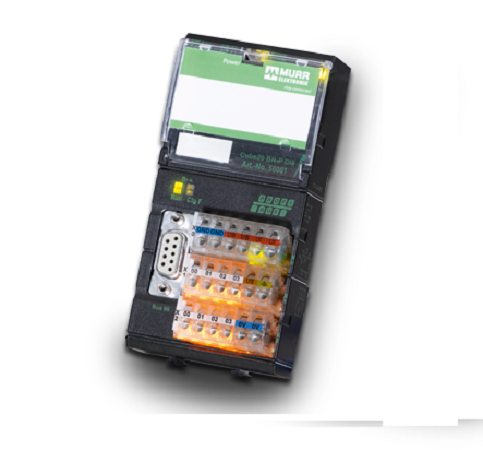

Cube20 is a centralized IP20 I/O station with modular function modules and the ability to connect direct to Cube67 modules.
The compact modules have a high signal installation of up to 32 channels in one module.
This significantly reduces the wiring efforts in the cabinet. Up to 488 I/O points in a width of only 90 centimeters helps to save space in the cabinet.

Specifications

Sensor supply US	24 V DC (EN 61131-2), max. 700 mA per module
Type	PNP (EN 61131-2)
Input filter	1 ms
Galvanic isolation	500 V DC between I/O and system electronics

CONNECTIONS

Fieldbus	Ethernet 10/100 Mbit/s; 2× RJ45 (female)
Sensor-system/actuator supply	4× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
Internal system connection	4× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
I/O ports	8× spring clamp plug-in terminals, max. 2.5 mm²

MODULE SUPPLY

Operating voltage	24 V DC (EN 61131-2)
Current consumption	max. 150 mA

GENERAL DATA

Protection	IP20
Mounting method	DIN-rail mountable (EN 60715)
Temperature range	0…+55 °C (storage temperature -20…+85 °C)
Dimensions H×W×D	117×56×47 mm

PROFINET

Addressing	DCP
Specification	V2.2, Conformance Class B

CUBE SYSTEM

I/O capacity	max. 1 024 Byte (Input), max. 1 024 Byte (Output)
Module capacity	max. 15
Machine Option Management	yes

PARAMETERIZATION

Terminal row X2 (4 channels)	Input
Terminal row X3 (4 channels)	Input

DIAGNOSTIC

Communication status	via LED and BUS
Diagnostic via LED	per module
Diagnostic via BUS	per module and channel
Monitoring – under voltage	yes
Monitoring – no voltage	no
Short-circuit and overload	yes

COMMERCIAL DATA

country of origin	DE
customs tariff number	85176200
EAN	4048879049481
eClass	27242604
Packaging unit	1

Link:
CUBE20

56006
