CONFiX cable conduit system

CONFiX SH Conduit clips are a one-piece location system to provide secure mounting points for corrugated conduit systems.
The clips are secured to their mounting position through a central mounting point with a hexagonal counter-bore.

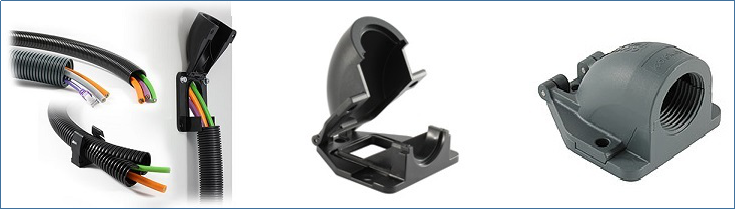

Bulkhead fitting for cable conduits 90° angled bulkhead fitting for routing corrugated cable conduits via conduit connector (FWS-A)  or direct pickup (FWS-B).

CONFiX FWS-A
CONFiX FWS-B

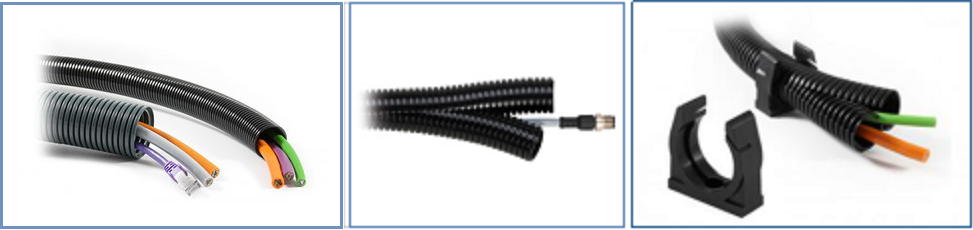

Corrugated cable conduits
Corrugated cable conduits for various application areas.

CONFiX WS-PA
CONFiX WS-PAL
CONFiX WS-PP

Split corrugated conduits for cables with connectors
Split cable conduit for routeing of pre-terminated cables.

CONFiX WS-WST

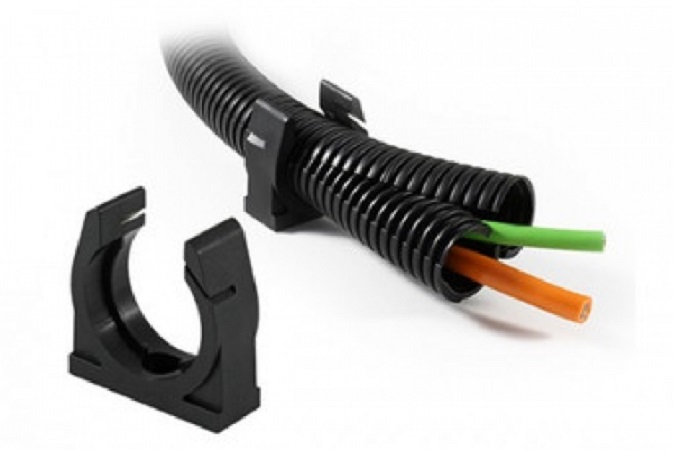

Cable conduit clips
Cable conduit clips for secure fixation of split cable conduits CONFiX WST.

CONFiX WS-SH

Specifications

  • Material: Polyamide
  • Colour: black (RAL 9005)
  • Flame class: UL94-V2
  • Temperature (°C): -40 – 140 °C
  • Properties: Halogen free, Silicone free
