ICOTEK – Split Flange Enclosure KEL-FG / KEL-FG-ER

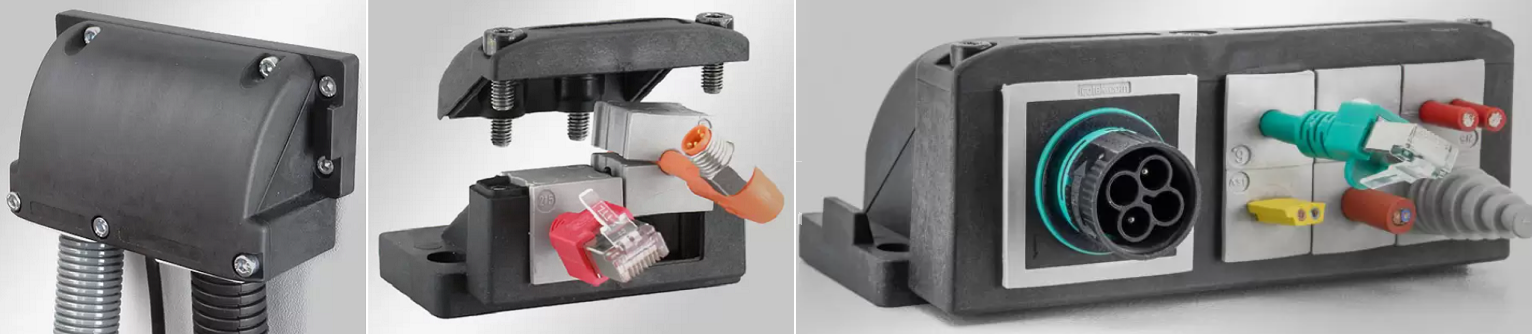

KEL-FG Split Flange Enclosure
for 90° Feed-In of Cables with Connectors / IP54 / UL Type 12
The multi cable transit frames KEL-FG are suited for installation, sealing and strain relief of cables with connectors and conduits at an angle of 90° to the panel, enclosure or machine wall.
The single-row versions KEL-FG-E are particularly suited for flat connectors. The small frames are ideal for applications with limited space.
Advantages & Benefits
– Installation at an angle of 90° to the wall
– Mechanical protection of the cable directly at the place of entry
– Protection against water spray and drips
– Warranty on pre-terminated cables remains
– Strain relief according to EN 62444
– High stability, vibration resistant
– Space-saving shape
– Greatly increased cable density when using double or quadruple grommets

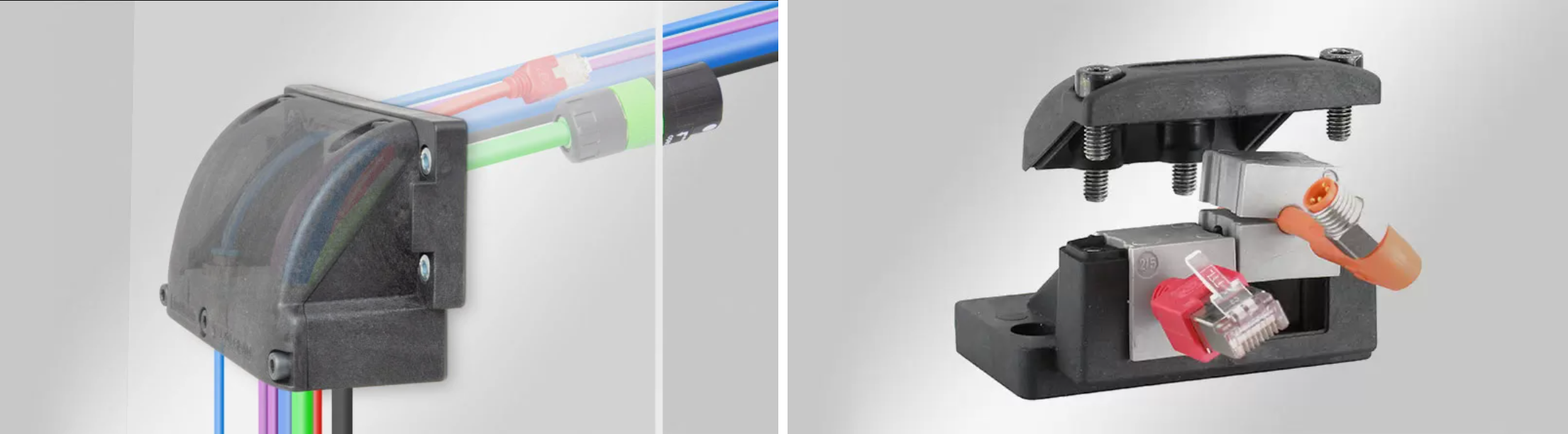

KEL-FG-ER Split Flange Enclosure
for 90° Feed-In of Cables with Connectors / IP65
The multi-cable transit frames KEL-FG-ER are suited for installation of cables with connectors and conduits at an angle of 90° to the cabinet, enclosure or machine wall, providing an IP65 rating and strain relief for cable diameters from 1 to 16 mm (single-hole grommets KT 1 – 15) and 16 to 35 mm (single-hole grommets KT 16 – 34).

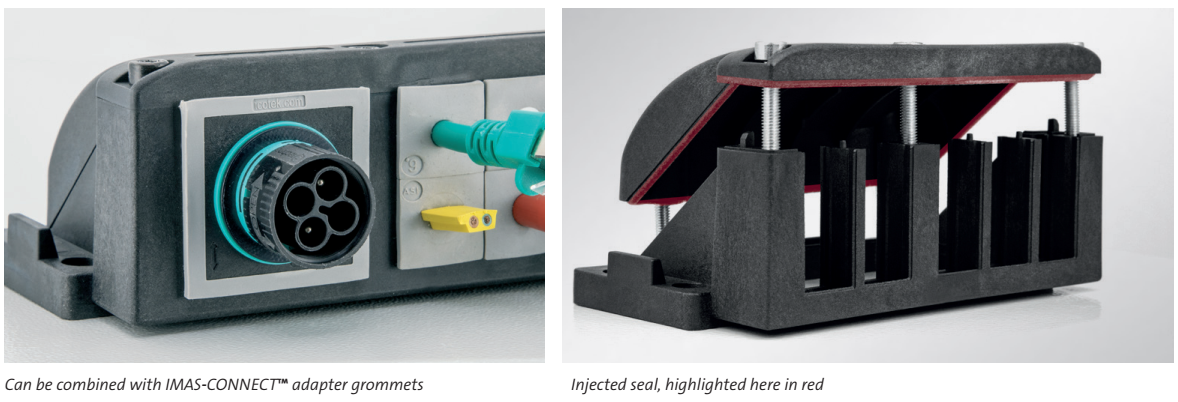

Due to the integrated seal on the flange enclosure, a protection class of up to IP65 is provided. An additional flat rubber gasket is included in the shipment.
Advantages & Benefits
– Integrated seal
– Protection class IP65 acc. to EN 60529
– Installation at an angle of 90° to the wall
– Mechanical protection of the cable directly at the place of entry
– Protection against water splashes and drips
– Ideal for cables with connectors (max. Ø 35 mm)
– Strain relief according to EN 62444

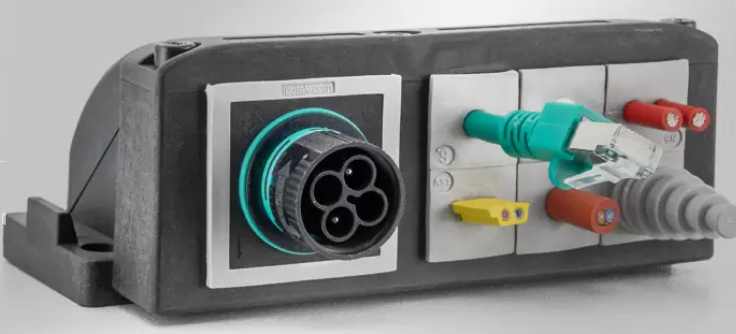

– High flexibility when using the IMAS-CONNECT™ system
General specifications
– Material: Polyamide
– IP rating (EN 60529): IP54, IP55, IP64, IP65
– Flame class: UL94-V0, self-extinguishing
– Operating temperature -40 C° to 140 C°
– Properties: vibration proof, UV-resistant, silicone free, halogen free

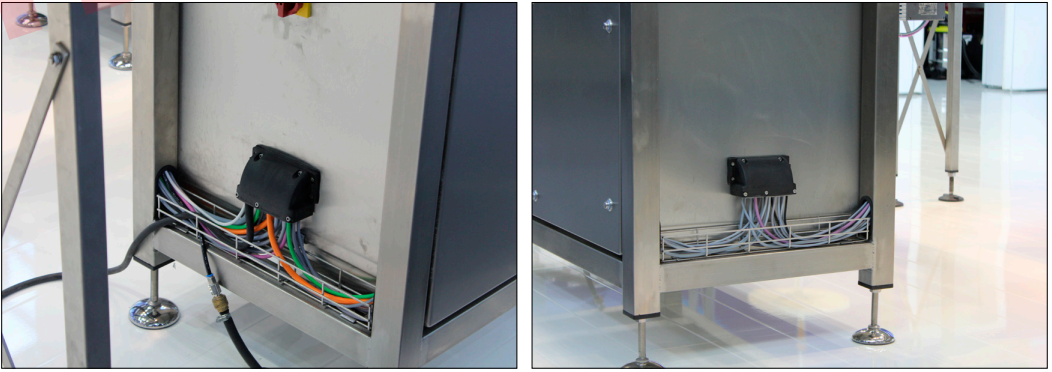

Image of applications
