Router with VPN feature

Industrial Router – VPN Feature
Order code: RUT905
Product of Lithuania

Router support VPN

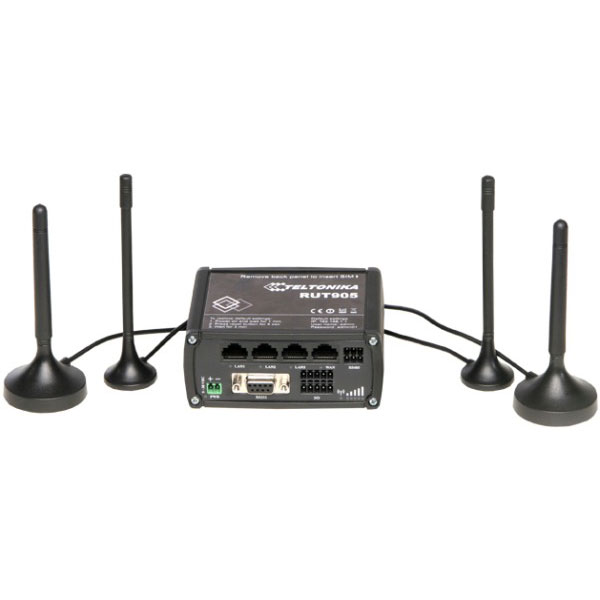

RUT905 is highly reliable and secure 3G router with I/O and RS232/RS485 for professional applications.

VPN feature supported: Ipsec, OpenVPN, L2TP. Can turn on/off data package, reboot the router… via SMS or call.

Features:
– Supply: 100-240 VAC (via adapter 100-240 VAC --> 9 VDC).
– 1 port WAN, 3 x LAN , Wifi Hostpot
– 3G, 2 SIM (for backup)
– 1 x RS-232, 1 x RS-485
– USB, microSD
– 3 x Input (2 DI, 1 AI), 2 x Output (1 open collector, 1 relay).
– DIN-rail install

RUT905 is part of the RUT9xx series of compact mobile routers with high speed wireless and Ethernet connections.
This router is ideal for people who‘d like to share their internet on the go, as it is not restricted by a cumbersome cable connection. Unrestricted, but not forgotten: the router still supports internet distribution via a broadband cable, simply plug it in to the wan port, set the router to a correct mode and you are ready to browse.

Specifications
UMTS
■ 850/900/AWS1700/1900/2100 MHz
■ HSDPA mode: 21 Mbps (Cat 14) downlink speed
■ HSUPA mode: 5.76 Mbps (Cat 6) uplink speed
■ UMTS mode: 384 kbps DL, 384 kbps UL
■ RX diversity antenna
GSM/GPRS/EDGE
■ 850/900/1800/1900 MHz
■ Power class 4 (2 W, 33 dBm) GSM/GPRS 850/900 MHz
■ Power class 1 (1 W, 30 dBm) GSM/GPRS 1800/1900 MHz
■ Power class E2 (0.5 W, 27 dBm) for EDGE 850/900 MHz
■ Power class E2 (0.4 W, 26 dBm) for EDGE 1800/1900 MHz
■ GSM: 14.4 kbps DL, 14.4 kbps UL
■ GPRS: 107 kbps DL, 85.6 kbps UL (class 33)
■ EDGE: 296 kbps DL, 236.8 kbps UL (class 33)
Ethernet
■ IEEE 802.3, IEEE 802.3u standards
■ 3 x LAN 10/100 Mbps Ethernet ports
■ 1 x WAN 10/100 Mbps Ethernet port
■ Supports auto MDI/MDIX
WiFi
■ IEEE 802.11b/g/n WiFi standards
■ 2×2 MIMO
■ AP and STA modes
■ 64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
■ 2.401 – 2.495 GHz WiFi frequency range
■ 20 dBm max WiFi TX power
■ SSID stealth mode and access control based on MAC address
Hardware
■ High performance 560 MHz CPU with 128 Mbytes of DDR2 memory
■ 2 pin industrial DC power socket
■ Attachable DIN rail adapter
■ 4 pin industrial socket for 2/4 wire RS485
■ DB9 socket for full-featured RS232
■ USB A socket for external devices
■ Reset/restore to default button
■ 2 x SMA for 3G, 2 x RP-SMA for WiFi antenna connectors
■ 4 x Ethernet LEDs, 1 x power LED
■ 1 x bi-color connection status LED, 5 x connection strength LEDs
■ 10 pin industrial socket for inputs/outputs:
■ 0 – 3 V digital input
■ 0 – 30 V digital galvanically isolated input
■ 0 – 24 V analog input
■ 30 V, 250 mA digital open collector output
■ 40 V, 4A SPST relay output
Software
■ OpenVPN, IPsec, GRE, L2TP, PPTP
■ Backup WAN
■ PPPoE
■ Dynamic DNS
■ SMS and ping reboot, periodic reboot
■ Status, configuration via SMS
■ Send/read SMS via HTTP POST/GET
■ Monitoring by SNMP, SNMP trap
■ System log to record the status of the router
■ VRRP
■ Web filter
■ Wireless hotspot with or without RADIUS server
■ SIM card switch controlled by signal, data limit, roaming
■ RS232/485 serial console
■ RS232/485 over IP
■ Input triggers for SMS, e-mail, SIM card, profile, WiFi, reboot, output
■ Configuration profiles
■ Firmware update from bootloader via WebUI
■ Restore point
Electrical, Mechanical & Environmental
■ Dimensions (H x W x D) 80 mm x 106 mm x 46 mm
■ Weight 280 g
■ Power supply 100 – 240 VAC -> 9 VDC wall adapter
■ Input voltage range 9 – 30 VDC
■ Power consumption < 7 W ■ Operating temperature -40 °C to 75 °C
■ Storage temperature -45 °C to 80 °C
■ Operating humidity 10 % to 90 % non-condensing
■ Storage humidity 5 % to 95 % non-condensing

Download link:
Router VPN – RUT905

RUT905
