NETLink® WLAN, PROFIBUS Ethernet WLAN gateway

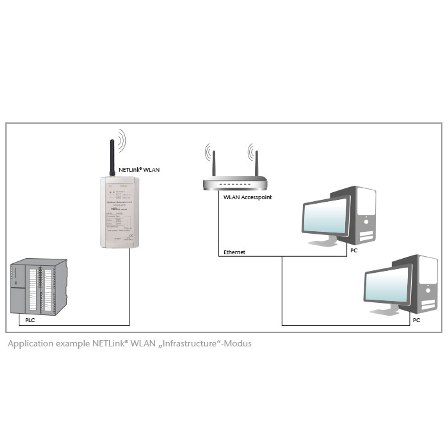

The NETLink® WLAN is an Ethernet Gateway with integrated WLAN function. As an alternative to the RJ45 socket, the required “Ad-hoc” or “Infrastructure” mode can be parameterized using the web interface. There is support for all standard wireless security methods, such as WEP, WPA, and WPA2. The NETLink® WLAN obtains its supply voltage from the CPU of the automation device or optionally from externally supplied DC 24 V.
Features:
• RFC 1006 (ISO on TCP)
• CPU-to-CPU communication (with S7-300* and S7-400*)
• WLAN port (802.11 b/g) with speeds of up to 54 Mbps can be enabled and disabled
• Support for all common S7 engineering tools
• Dynamic address assignment using DHCP
• Security functions for securing TCP/IP access
• PLC write protection feature can be enabled and disabled
• Up to 16 TCP connections
• Up to 32 MPI/PROFIBUS connections
• Easy configuration via web interface
• Web interface diagnostic page with a layout that is easy to follow and understand
• Variables can be monitored on a browser window
• Support for configuring slave parameters
• Electrical isolation for MPI/PPI/PROFIBUS
• MPI/PPI/PROFIBUS from 9.6 kbps to 12 Mbps
• For S7-200*, S7-300*, S7-400*
