Icotek News| New flange enclosure for 90° cable entry | New mounting options for EMC shile clamps

The flange enclosure KEL-FG enables the introduction, sealing and strain relief of cables with connectors and hoses at a 90 ° angle to the wall
It is now also available in new sizes.

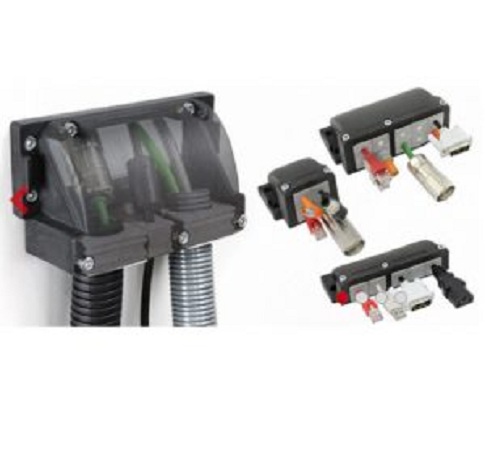

Flange enclosure for 90° cable entry | KEL-FG

– The flange enclosure KEL-FG enables the introduction, sealing and strain relief of cables with connectors and hoses at a 90 ° angle to the wall
– It is now also available in new sizes.

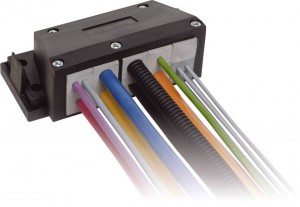

1. KEL-FG-A

The double-row flange enclosure KEL-FG-A is suitable on standard cut-outs 36 × 112 mm of 24-pin heavy industrial connectors

2. KEL-FG-B

Compact version for routing up to 16 lines and cables with or without preassembled connectors. Cut-out size 36 × 46 mm.

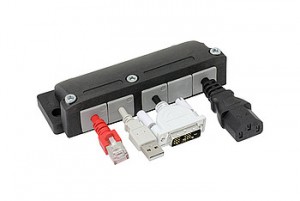

3. KEL-FG-E

Single-row version for routing up to 20 lines and cables with or without preassembled connectors. Perfect for flat connectors and small enclosures (e.g. for industrial PCs).

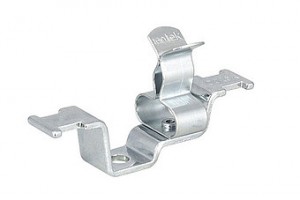

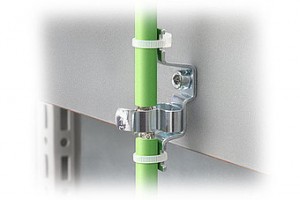

Multi shield clamps for busbars and metal sheets

Specifications
KEL-FG-A
IP rating: IP54
Material: Polyamide
Colour: black (RAL 9005)
Flame class: UL94-V0, self-extinguishing
Temperature (°C): -40 – 140 °C (static)
Properties: Halogen free, Silicone free, Anti-corrosive (V2A versions)
Mounting type: Screw type mounting, Snap-in with KEL-SNAP
Mounting height: 57.5 mm
KEL-FG-B
IP rating: IP54
Material: Polyamide
Colour: black (RAL 9005)
Flame class: UL94-V0, self-extinguishing
Temperature (°C): -40 – 140 °C (static)
Properties: Halogen free, Silicone free, Anti-corrosive (V2A versions)
Mounting type: Screw type mounting
Mounting height: 57.5 mm
KEL-FG-E
Specifications
Item Number: 42334
Brand:Icotek
Item Category:Cable Entries
Subcategory:Cable Entry Frames & Kits
Series:KEL-FG-E
Nominal Grommet Capacity:3 Small
Grommets Included:No
Cut-Out Dimensions (in):2.535 x 0.936 in
Cut-Out Dimensions (mm):65 x 24 mm
Angle:90 Degrees
Split Frame:Yes
IP Rating:IP54
Frame Material:Polyamide
RoHS:Yes
