The Cube67 + module can only operate on Cube67 +
Profibus + ProfiNet bus nodes.

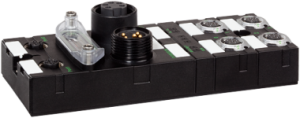

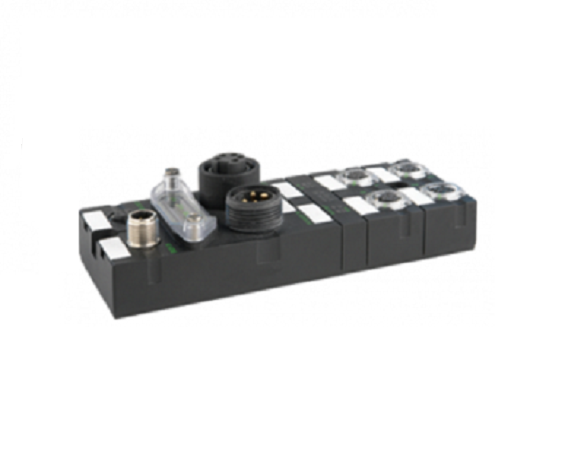

Cube67+
PROFIBUS DP
Housing fully potted. Cube67+ modules can only be operated on Cube67+, Profibus + ProfiNet bus nodes.
Specifications
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
|---|---|
| Sensor-system/actuator supply | 7/8″, 5-pole, 2× max. 8 A |
| Internal system connection | 4× M12 (female) A-coded, 6-pole, 2× max. 4 A |
| Operating voltage | 24 V DC (EN 61131-2) |
|---|---|
| Current consumption | max. 200 mA |
| Protection | IP67 |
|---|---|
| Mounting method | 2-hole screw mounting |
| Temperature range | 0…+55 °C (storage temperature -20…+75 °C) |

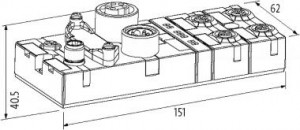

| Dimensions H×W×D | 151×62×40.5 mm |
| Addressing | DCP |
|---|---|
| Specification | V2.2, Conformance Class B |
| Module capacity | max. 32 |
|---|---|
| I/O capacity | max. 1 024 Byte (Input), max. 1 024 Byte (Output) |
| Machine Option Management | yes |
| No. of masterports (IO-Link) | max. 128 |
| Communication status | via LED and BUS |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Monitoring – under voltage | yes |
| Monitoring – no voltage | yes |
| Short-circuit and overload | yes |
| country of origin | DE |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879294027 |
| eClass | 27242608 |
| Packaging unit | 1 |
